Many, Many have been soldand tested on OPE and Arborist Forums
First one in the World to make and sell !!
Have been selling these since 2023 👍
Original plate's are needed for curved edges.
So diaphragm doesn't get sliced by sharp edges as in competitors plate.
No indexing needed as rivets do the locating for you
Please make sureyou order the right kit.
Look at old diaphragm bolt hole pattern or small cover hole pattern.
Shipped First Class w/ tracking

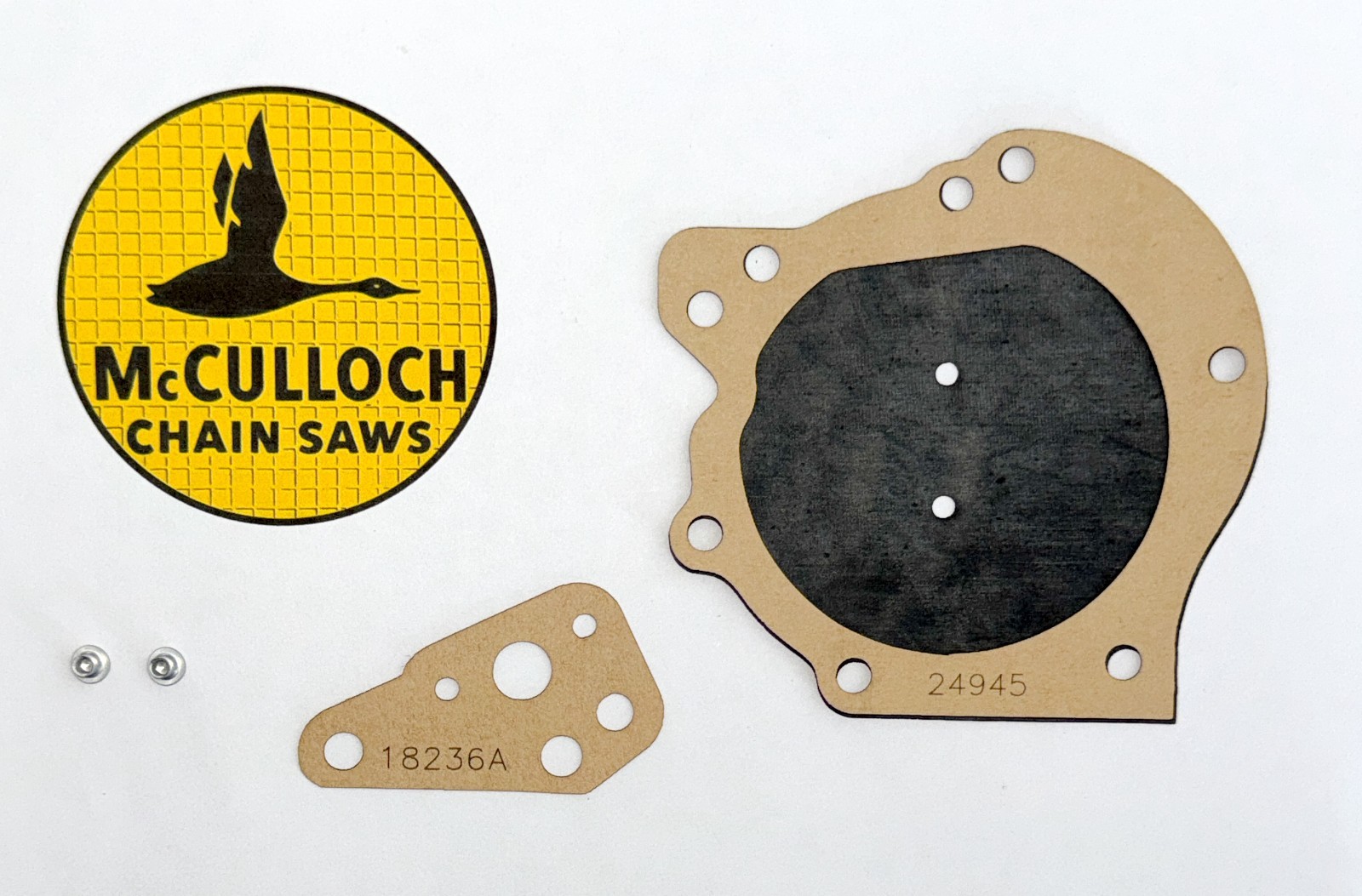

McCulloch Models 5-49, 7-55, 1225, 99 Carb Diaphragm Kit.
Nitrile Neoprene diaphragm .006 thick Laser Cut
Gaskets also laser cut
2 Aluminum rivets
***** TAKE PICTURES BEFORE YOU START PROJECT*****
Clean all metal surfaces
Use Loctite 380 on metal surfaces. It sets kind of quick like super glue with rubber in it.
Align everything back up, insert rivets for alignment make sure surfaces are tight to diaphragmDry 24hrs
I use a washer on rivet heads underneath so as not to effect the disc on diaphragm when flaring your process may vary.
Slowly tap rivet wall flaring the rivet, then curl it closed.
Ready to go (see pictures)
No need to get super tight or crush them as the rivets hold plates together only as to not fall apart.
Loctite will seal everything
Let all set again for 24 Hrs
Thanks for looking hope to have you as a customer !!
