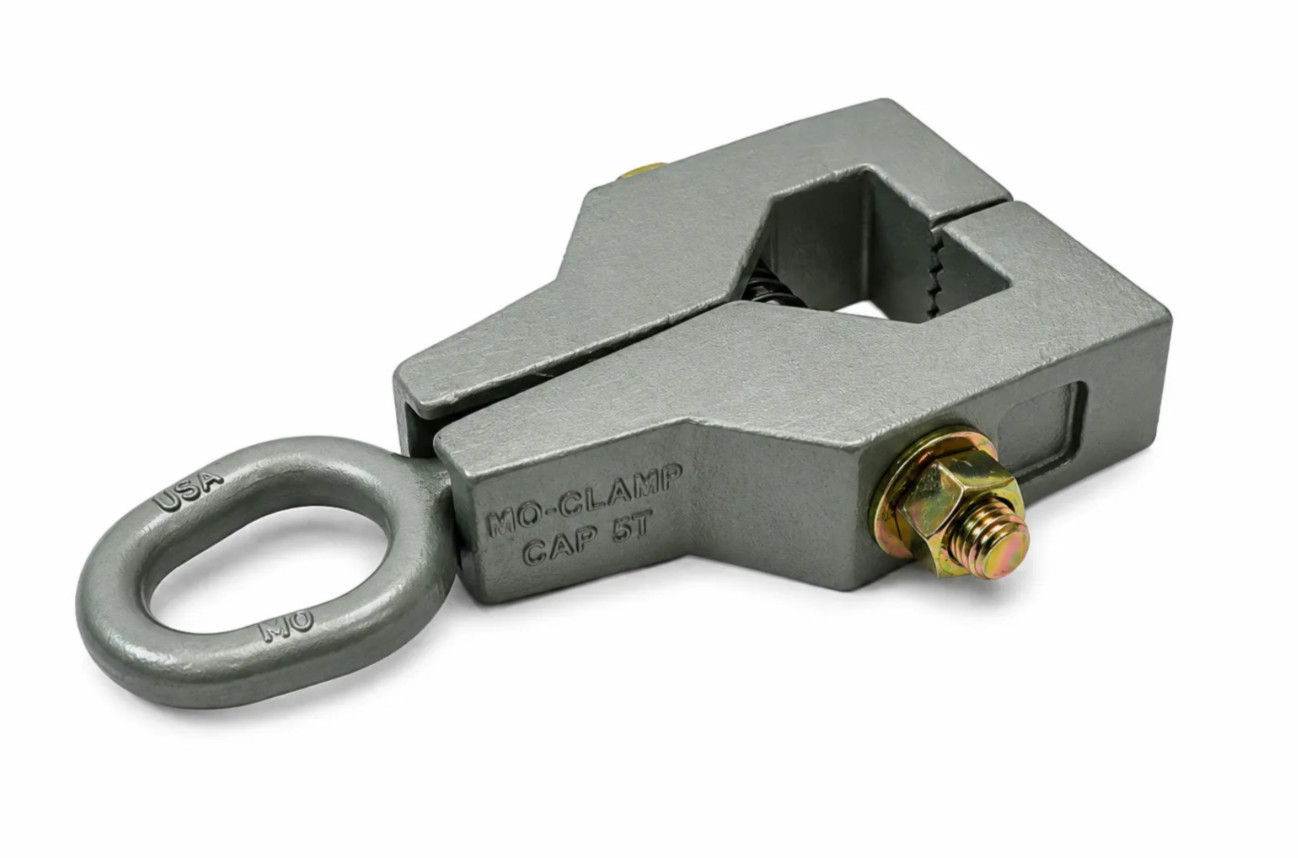

The MO-CLAMP 0680 Big Mouth Clamp is a heavy-duty, professional-grade self-tightening pulling clamp designed for collision repair, frame straightening, and difficult-to-access pulling applications.
The Big Mouth Clamp features an extra-large throat opening, making it an excellent solution when additional clearance is needed to reach around flanges, frame sections, and other obstructions.
MO-CLAMP’s original wedge design provides self-tightening action as pulling force is applied. The aggressive cross-hatch tooth design provides a secure grip, while the spring-loaded opening makes positioning and attachment easier.
With a 5-ton pulling capacity, 2-1/4” high throat clearance, and heat-treated steel construction, the 0680 is built for demanding professional collision repair MO-CLAMP Big Mouth Clamp
5-ton pulling capacitySelf-tightening designExtra-large throat openingExcellent for hard-to-reach areasOriginal MO-CLAMP wedge designCross-hatch teeth for aggressive grippingSpring-loaded for easy opening and positioningHeat-treated steel constructionProfessional collision repair toolMade in USASpecifications
Brand: MO-CLAMP
Part Number: 0680
Product: Big Mouth Clamp
Type: Auto Body / Frame Pulling Clamp
Capacity: 5 Tons (10,000 lbs.)
Gripping Surface: 1-3/4” Wide x 1” Deep
Throat Clearance: 2-1/4” High x 1-1/4” Deep
Overall Length: 9-1/2”
Weight: 8 lbs.
Material: Heat-Treated Steel
Operation: Self-Tightening
Country/Region of Manufacture: United States
Condition: New
Replacement Parts
#9701 – Wedge
#5253 – Nut, Bolt, Spring & Washer
Applications
Ideal for:
- Collision repair
- Frame straightening
- Hard-to-reach pulling areas
- Areas requiring a large clamp opening
- Flange pulling
- Auto body straightening
- Unibody repair
- Structural repair
- Vehicle restoration
- Professional body shops and collision centers
The MO-CLAMP 0680 Big Mouth Clamp provides the additional throat clearance needed for difficult pulling locations while delivering up to 5 tons of professional pulling capacity.
Item Specifics
Brand: MO-CLAMP
Manufacturer Part Number: 0680
Type: Auto Body Pulling Clamp
Product Type: Big Mouth Clamp
Capacity: 5 Ton
Material: Heat-Treated Steel
Gripping Surface: 1-3/4” x 1”
Throat Clearance: 2-1/4” High x 1-1/4” Deep
Overall Length: 9-1/2 in.
Features: Self-Tightening, Spring-Loaded, Cross-Hatch Teeth
Application: Collision Repair / Frame Straightening
Country/Region of Manufacture: United States
Condition: New
Known Part Numbers 0680,MOC0680 MCL0680 PU0680
