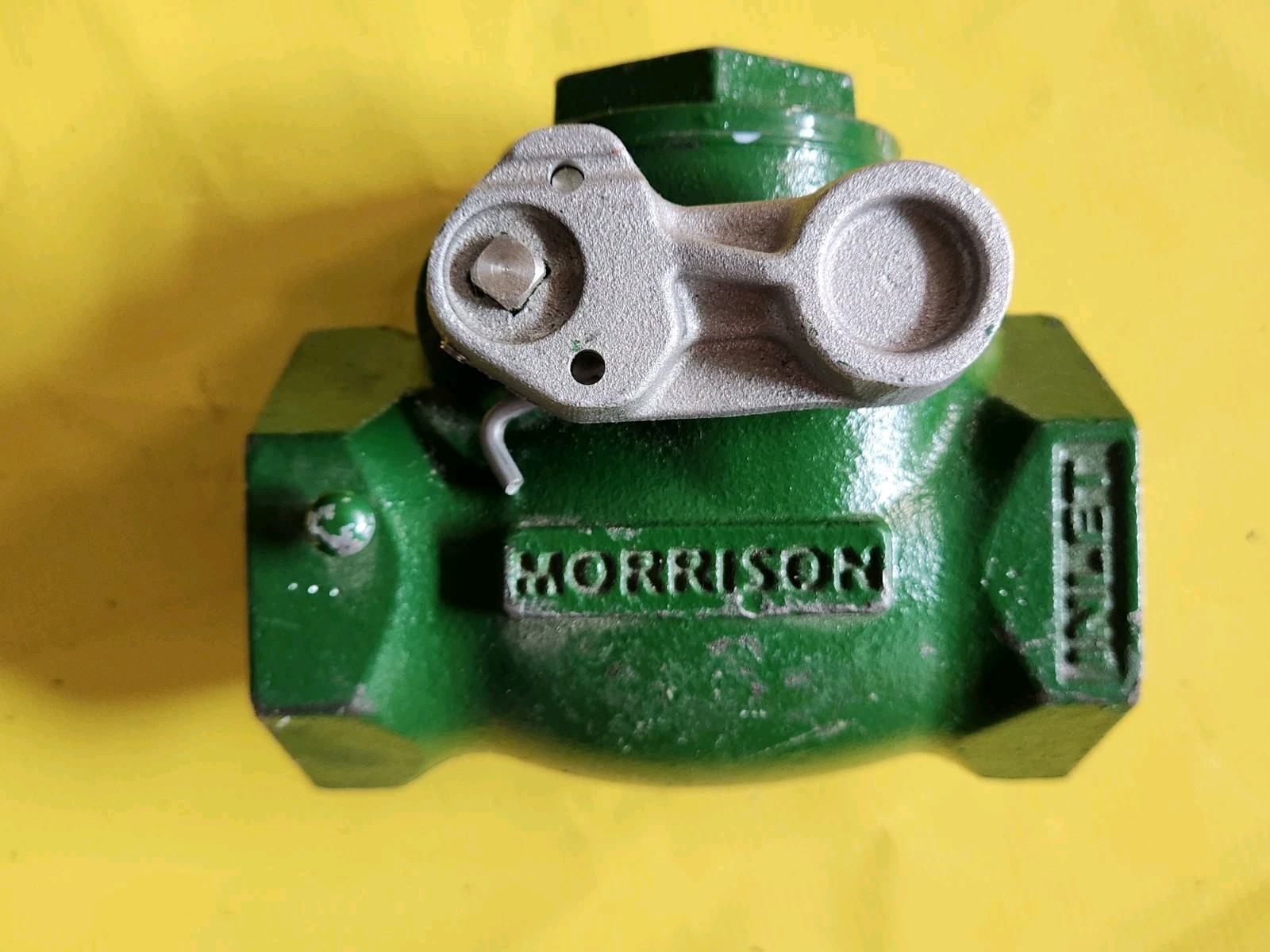

Morrison Bros. 346DI-0400 AV External Emergency Valve
Heavy-duty external emergency shutoff valve designed for installation at the outlet of an aboveground storage tank or within a liquid-transfer line. The spring-actuated valve is designed to shut off product flow if the fusible-link mechanism is released during a fire.
Product Information:
Brand: Morrison Bros.
Manufacturer: Morrison Bros. Co.
Model: 346DI
Part Number: 346DI-0400 AV
Valve Size: 1-1/2 Inch
Connection Type: Female NPT Threaded
Valve Type: External Emergency Shutoff Valve
Body Material: Ductile Iron
Poppet Material: Ductile Iron
Gasket Material: PTFE / Teflon
Stem Seal: PTFE-Encapsulated Fluorocarbon
Maximum Pressure: 200 PSI Cold, Non-Shock W.O.G.
Fusible Link Temperature: 165°F Standard
Color: Green
Approximate Manufacturer Weight: 4.5 lb . Quantity: 1
The valve appears new and unused but has cosmetic paint wear, scratches, scuffs, dust, and storage marks. No original retail box or additional accessories are included unless shown in the photos. Box -I-1
