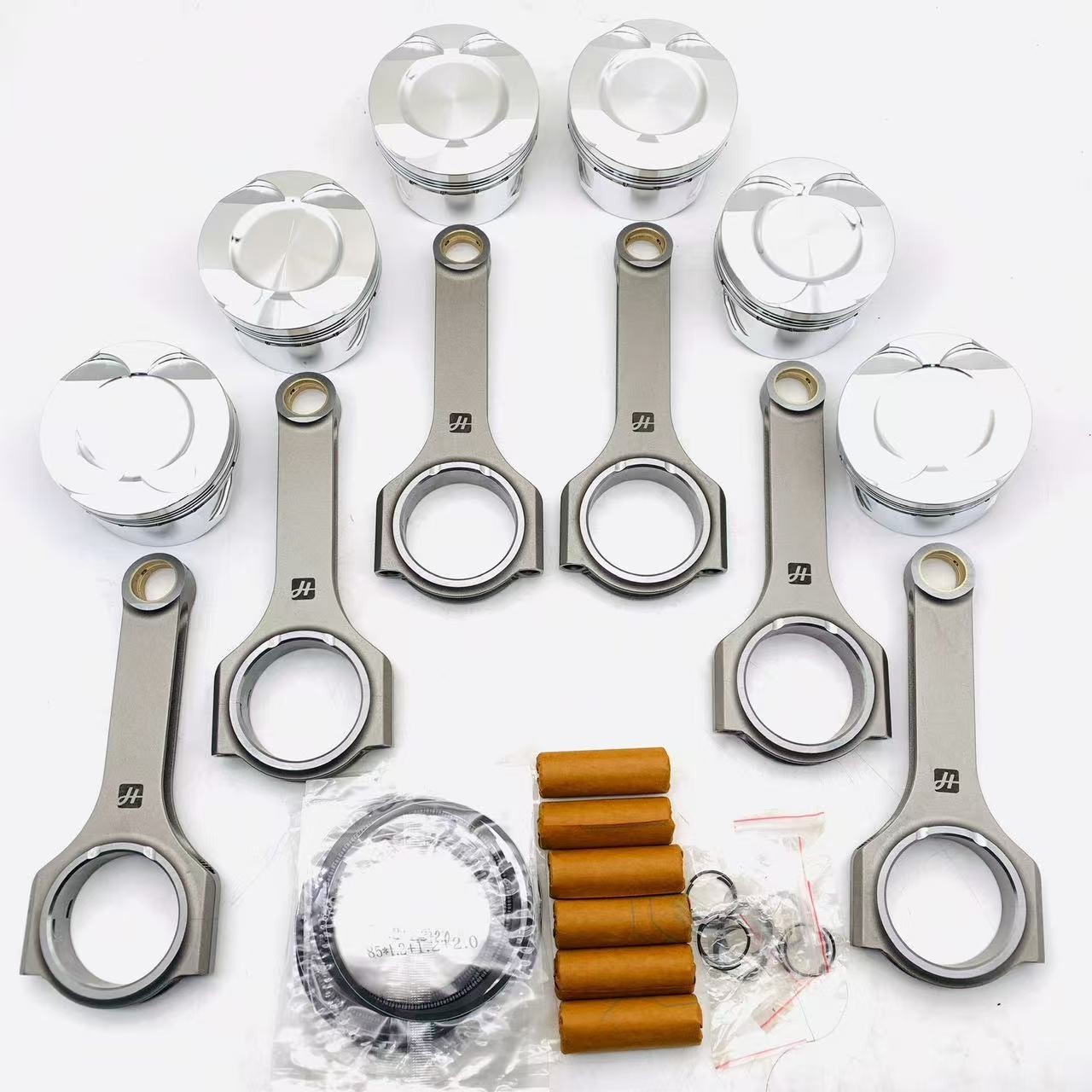

N52 Forged Pistons Forged Connecting Rods Kit For BMW N52B30 Z4 E64 E87 E90 For Sale

Product Specifications

Forged Connecting Rods:

• Material: 4340 Alloy
• Shape: H-Beam
• Bolt Size: 3/8″
• Length (C-C): 147.35mm
• Big End Diameter: 53.63mm
• Pin End Diameter: 20.00mm
• Big End Width: 20.90mm
• Pin End Width: 20.90mm(Tapered)

Forged Pistons:

• Material: 4032 Alloy
• Bore Dia.: 85.00
• Pin Size: 20.00mm
• Compression Ratio: 9.3:1
• Compression Height: 30.10mm
• Overall Height: 50.10mm
• Set of 6

Technical Features of Hench Performance Connecting Rods

• Two-Piece forging for great strength
• Shot Peening for improved fatigue life
• Bronze bushing with radial groove.
• Magnaflux Inspection guarantees that the consistency of the forged material meets our high-quality standard
• Multi Stages Heat Treatment for maximum strength, dimensional stability, and fatigue life.
• CNC machining for superior tolerances, precise as much as 0.005mm
• Optimal balancing for weight matched sets of ± 1gram

Technical Features of Hench Performance Forged Pistons

• Pin Oiling, for better lubrication of Piston Pins and significantly extend lifetime at super high temperature and rpm.
• CNC machining for superior tolerances, precise as much as 0.005mm
• Mass center optimized.
• Optimal balancing for weight matched sets of ± 0.5gram

Contains:

• Piston x 6
• Piston Pin x 6
• Pin Lock x 12
• Piston Ring x 6
• Connecting Rod x 6
• Bolt x 12

Application:

BMW N52B30

2006-2007 E90/E92/E93 325i, 325xi — U.S. and Canada only
2006-2007 E60/E61 525i, 525xi — U.S. and Canada only
2006-2008 E85 Z4 3.0i — U.S. and Canada only
2008-2011 E82/E88 125i
2008-2010 E60/E61 528i, 528xi — U.S. and Canada only
2009-2010 E84 X1 xDrive25i
2007-2013 E90/E91/E92/E93 328i, 328xi — U.S. and Canada only
2008-2013 E82/E88 128i — U.S. and Canada only
2010-2011 F10 528i
2004-2007 E63/E64 630i
2005-2007 E90/E92/E93 330i, 330xi
2005-2008 E65/E66 730i
2005-2009 E60/E61 530i, 530xi
2009-2015 F01 730i
2008-2011 E89 Z4 sDrive30i
2009-2011 E84 X1 xDrive28i
2009-2012 E87 130i
2010-2011 F25 X3 28i
2005-2008 E85/E86 Z4 3.0si
2006-2009 E87 130i
2006–2010 E83 X3 3.0si
2006-2010 E70 X5 3.0si, xDrive30i
2007-2010 E63/E64 630i
2007-2013 E90/E92/E93 330i, 330xi
