N52 Super Strong Neodymium Magnets Discs Collection
General Specifications:Plating/Coating: Ni-Cu-Ni (Nickel)Magnetization Direction: Axial (Poles on Flat Ends)Max Operating Temp: 176ºF (80ºC)
Dimensions:Discs1mm diameter x 1mm thickness grade N52Approx.1/32" diameter x 1/32" thickness
Cylinders1mm diameter x 1.5mm thickness grade N52Approx.1/32" diameter x 1/16" thickness
Cylinders1mm diameter x 2mm thickness grade N52Approx.1/32" diameter x 5/64" thickness

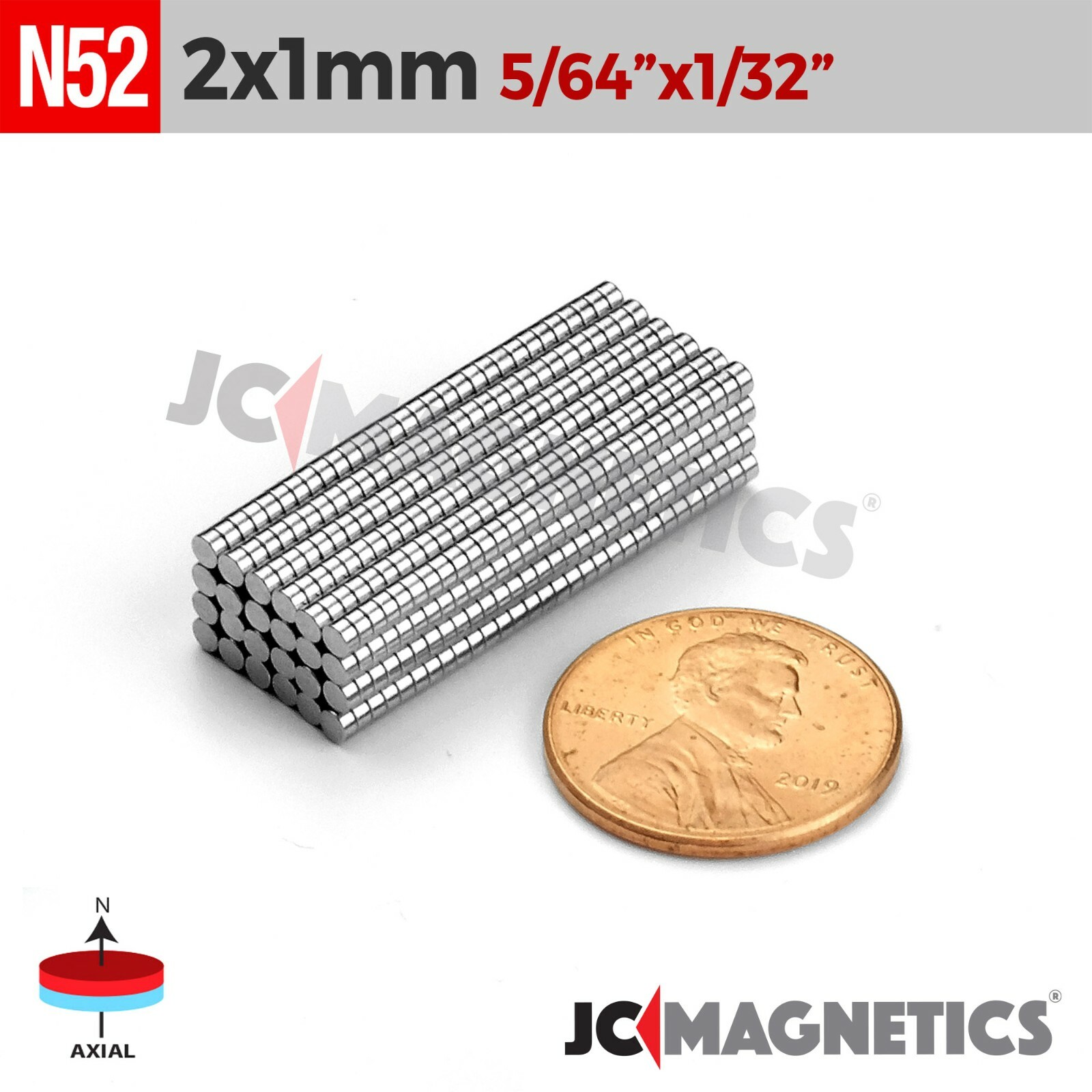

Discs2mm diameter x 1mm thickness grade N52Approx.5/64" diameter x 1/32" thickness-Pull force approx. 0.14LB
Discs 2mm diameter x 1.5mm thickness grade N52Approx.5/64" diameter x 1/16" thickness-Pull force approx. 0.18LB
Cylinders2mm diameter x 2mm thickness grade N52Approx.5/64" diameter x 5/64" thickness-Pull force approx. 0.2LB
Cylinders2mm diameter x 3mm thickness grade N52Approx.5/64" diameter x 1/8" thickness-Pull force approx. 0.3LB
Discs3mm diameter x 1mm thickness grade N52Approx.1/8" diameter x 1/32" thickness-Pull force approx. 0.25LB
Discs3mm diameter x 1.5mm thickness grade N52Approx.1/8" diameter x 1/16" thickness-Pull force approx. 0.4LB
Discs3mm diameter x 2mm thickness grade N52Approx.1/8" diameter x 5/64" thickness-Pull force approx. 0.45LB
Cylinders3mm diameter x 3mm thickness grade N52Approx.1/8" diameter x 1/8" thickness-Pull force approx. 0.6LB
Cylinders3mm diameter x 6mm thickness grade N52Approx.1/8" diameter x 1/4" thickness-Pull force approx. 0.94LB
Discs4mm diameter x 0.5mm thickness grade N52Approx.5/32" diameter x 1/64" thickness-Pull force approx. 0.2LB
Discs4mm diameter x 1mm thickness grade N52Approx.5/32" diameter x 1/32" thickness-Pull force approx. 0.45LB
Discs4mm diameter x 1.5mm thickness grade N52Approx.5/32" diameter x 1/16" thickness-Pull force approx. 0.71LB
Discs4mm diameter x 2mm thickness grade N52Approx.5/32" diameter x 5/64" thickness-Pull force approx. 0.94LB
Discs4mm diameter x 3mm thickness grade N525/32" diameter x 1/8" thickness-Pull force approx. 1.25LB
Cylinders4mm diameter x 4mm thickness grade N525/32" diameter x 5/32" thickness-Pull force approx. 1.47LB
Cylinders4mm diameter x 8mm thickness grade N525/32" diameter x 1/3" thickness-Pull force approx. 1.79LB Discs5mm diameter x 0.5mm thickness grade N52Approx.3/16" diameter x 1/64" thickness-Pull force approx. 0.25LB
Discs5mm diameter x 1mm thickness grade N52Approx.3/16" diameter x 1/32" thickness-Pull force approx. 0.5LB
Discs5mm diameter x 1.5mm thickness grade N52Pull force approx. 0.95LB
Discs5mm diameter x 2mm thickness grade N52Pull force approx. 1.29LB
Discs5mm diameter x 3mm thickness grade N52Approx.3/16" diameter x 1/8" thickness-Pull force approx. 1.6LB
Discs5mm diameter x 4mm thickness grade N52Approx.3/16" diameter x 5/32" thickness-Pull force approx. 2.1LB
Cylinders5mm diameter x 5mm thickness grade N52Approx.3/16" diameter x 3/16" thickness-Pull force approx. 2.5LB
Cylinders5mm diameter x 10mm thickness grade N52Approx.3/16" diameter x 3/8" thickness-Pull force approx. 2.79LB
Discs6mm diameter x 0.5mm thickness grade N52Approx.1/4" diameter x 1/64" thickness-Pull force approx. 0.3LBDiscs6mm diameter x 1mm thickness grade N52Approx.1/4" diameter x 1/32" thickness-Pull force approx. 0.6LB
Discs6mm diameter x 1.5mm thickness grade N52Approx.1/4" diameter x 1/8" thickness-Pull force approx. 1.1LB
Discs6mm diameter x 2mm thickness grade N52Approx.1/4" diameter x 5/32" thickness-Pull force approx. 1.4LB
Discs6mm diameter x 3mm thickness grade N52Approx.1/4" diameter x 1/8" thickness-Pull force approx. 2.2LB
Discs6mm diameter x 4mm thickness grade N52Approx.1/4" diameter x 5/32" thickness-Pull force approx. 3.0LB
Cylinders6mm diameter x 6mm thickness grade N52Approx.1/4" diameter x 1/4" thickness-Pull force approx. 3.2LB
Cylinder6mm diameter x 10mm thickness grade N52Approx.1/4" diameter x 3/8" thickness-Pull force approx. 3.8LB
Discs7mm diameter x 1mm thickness grade N52Approx.9/32" diameter x 1/32" thickness-Pull force approx. 0.8LB
Discs7mm diameter x 2mm thickness grade N52Approx.9/32" diameter x 5/32" thickness-Pull force approx. 1.8LB
Discs7mm diameter x 3mm thickness grade N52Approx.9/32" diameter x 1/8" thickness-Pull force approx. 2.9LB
Discs7mm diameter x 4mm thickness grade N52Approx.9/32" diameter x 5/32" thickness-Pull force approx. 3.93LB
Discs8mm diameter x 0.5mm thickness grade N52Approx.1/3" diameter x 1/64" thickness-Pull force approx. 0.5LB
Discs8mm diameter x 1mm thickness grade N52Approx.1/3" diameter x 1/32" thickness-Pull force approx. 1.1LB
Discs8mm diameter x 1.5mm thickness grade N52Approx.1/3" diameter x 1/16" thickness-Pull force approx. 1.6LB
Discs8mm diameter x 2mm thickness grade N52Approx.1/3" diameter x 5/64" thickness-Pull force approx. 2.2LB
Discs8mm diameter x 3mm thickness grade N52Approx.1/3" diameter x 1/8" thickness-Pull force approx. 3.4LB
Discs8mm diameter x 4mm thickness grade N52Approx.1/3" diameter x 5/32" thickness-Pull force approx. 4.75LB
Discs8mm diameter x 8mm thickness grade N52Pull force approx. 6.84LB
Discs9mm diameter x 1mm thickness grade N52Approx.23/64" diameter x 1/32" thickness-Pull force approx. 1.2LB
Discs9mm diameter x 2mm thickness grade N52Approx.23/64" diameter x 5/64" thickness-Pull force approx. 2.6LB
Discs9mm diameter x 3mm thickness grade N52Approx.23/64" diameter x 1/8" thickness-Pull force approx. 4.3LB
Discs10mm diameter x 0.5mm thickness grade N52Approx.3/8" diameter x 1/64" thickness-Pull force approx. 0.4LB
Discs10mm diameter x 1mm thickness grade N52Approx.3/8" diameter x 1/32" thickness-Pull force approx. 1.3LB
Discs10mm diameter x 1.5mm thickness grade N52Approx.3/8" diameter x 1/16" thickness-Pull force approx. 2.62LB
Discs10mm diameter x 2mm thickness grade N52Approx.3/8" diameter x 5/64" thickness-Pull force approx. 3.1LB
Discs10mm diameter x 3mm thickness grade N52Approx.3/8" diameter x 1/8" thickness-Pull force approx. 5.1LB
Discs10mm diameter x 4mm thickness grade N52Approx.3/8" diameter x 5/32" thickness-Pull force approx. 6.4LB
Discs10mm diameter x 5mm thickness grade N52Approx.3/8" diameter x 3/16" thickness-Pull force approx. 8.02LB
Discs10mm diameter x 10mm thickness grade N52Pull force approx. 10.99LB
Cylinders10mm diameter x 15mm thickness grade N52Approx.3/8" diameter x 5/8" thickness-Pull force approx. 11.5LB
Discs12mm diameter x 0.5mm thickness grade N52Approx.1/2" diameter x 1/64" thickness Discs12mm diameter x 1mm thickness grade N52Approx.1/2" diameter x 1/32" thickness-Pull force approx. 1.8LB
Discs12mm diameter x 1.5mm thickness grade N52Approx.1/2" diameter x 1/16" thickness-Pull force approx. 3.32LB
Discs12mm diameter x 2mm thickness grade N52Approx.1/2" diameter x 5/64" thickness-Pull force approx. 4.2LB
Discs12mm diameter x 3mm thickness grade N52Approx.1/2" diameter x 1/8" thickness-Pull force approx. 6.4LB
Discs12mm diameter x 4mm thickness grade N52Approx.1/2" diameter x 5/32" thickness-Pull force approx. 8.6LB
Discs12mm diameter x 6mm thickness grade N52Approx.1/2" diameter x 1/4" thickness-Pull force approx. 10.5LBCylinders12mm diameter x 12mm thickness grade N52Approx.1/2" diameter x 1/2" thickness-Pull force approx. 15.5LB
Discs15mm diameter x 0.5mm thickness grade N52Approx.5/8" diameter x 1/64" thickness
Discs15mm diameter x 1mm thickness grade N52Approx.5/8" diameter x 1/32" thickness-Pull force approx. 2.1LB
Discs15mm diameter x 2mm thickness grade N52Approx.5/8" diameter x 5/64" thickness-Pull force approx. 5.2LB
Discs15mm diameter x 3mm thickness grade N52Approx.5/8" diameter x 1/8" thickness-Pull force approx. 8.5LB
Discs15mm diameter x 4mm thickness grade N52Approx.5/8" diameter x 5/32" thickness-Pull force approx. 11.8LB
Discs18mm diameter x 2mm thickness grade N52Approx. 45/64" diameter x 5/64" thickness-Pull force approx. 6.5LB
Discs18mm diameter x 3mm thickness grade N52Approx. 45/64" diameter x 1/8" thickness-Pull force approx. 10.1LB
Discs20mm diameter x 0.5mm thickness grade N52Approx. 25/32" diameter x 1/64" thickness-Pull force approx. 1.1LB
Discs20mm diameter x 1mm thickness grade N52Approx. 25/32" diameter x 1/32" thickness-Pull force approx. 3.3LB
Discs20mm diameter x 2mm thickness grade N52Approx. 25/32" diameter x 5/64" thickness-Pull force approx. 7.6LB
Discs20mm diameter x 3mm thickness grade N52Approx. 25/32" diameter x 1/8" thickness-Pull force approx. 10.9LB
Discs20mm diameter x 5mm thickness grade N52Approx. 25/32" diameter x 3/16" thickness-Pull force approx. 21.32LB
Discs20mm diameter x 10mm thickness grade N52Approx. 25/32" diameter x 25/64" thickness-Pull force approx. 33.80LB
Discs25mm diameter x 1mm thickness grade N52Approx.1" diameter x 1/32" thickness-Pull force approx. 4.95LB
Discs25mm diameter x 2mm thickness grade N52Approx.1" diameter x 5/64" thickness-Pull force approx. 9.5LB
Discs25mm diameter x 3mm thickness grade N52Approx.1" diameter x 1/8" thickness-Pull force approx. 13.5LB
Discs25mm diameter x 5mm thickness grade N52Approx.1" diameter x 3/16" thickness-Pull force approx. 27LB
Discs25mm diameter x 10mm thickness grade N52Approx.1" diameter x 3/8" thickness-Pull force approx. 46.80LB
Discs25mm diameter x 20mm thickness grade N52Approx.1" diameter x 25/32" thickness-Pull force approx. 65LB
Discs30mm diameter x 3mm thickness grade N52Approx. 13/16" diameter x 1/8" thickness-Pull force approx. 16.5LB
Discs30mm diameter x 10mm thickness grade N52Approx. 13/16" diameter x 3/8" thickness-Pull force approx. 58.40LB
Discs32mm diameter x 1.5mm thickness grade N52Approx. 1.26" diameter x 1/16" thickness-Pull force approx. 8.30LB
Discs38mm diameter x 1.5mm thickness grade N52Approx. 1.5" diameter x 1/16" thickness-Pull force approx. 8.80LB
Discs38mm diameter x 3mm thickness grade N52Approx. 1.5" diameter x 1/8" thickness-Pull force approx. 22.89LB
Discs40mm diameter x 6mm thickness grade N52Approx. 1.57" diameter x 1/4" thickness-Pull force approx. 41.5LBDiscs40mm diameter x 15mm thickness grade N52Approx. 1.57" diameter x 5/8" thickness-Pull force approx. 107LB
Discs50mm diameter x 10mm thickness grade N52Approx. 2" diameter x 3/8" thickness -Pull force approx. 98LB
