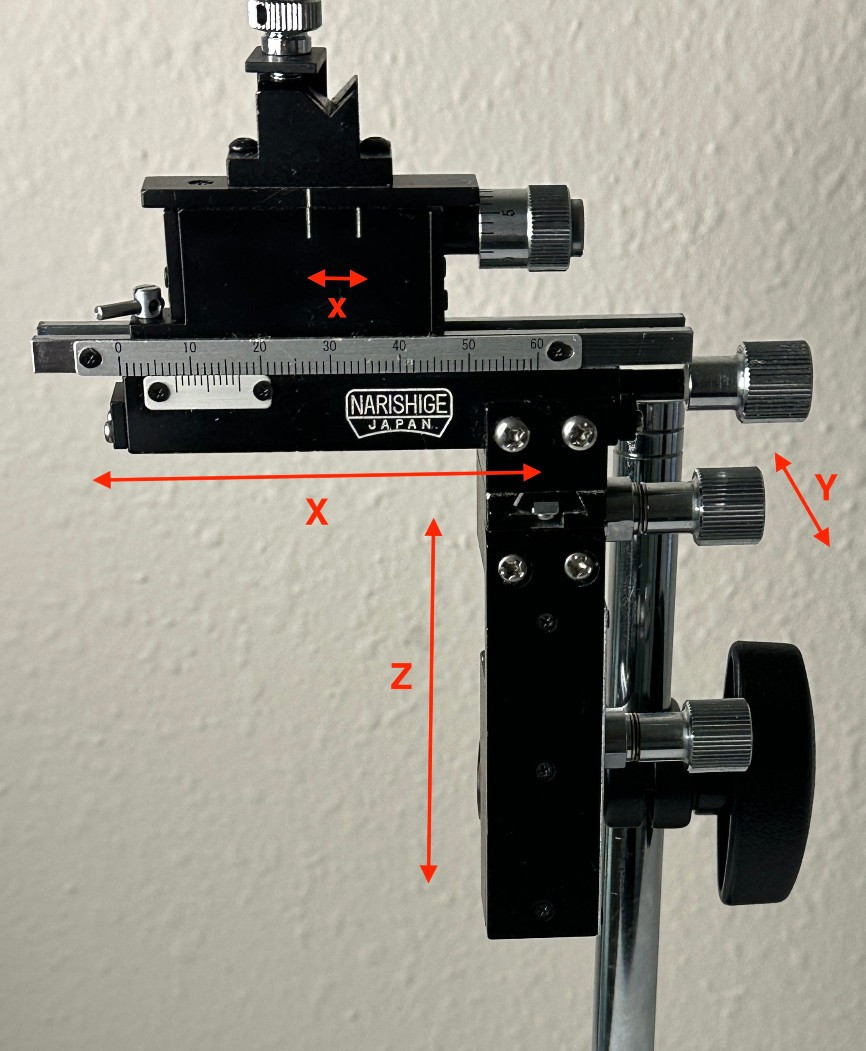

M-3333 ultra-thin manipulator body enables multiple instruments setup and multichannel recording.
It provides solid and stable design with dovetail brass slides. To enable recording from multiple microelectrodes, the body of this model is made as thin as possible, with all the handles positioned in a single direction. Use of the swivel rotating mount provides opportunity to position many microelectrodes close together without taking up too much space. It is of course possible to mount a single-axis fine movement unit on the X-axis for a more careful approach to thespecimen. Additional 95 mm upper rail for fine X axisactuator provide opportunity for rapid adjustment of individual instrument in the optical plan of the included: 4 axes manipulator head, magnetic base; 160 mm, 12 mm diameter mounting rod; swivel clamp
Movement range Coarse X 40 mm, Y 12 mm, Z 30 mm
Fine X 7 mm, Full rotation of knob: 250 µm
Minimum graduation: 10 µm
Dimension W 126 x D 43 x H 145 mm,Weight340 g without magnetic base 3200 g with magnetic base and mount
Compare $1600-$2000 from other vendors
