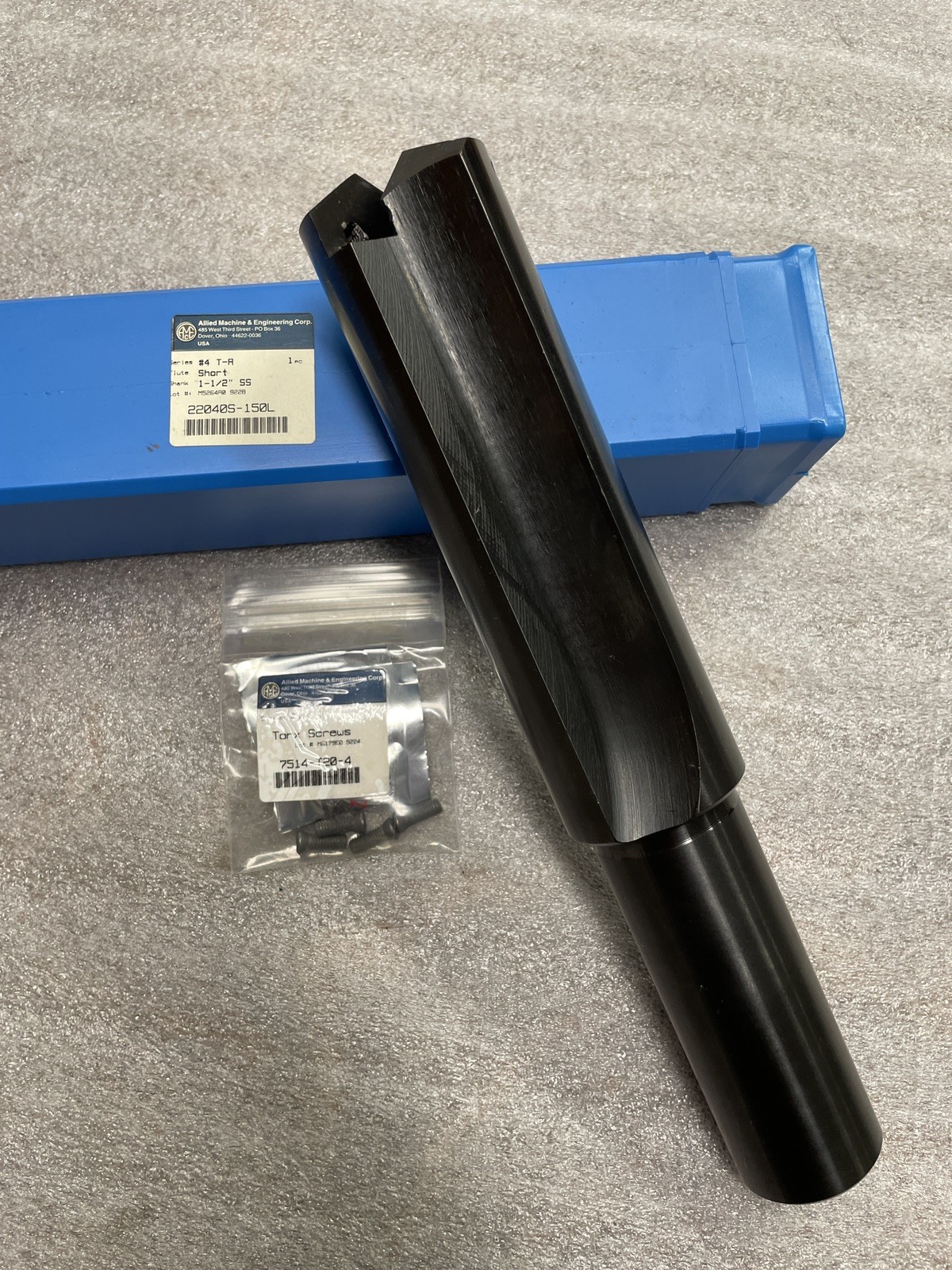

New Allied Machine & Engineering 22040S-150L Original T-A replaceable spade drill insert holder in original case as pictured.Specs:
Brand: Allied Machine & Engineering / AMEC
System: Original T-A replaceable insert drilling system
Part number: 22040S-150L
Tool marking: #4 T-A SH 1-1/2 SS
Tool type: Spade drill insert holder / indexable drill body
Series: #4 / 4 Series
Length style: Short
Flute type: Straight flute
Shank type: Straight / lathe shank
Shank diameter: 1-1/2”, approx. 38.10 mm
Shank length: 4”, approx. 101.60 mm
Insert diameter range: 1-29/32” to 2-9/16”, approx. 48.41 mm to 65.09 mm
Maximum drill depth: 5-1/8”, approx. 130.18 mm
Flute length: 5-1/8”, approx. 130.18 mm
Body length: 6-1/2”, approx. 165.10 mm
Overall length: 10-1/2”, approx. 266.70 mm
Coolant: Through coolant
Coolant entry: Axial concentric and radial
Body material: Steel
Included screw pack: Allied 7514-T20-4 Torx screwsIncludes the holder, original Allied case, and Allied Torx screw pack shown in the photos. New condition in original case as pictured. Please review photos for exact included items and condition.Free shipping included
