Item Specifics:

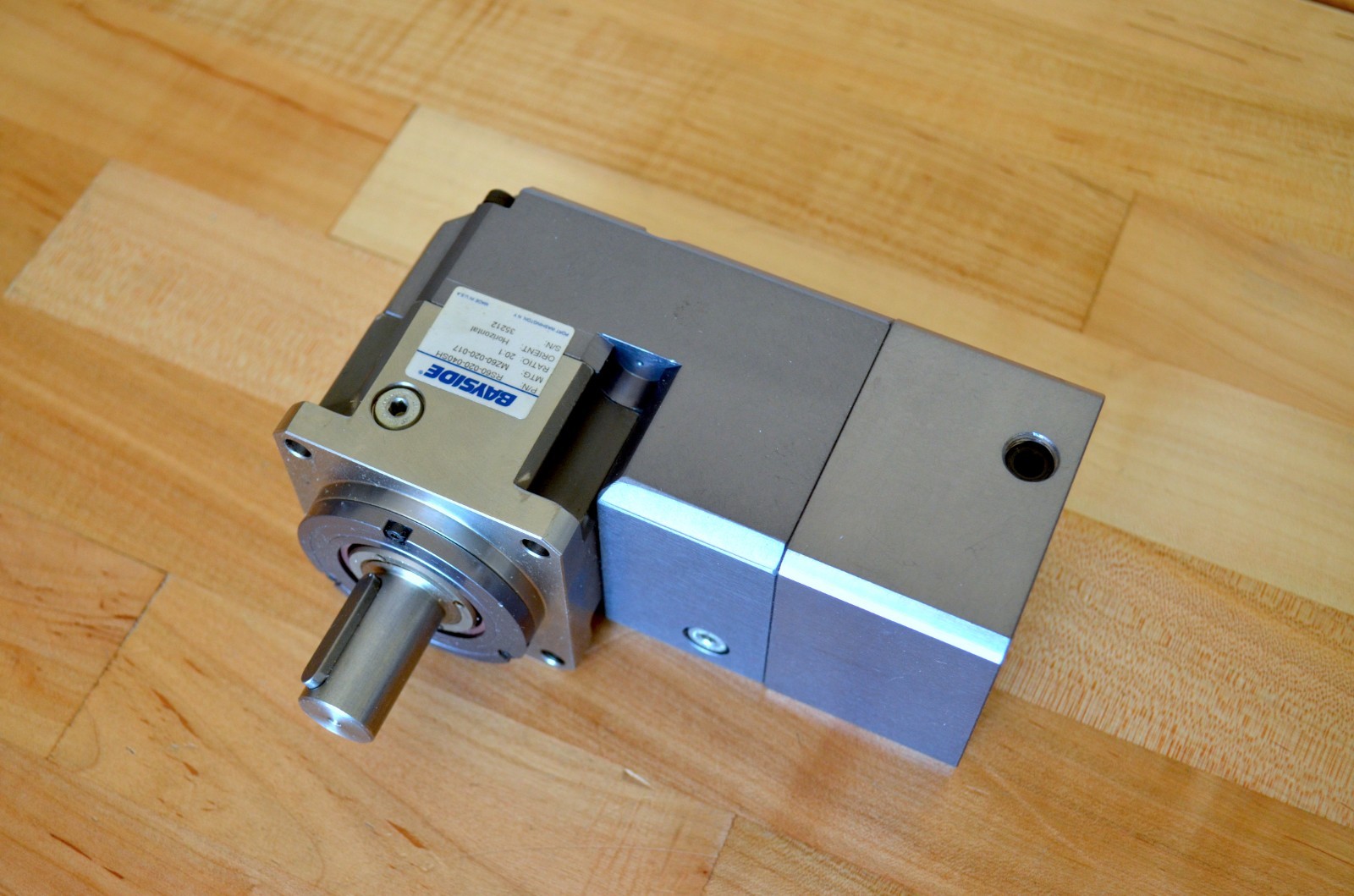

New Parker BaysideRS60-020-040SH
Right Angle Planetary Gearhead
20:1 Ratio, Nema23 Motor Mount
*sale price is for 1 gearhead, I currently have 6 available*
Item Description:
This is a new Parker Bayside nema23 precision planetary
gearhead, in perfect condition. It is a model RS60-020-040SH;
RS = \'High Precision\', 60 = 60mm frame, 020 = 20:1 ratio.
Output shaft is 16mm dia. w/ key. Inputshaft diameter is 3/8\".
(This will work with a Parker nema23 servo motor)
RS60-020-040SH Spec\'s:
Rated Output Torque =310 in-lbs (35 Nm)
Peak Output Torque = 400 in-lbs (45 Nm)
Rated Input Speed = 3,700 rpm\'s
Max Input Speed = 6,000 rpm\'s
Average Efficiency = 94%
Backlash = < 2.5 Nm/arc-min
Torsional Stiffness = 27 in-lbs/arc-min
Radial Load = 370 lbs (1,650 N)
Axial Load = 475 lbs (2,100 N)
