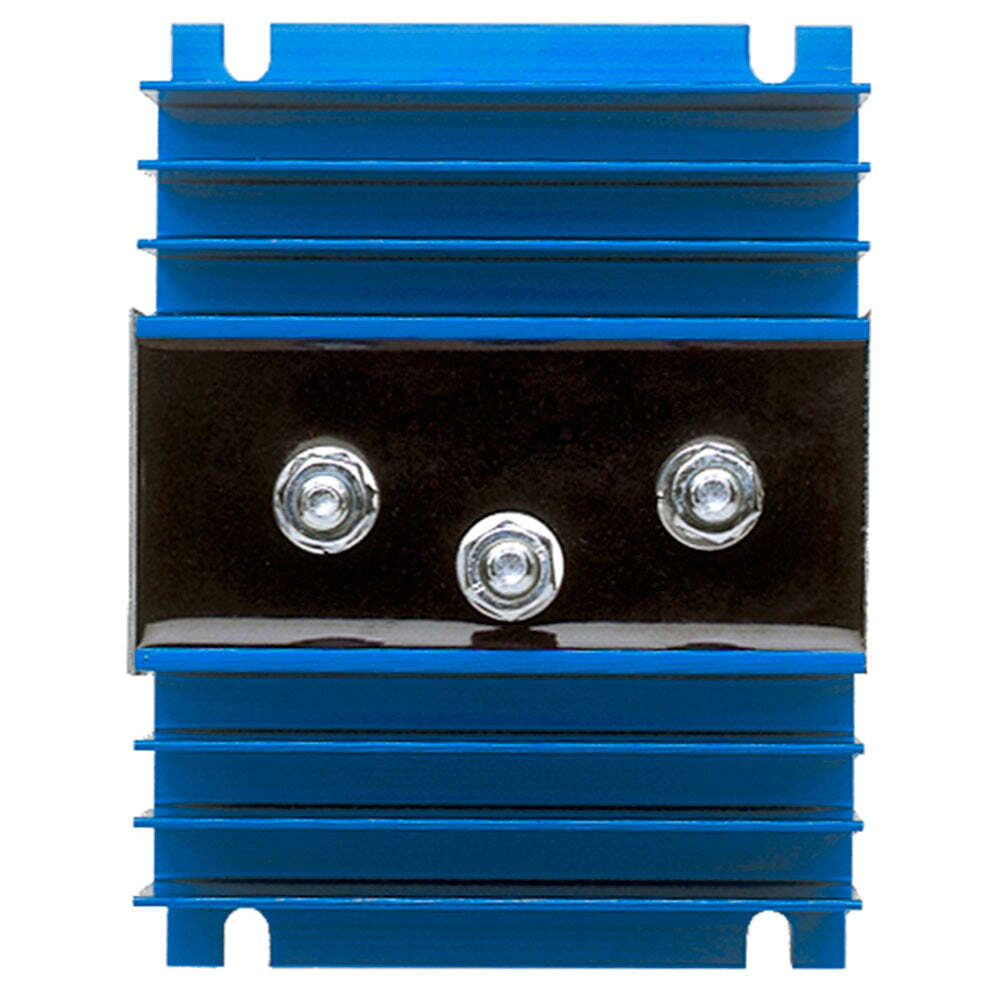

Newmar APS-160 Automatic Power Selector - 160A [APS-160] For Sale

Newmar APS-160 Automatic Power Selector - 160A [APS-160] APS-160 Automatic Power Selector - 160AThe Automatic Power Selector (APS) is a solid-state device that enables the installation of a seamless, redundant power system for critical electronic loads. It selects the higher voltage of two independent DC power sources and routes power to the load. Should one source falter or fail, the other will automatically supply the load with no transfer delay, and the operation continues uninterrupted.Two independent power sources are wired to the APS and routed as a single output to the vital load. Alarm sense wires can be easily attached to input studs, providing a loss of power source signal. Features: Easy installation Rugged, rust-proof anodized aluminum case Specifications: Max Loads: 160 amps Voltage Rating: 6 – 50 VDC, neg. ground Stud Terminal Size: 6mm Dimensions (inches): 9.0 x 4.5 x 3.1 Weight (lbs): 5 Newmar APS-160 Automatic Power Selector - 160A [APS-160]

APS-160 Automatic Power Selector - 160A

The Automatic Power Selector (APS) is a solid-state device that enables the installation of a seamless, redundant power system for critical electronic loads. It selects the higher voltage of two independent DC power sources and routes power to the load. Should one source falter or fail, the other will automatically supply the load with no transfer delay, and the operation continues uninterrupted.

Two independent power sources are wired to the APS and routed as a single output to the vital load. Alarm sense wires can be easily attached to input studs, providing a loss of power source installation

Rugged, rust-proof anodized aluminum Loads: 160 amps

Voltage Rating: 6 – 50 VDC, neg. ground

Stud Terminal Size: 6mm

Dimensions (inches): 9.0 x 4.5 x 3.1

Weight (lbs): 5

×
