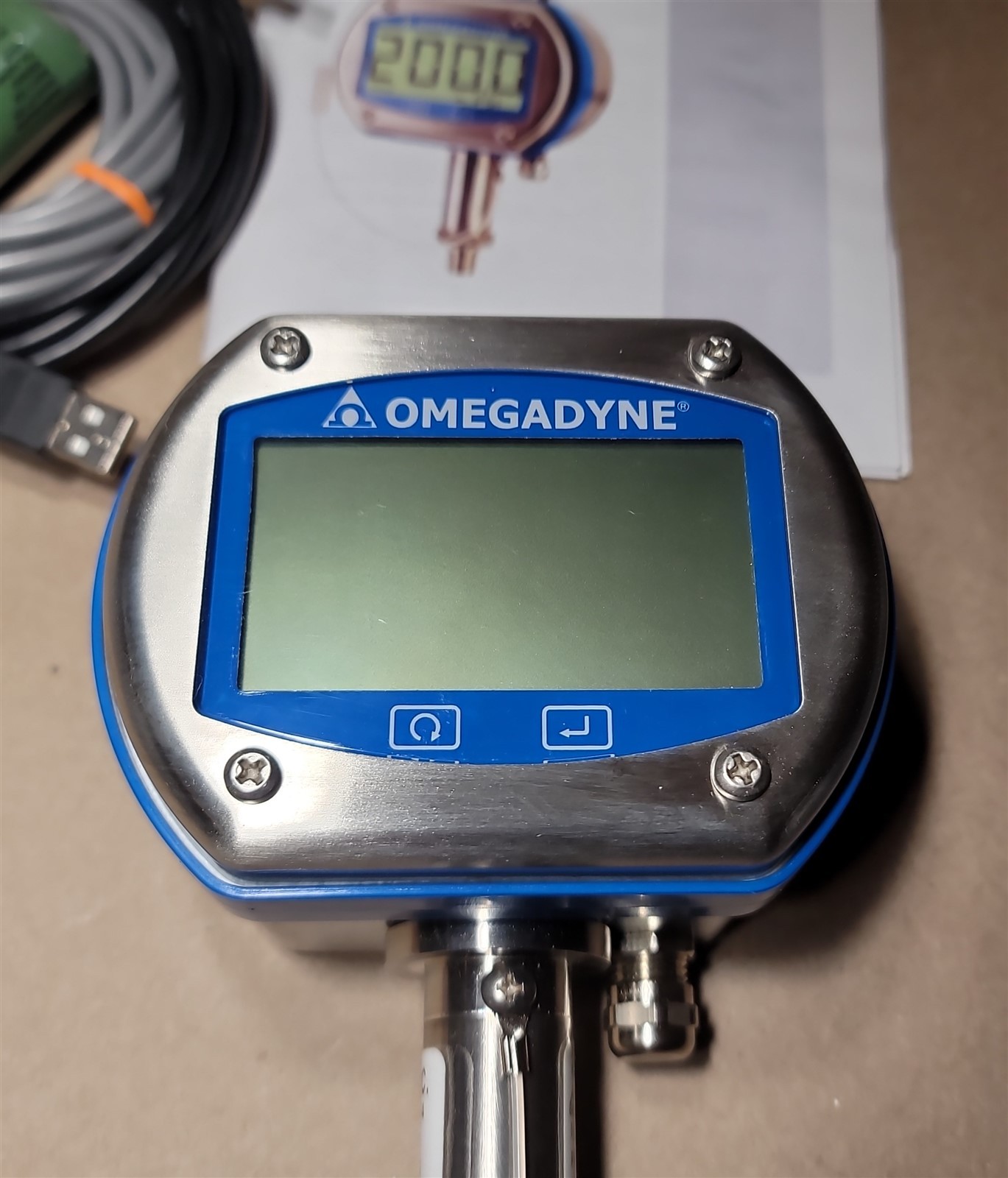

Omegadyne Digital Pressure Gauge DPG409-015A For Sale

New, old stock item, unused. Has been stored as a spare unit.

SPECIFICATIONS
CE Compliant: Meets EN61326-1: 2006 for industrial locations with analog output cables less than 30 m (98\') Accuracy (Combined Linearity, Hysteresis and Repeatability): ±0.08% BSL (compound gauge calibrated in positive direction only) Temperature:
Storage: -40 to 82°C (-40 to180°F)
Operating: -18 to 66°C (0 to 150°F)
Thermal Effects (Over Operating
Range):
Zero Balance:
Ranges >5 psi: ±0.3% span
Ranges =5 psi: ±0.5% span
Span Setting:
Ranges >5 psi: ±0.3% span
Ranges =5 psi: ±0.5% span
Minimum Resistance Between
Transducer Body and Any Wire:
100MO @ 50 Vdc
Pressure Cycles: 1 million minimum
Long Term Stability (1-yr): ±0.1% FS
typical
Analog Output: User selectable
0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA
(external 24 Vdc power supply required
for all analog output types)
Note: Compound gauge ranges have a
unidirectional analog output equal to their full
span; i.e. -15 to +15 psi = 0 to 10 Vdc.
Set jumper to select current or voltage
Software selection of 0 to 5 Vdc,
0 to 10 Vdc, or 4 to 20 mA
Analog Output
Cable: 2.7 m (8.9\')
Accuracy: 0.08% typical
Overpressure: Gauge and
sealed gauge
10 inH 2O: 10 times span
1 psi: 6 times span
2.5 to 1000 psi:
4 times span
1500 to 5000 psi:
7250 psi max
Absolute/Barometric Ranges
5 psia: 6 times span,
15 to 1000 psia: 4 times span
1500 to 5000 psi range: to 7250 psia
Containment Pressure: Gauge
pressure
10 inH2O to 5 psi: To 1000 psi
15 to 1000 psi: To 3000 psi
1500 to 5000 psi: To 10,000 psi
Absolute/Barometric Pressure:
5 to 1000 psi: to 6000 psia
Display: 4-digit LCD with user
selectable backlighting, (9999 count)
25 mm (1\") character height
Computer Interface: USB connection
for set-up, cable included
Sample/Display Range: User
selectable from 0.38 to 30 sec. (preset
to 1/sec)
Battery Life (Typical): Up to 9 months
Enclosure:
Material: 316 stainless steel and
ABS center gasket
Finish: Brushed 316 stainless steel
Environmental Rating:
Weatherproof, NEMA 4X (IP65)
Sensor Wetted Parts:
316L stainless steel
Pressure Connection: 1
/4-18 NPT male
Connection Location: Lower
Dimensions:
Display: 115 H x 89 W x 74 mm D
(4.5 x 3.5 x 2.9\")
Sensor: 72 to 89 mm L
(2.8 x 3.5\") below display
Weight: 900 g (2 lb) Typical depending
upon configuration
Front Panel Functions
Backlight: Manually turns backlight
on/off
Min/Max: Recalls min/max values
Zero/Clear: Zeros display or clears
min/max
Software Settings (via USB)
Update Rate: 4 options, 10, 5, 2, 1
times per second
Units: psi, inHg, inH2O, bar, mbar, hPa
units; must be specified at time of order
Lock: Allows the lock-out of front panel
functions
Alarms: User selectable “High” and
“Low” alarm limits (open collector)
Backlight: On/off, 10 sec, 30 sec,
1 min, 5 min

NOTE:Shippingfee (or free shipping) applies to continental U.S. only. No international shipping.

I ONLY SHIP TO NAME AND ADDRESS SPECIFIED BY WHEN sale ENDS AND PAYMENT IS RECEIVED.

Items are accurately described and sold as-is with no returns unless specified otherwise.

Please feel free to ask questions prior to offerding.

<>
