PAC LPA-E.4 LocPRO Advanced 4-CH Active Line Output Converter w/Remote Control For Sale

Welcome to the UpBeat Store, your ultimate destination for top-tier automotive aftermarket installations, covering both OEM and aftermarket radios with precision and finesse. With extensive experience in the industry, trust us to elevate your driving experience seamlessly. Don\'t forget to follow us and visit frequently for the latest deals. Our dedicated customer service team is here to assist you promptly and professionally as we turn your automotive aspirations into reality!

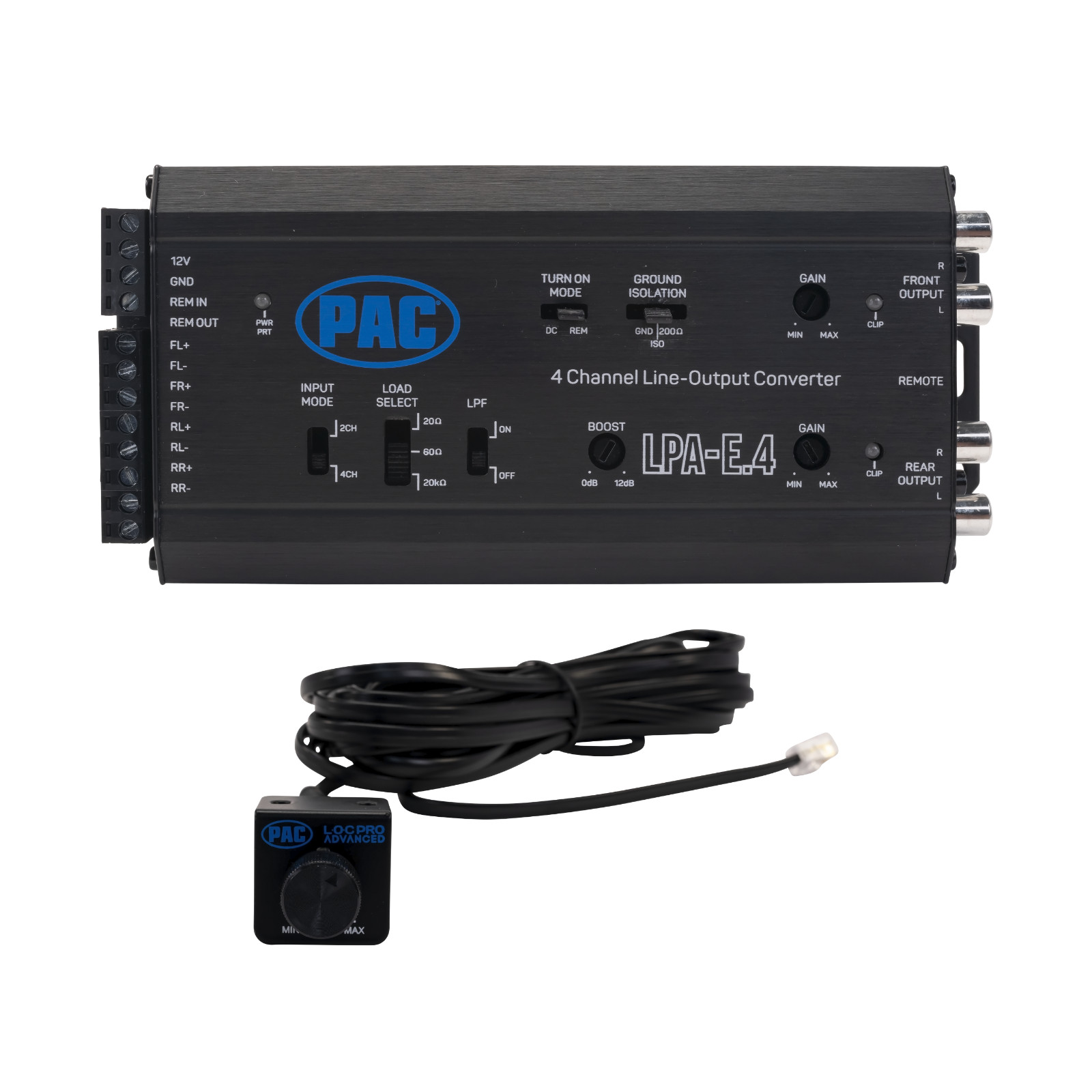

This listing includes a newPAC LPA-E.4 LocPROadvanced four channel line output converter with remote control, designed for adding aftermarket amplifiers to a factoryradio. The two pair of speaker level inputs are compatible with most factorystereo systems. They will accommodate up 40 volts per channel (equivalent to400 watts at 4Ω).
It featuresincredible input power capabilities, enhanced output controls, and noise isolation countermeasures. Combined with the newest vehicle systems\' compatibility, these features are the gateway for your audio aspirations.
One of the best ways to add an amplifier or powered subwoofer to a factory system is with a line output converter (LOC), which reduces the factory system\'s high-level outputs down to the preamp-level signals your aftermarket amp can handle. PAC\'s LPA-E.4 LocPro Advanced line output converter will work with just about any factory system, even amplified premium systems, to help you add an aftermarket amplifier in your vehicle.

What\'s included?

2 Phoenix terminals (installed)

Wired remote (16.25\' cable attached)

Remote mounting bracket

Four 5/8\" Screws

Two 1/2\" Screws

Quick startguide

LPA-E.4 Features

• Aluminum housing
• 40V / 400W maximum @ 20kΩ
• Low pass filter (CH3/4 only)
• Bass boost (CH3/4 only)
• Dual variable gain controls
• Selectable ground (common, ISO or 200Ω)
• Load selections: 20Ω, 60Ω, 20KΩ
• Clip indicator
• Turn-on mode selection (remote and DC)
• 9.5V Output voltage
• Removable quick-connect with screw-type terminal
• Wide range DC offset
• 4 Channel In & 4 Channel Out Unfiltered OR 2 Channel In & 4 Channel Out Unfiltered
• Independent Clip Indicator for Front and Rear
• LPA-REM Bass level controllerincluded

Model Number:

LPA-E.4

Channels:

4 IN – 4 OUT

Operating Voltage:

9V – 16V

Max Input Level (20kHΩLoad Setting):

40V / 400W at 4 Ohms

Auto Turn On:

DC Offset / Remote

Output Voltage MAX at 13.8V:

9.5V RMS

Turn On Trigger (DC-Offset):

3V-7V

Load Input Impedance:

20Ω, 60Ω, 20kΩ

Output Impedance:

<120Ω

Variable Gain Adjustment:

-28dB-+1dB

Signal to Noise:

>110dBA at 6.4V Output

THD+N:

<0.01%

Input Sensitivity:

0.5V-20V

Frequency Response:

10Hz – 20KHz

Current Draw (Max):

110mA

Low Pass Filter:

<250Hz (Rear Channels)

Bass Boost:

0dB to +12dB

Clip Indicator:

Yes

Remote Level Control:

0dB - 30dB

Chassis Type:

Aluminum Extrusion

Terminal Gauge:

18AWG / Quick Connect

Additional Notes
We recommend having a professional certified technician handle theinstallation. For any questions or concerns about the product, please contactus through the \"Contact Seller\" feature for technical support orcustomer assistance.
