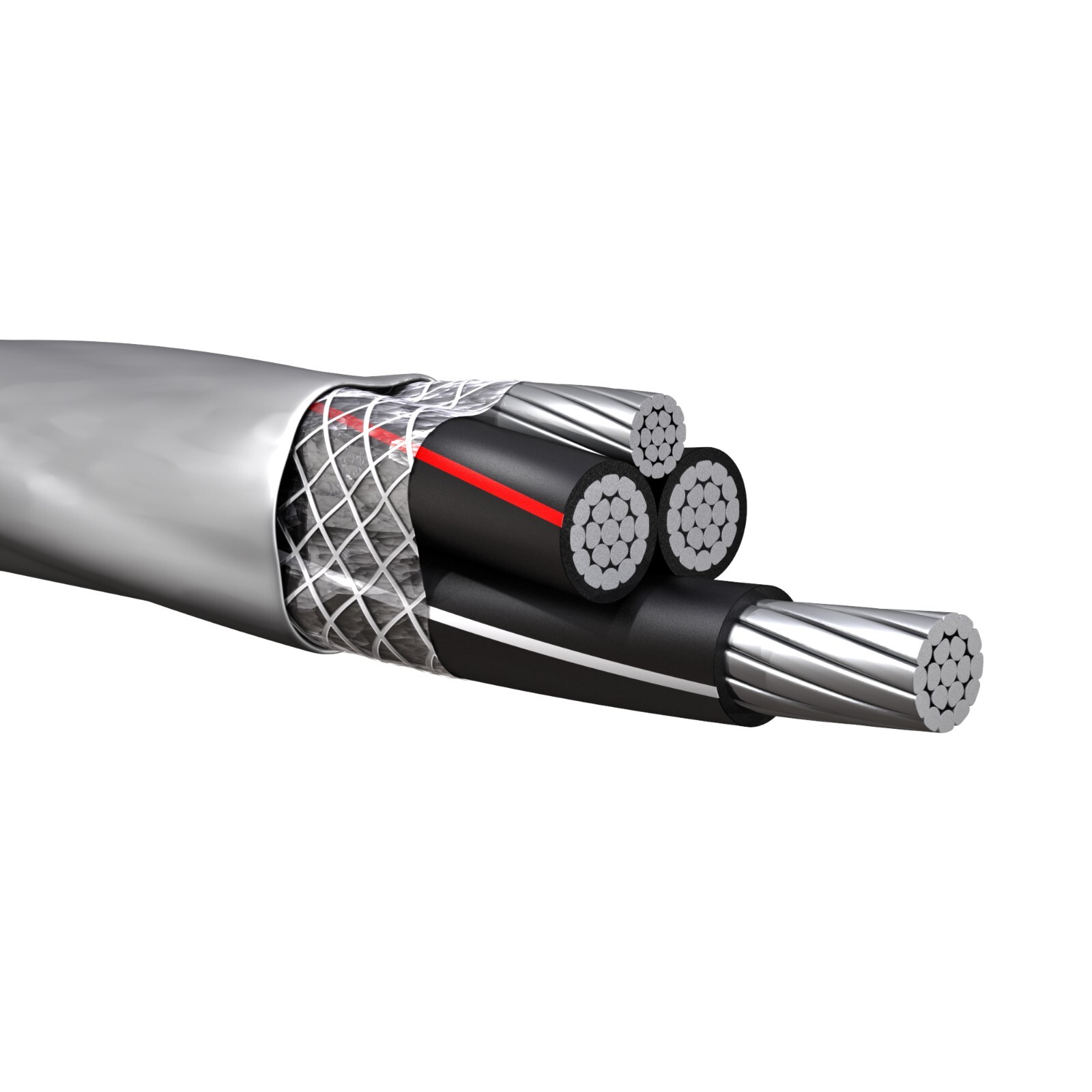

PER FOOT 4/0-4/0-4/0-2/0 Aluminum SER Service Entrance Cable PVC Jacket 600V Click Thumbnails to EnlargeAPPLICATION
• 4/0-4/0-4/0-2/0 Stranded Aluminum SER Service Entrance Cable Gray 600V Aluminum SER cable is primarily used as panel feeder in multiple unit dwellings and for branch circuits. Maximum operating temperature is not to exceed 90°C in wet locations. Voltage rating is 600 volts.
CONDUCTOR
• Compact Strand Soft Drawn 8000 Series Aluminum Conductor, per ASTM B-801
INSULATION
• Type XHHW-2 Cross linked polyethylene (XLP) insulation.
• The conductors are cabled together with a bare aluminum alloy ground.
JACKET
• Gray Sunlight Resistance Polyvinyl Chloride (PVC) Jacket.
STANDARDS
• UL 44: Thermoset-Insulated Wires and Cables
• UL 854: Standard for Service-Entrance Cables
• ASTM B-258, B-800, B-801
• National Electric Code
PRODUCT SPECIFICATIONSInsulated Conductor Size AWG 4/0Bare Ground ConductorSize AWG 2/0Overall Diameter (inches) 1.421Amps at90°C 205Weight (lbs/1000ft) 987CUT TO LENGTH
We Can do all Cut Length. If your looking any Custom Length? Please feel free to contact us.
OTHER VALUE ADDED SERVICES
• Expedited Shipping
• Cut to Length Paralleling
• Color Striping & Dyeing
• Reel Lagging
• Special Labeling & Packages
Shipping
Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note 's delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.***
Payment & Returns
***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping***
