POLISI3D 5km FPV Drone Fiber Optic Tether Spool + Sky End Module Kit Open Box For Sale

A fiber-optic tether kit for long-range FPV and UAS work. Video and control data travel down a single-mode optical fiber instead of an RF link, so the connection is immune to electromagnetic interference and jamming, cannot be intercepted over the air, and does not depend on line of sight. The fiber pays off a purpose-built drum that carries the sky-end module inside it, and terminates at a ground-end module that hands off video and serial data.

Fiber and pay-off reel

• Fiber length: 5,100 m, nominal 5 km
• Fiber type: single-mode, 9/125 micron. The factory QC label on this actual reel reads G657A2 bend-insensitive fiber, link tested at 1550 nm, 0.3 dB/km or better, insertion loss 0.3 dB or better, appearance inspection PASS.
• Optical cable diameter: 0.26 mm
• Reel: 94 mm diameter x 445 mm, ABS shell, aluminium-alloy outlet nozzle
• Reel weight: 0.60 kg including the sky-end module

Ground-end module, Opticallink GBD-MAX

• Product name: fiber optic image and data ground module
• Shell: aluminium alloy, 123 x 56 x 31 mm, 186 g
• Optical interface: FC connector - not SC and not LC
• Fiber mode: single mode, single fiber
• Wavelengths: 1310 nm (9/125 micron) and 1550 nm
• Data interface: GH1.25 serial | BNC video interface
• Video formats: NTSC / PAL / SECAM
• Data direction: offerirectional | Data format: TTL / S.BUS
• Data speed: 0 - 1 Mbps
• Manufacturer\'s stated transmission distance for the module over single-mode fiber: 0 - 60 km
• External power: XT60, 3-6S

The ground-end module has a battery tank that takes a Sony NP-F style pack (NP-F960 / F970 / F980 / F990T). The manufacturer does not include that battery, and no battery is included here either. Budget for one, or power the module from its XT60 input.

Open Box. Typically includes all original factory packaging. Ships fast with tracking.

Please read this carefully before buying - it matters more than usual on a multi-part kit:

• We have not powered, connected or optically tested any part of this kit, and we have not inventoried the contents against the manufacturer\'s full parts list. We cannot confirm that every accessory shown in the manufacturer\'s kit layout image is present in this box. Please buy on the basis of what the intake photos of the actual item show, rather than on the manufacturer\'s kit layout image.
• Photos 2 and 3 are receiving-facility intake photos of this actual item. They show the fiber pay-off drum with its factory QC and warning labels, the cable harness, a power adapter and a mounting bracket, packed in factory foam.
• The reel still carries its factory transport cable ties and protective clasps. Per the manufacturer\'s instructions these must be cut and removed before the fiber is paid off - the fiber will break if it leaves the reel with the clasps still fitted.
• Minor cosmetic marks consistent with an opened box are possible. No damage is known to us.
• If a part you need is missing on arrival, return it - we cover return postage.

• Photos 2 and 3 are of the actual item.

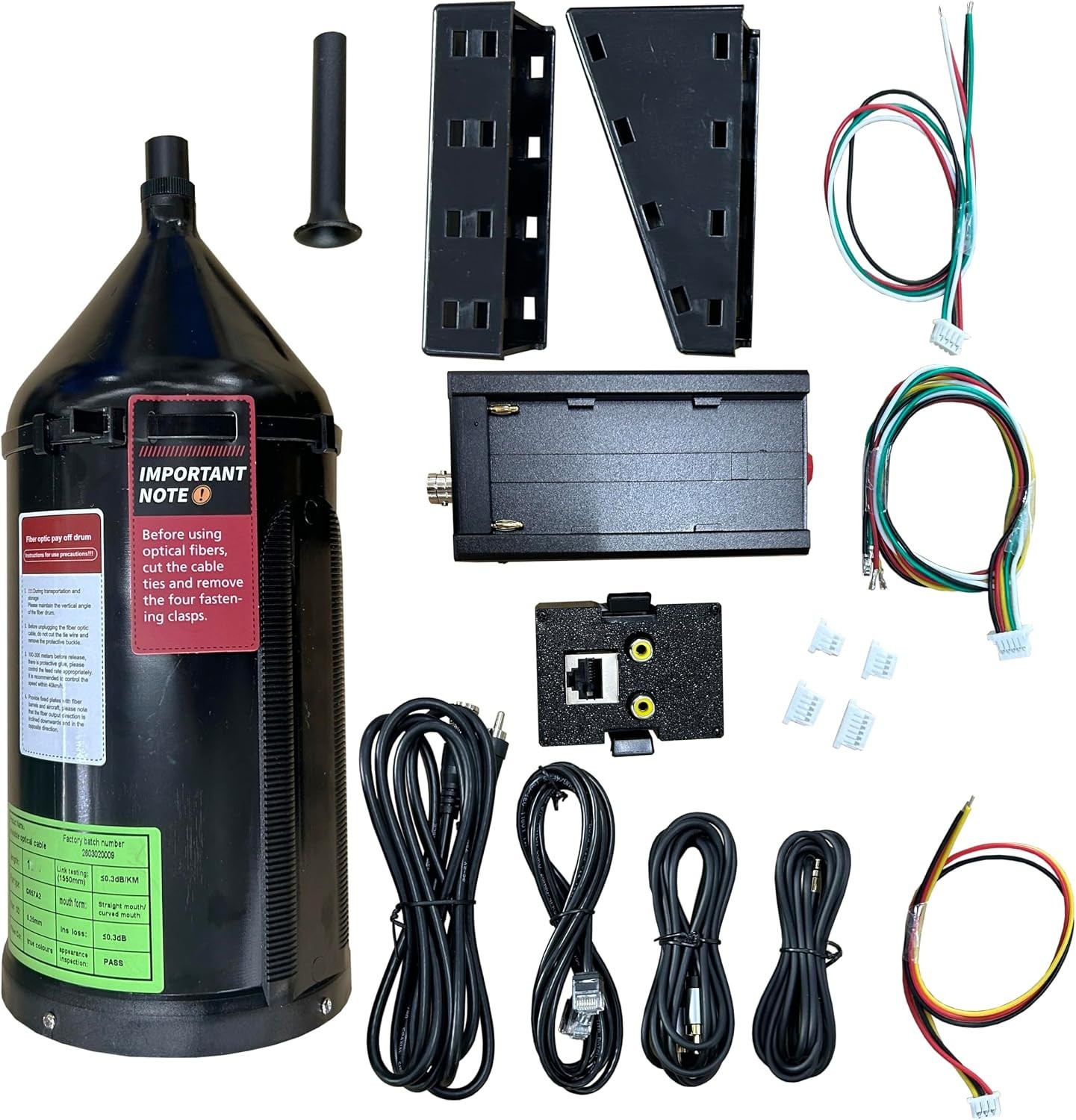

• The remaining images are POLISI3D manufacturer reference images showing the full kit layout, wiring diagrams, LED indicator definitions and module shipping to the buyer with tracking. Packed and dispatched from Mesa, Arizona.
