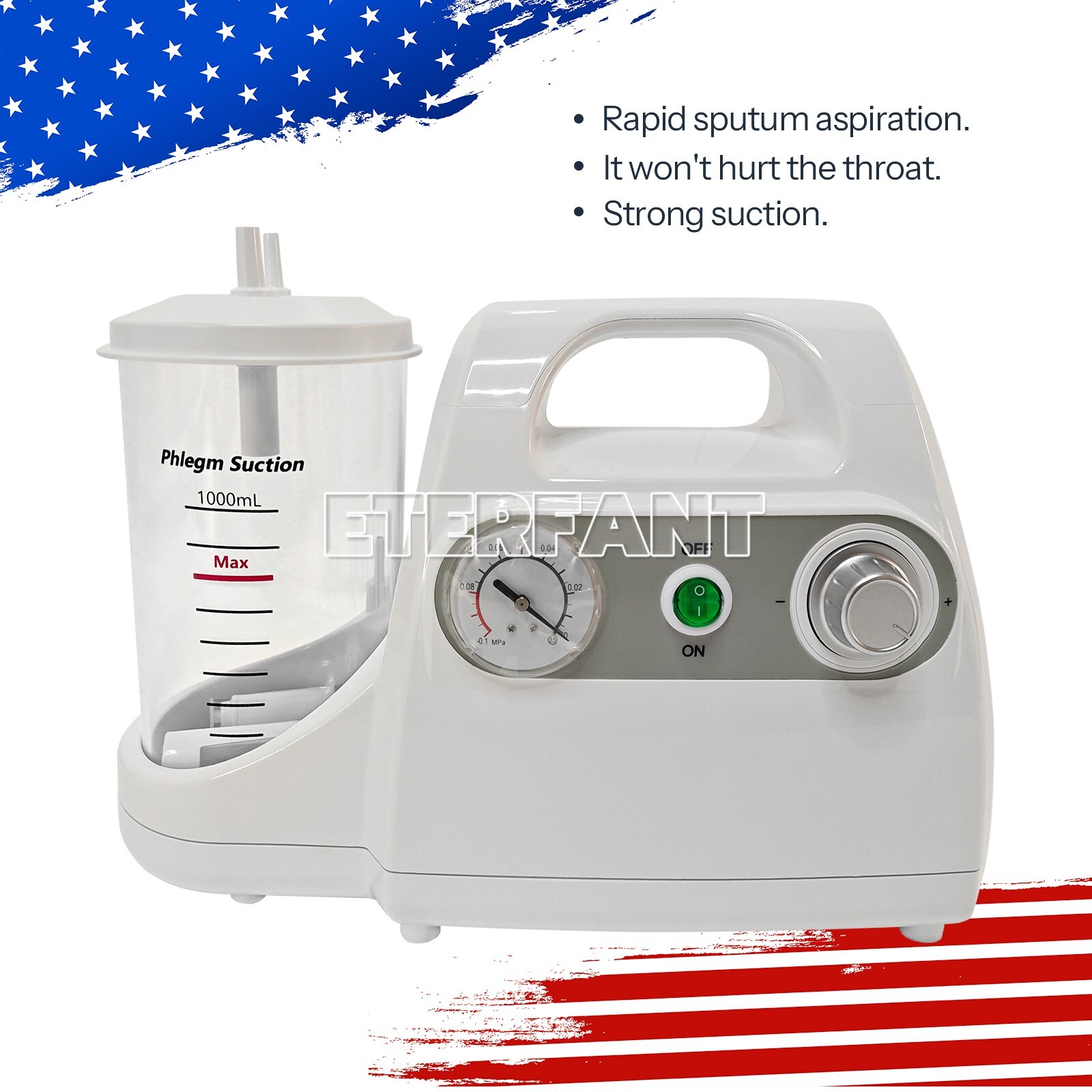

Portable Dental Suction Machine Oral Emergency Vacuum Phlegm Suction Unit
Please carefully read the instructions before attempting to operate this apparatus.
Product Features
1.General
The portable suction machine design is based on developing orientation of similar products at home and abroad, and is a new generation of oil free lubrication aspiration devices. They are suitable for use by patients who have difficulty in phlegm removal due to illness, coma, or operation, as well as for aspirating such liquids as pus and blood during the clinical practice. It is a commonly applied medical device in the emergency room, operation room, and for nursing in the sickroom and home healthcare.
2.Structure& Working Principle
An oil free lubrication pump is applied to keep the environment from being polluted by the oil mist;
Lower noise;
New style of the embedded liquid holder, round negative pressure meter, and full plastic enclosure;
No positive pressure to be generated during running, to ensure reliable and safe operation;
Negative pressure regulating system with step adjustment as required; Suitable for first-aid and door-to-door medical treatment because of its features such as small volume, light weight, and easy to carry about; Systematic diagram shown as follows:
Systematic Diagram
1.Exhaust Outlet
2.Suction Inlet
3.Silencer
4.Vacuum Pump
5.Negative pressure regulating knob
6.Overflow valve
7.Suction catheter
8.Vacuum meter
9.Air filter
10.Liquid holder
3.Main Technical Performances
1.Limit negative pressure: ≥0.075MPa
2.Negative pressure regulating range: 0.02MPa～limit negative pressure 3.Pumping rate: ≥15L/min
4.Noise: ≤65dB(A)
5.Power source:AC 110V/60Hz,
6.Input power: ≤90VA
7.Weight: 3.5Kg
8.Liquid holder: 1000mL/pcs
9.Overall size:337(L)*167(W)*240(H)mm
The apparatus is not suitable for use places with inflammable & explosive gas;
Working system: short time running;
Electrical safety requirement: Class I, Type B equipment.
4.Normal Operating Conditions
Ambient temperature: 5℃～40℃
Relative humidity: ≤80％
Atmospheric pressure: 86kPa～106kPaFDAStatement:
