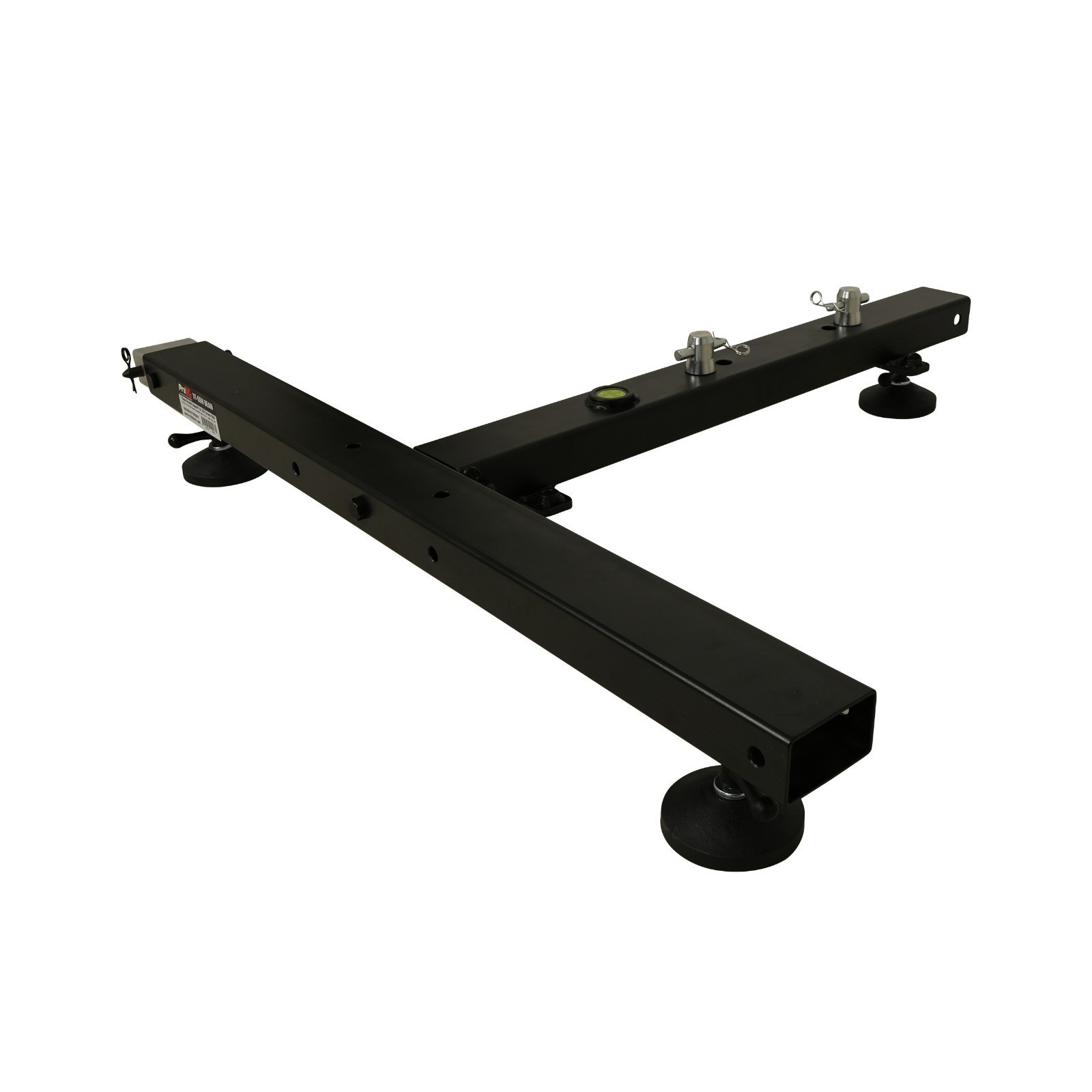

Prox Truss Ground Support 1M / 3.28ft T-Base for LED Screens Wall Stacking For Sale

This Listing Is For 1Brand NewPROX Truss Ground Support 1M/3.28ft T-Base for LED TV Wall Stacking F32 or 12\"

Please note listing is for ground support only, picture of truss segments are not included

TheProX XT-GSWBEAM Ground Support Stabilizing T-Base is a professional-gradefoundation solution designed for ground-stacked LED video wall systems thatrequire stability with a minimal footprint. Engineered for modern productionworkflows, this compact T-Base significantly reduces storage space, cargovolume, and setup time compared to traditional bulky ground support stands.

Designedfor fast and efficient deployment, the XT-GSWBEAM allows production crews toassemble LED panel walls quickly and with less effort, making it ideal fortouring productions, rental inventories, live events, broadcast environments,and permanent installations. The center-mounted design supports one vertical F32I-Beam or Bolt I-Beam trusssegment, creating a strong and balancedvertical support structure for LED wall stacking applications.

EachXT-GSWBEAM is suitable for supporting up to two vertical columns of 500 × 500mm or 500 × 1000 mm LED panels, depending on total panel weight, wall height,ballast, and engineering approval. Multiple XT-GSWBeam bases can be linkedtogether to accommodate longer and wider LED wall configurations, making thesystem highly scalable and adaptable to various production needs.

Constructedfrom rugged, heavy-duty steel, the XT-GSWBeam is built to withstand the demandsof professional staging and long term use. Each base is equipped with threeheight-adjustable leveling feet, allowing precise leveling on uneven surfaces.The leveling feet can be removed when bolting the base directly to the floor,making the XT-GSWBeam suitable for permanent orsemi-permanentinstallations.

Forcomplete LED wall assembly, this base is designed to be used with ProXXT-TC5LEDPA orXT-TC5LEDPABLK Telescoping LED Wall Panel Pole Clamps (soldseparately), enabling accurate LED panel positioning and secure attachment.

TheXT-GSWBeam Ground Support Stabilizing T-Base is a critical structural componentfor delivering safe, clean, and professional LED wall installations, especiallyin environments where space efficiency, transport optimization, and fast setuptimes are essential.

HeightScreen Ballast LBS
2.00 Meter 50 lbs
2.50 Meter 75 lbs
3.00 Meter 100 lbs
3.50 Meter 150 lbs
4.00 Meter 175 lbs

Features

• Truss Compatibility: Designed to support one vertical F32 I-Beam truss segment (hardware included) or 12-inch bolted I-Beam truss (bolt truss hardware XT-BTLBX4-G8 sold separately).
• Purpose-Built LED Wall Ground Support: Engineered specifically as a foundation base for ground-stacked LED video wall systems, delivering reliable structural support for professional productions.
• Center-Mount Truss Interface: Center-mounted truss connection provides a balanced and secure load path from the vertical truss to the floor.
• Compact, Space-Efficient Footprint: 39\" (1.00M) base length and 30\" (0.75M) Deepwith a low-profile T-Base design that maximizes stability while minimizing floor space, storage, and transport volume—ideal for touring and rental inventories.
• Integrated Leveling System: Includes a 3.28 ft (1,000 mm) leveling bar combined with height-adjustable rubber leveling feet for precise setup on uneven or imperfect surfaces.
• Installation Flexibility: Leveling feet can be removed to allow direct bolting to the floor, making the base suitable for temporary, semi-permanent, or permanent installations.
• Scalable & Linkable Configuration: Multiple T-Bases can be mechanically linked to support extended LED wall widths and scalable ground-stack configurations.
• Heavy-Duty Steel Construction: Fabricated from professional-grade steel to withstand repeated load-ins, load-outs, and long-term use in demanding A/V, touring
• Quick-Disassembly Design: T-Base can be easily disassembled by removing two locking pins, allowing compact storage and efficient transport.
• System Compatibility: Fully compatible with the ProX XT-GSWSB2440 Adjustable Height LED Panel Ground Support Stand for modular LED wall configurations.
