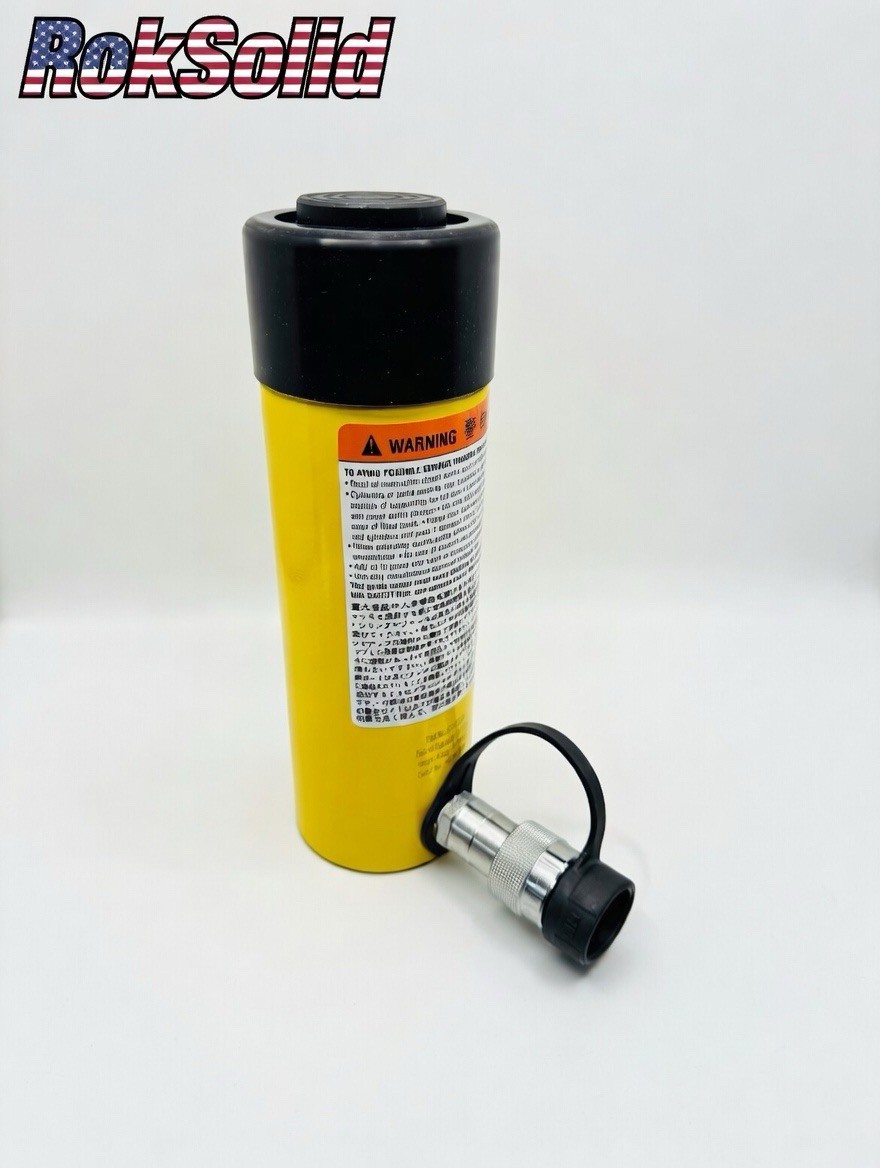

25 Ton Single Acting Hydraulic Cylinder – 6” Stroke
Model: RSRC256 (Series RSRC)
This high-quality 25-ton single-acting hydraulic ram is a reliable, cost-effective alternative compatible with the following popular brands:
• Freedom Hydraulics S256
• Enerpac RC256
• Simplex R256
• SPX C256C
• Eagle Pro ES256
• BVA Hydraulics H2506
To minimize costs in the current market, each unit is carefully re-boxed in a USPS Priority Mail Medium Flat Rate shipping box. We offer flat-rate shipping of just $22.95 per item to any U.S. state or territory.
Key Features:
• Plunger wiper seal keeps out contamination and debris
• Upper polymer bearing, hardened composite wear bands and lower brass bearings reduce wear on the cylinder rod and maximize service life
• Industrial-grade springs for superior spring performance and extended lifetime
• Rugged industrial-grade steel construction designed to withstand the most demanding applications
• Chrome-plated piston rod resists corrosion and rust
• Base mounting holes, collar threads, and plunger threads.
• 3/8” NPTF female coupler and dust cap included on all models equivalent to ENERPAC CR400
Technical Specifications:
• Capacity: 25 ton
• Action: Single Acting (Spring Return)
• Stroke Length: 6 1/4 in (Nominal 6 in)
• Effective Push Area: 5.16 sq in
• Max. Push Capacity: 25 ton
• Max. Pressure: 10,000 psi
• Oil Capacity (Push): 32.23 cu in
• Retracted Height: 10.75 in
• Extended Height: 17 in
• Outside Diameter: 3.38 in
• Plunger Diameter: 2.25 in
• Plunger Thread Size: 1-1/2 in.-16
• Collar Thread Size: 3-5/16 in.-12
• Base Bolt Circle Diameter: 2.31 in
• Center Hole Diameter: 2 1/4 in
Perfect for general purpose use in maintenance, fabrication, construction, and industrial applications where dependable performance and excellent value are required.
Get the matching seal kit for this 25 Ton cylinder: Seal Kit for RokSolid 25 Ton Hydraulic Cylinders (Item 326834457990) — designed specifically for repairs and long-term performance.
