This is the original RRS-1903 ! Designed and individually made by Raymond Sult N9KGC. Please be aware there is a Chinese clone/copy-cat available here on . Remember, I can customize / modify yours if you need. You can contact me directly. The Chinese clone will have no customer support.
* This is the ALL STEEL version. Less expensive than the other one I make which uses 4 inch 6061 aluminum channel on the antenna tilt side. This one is all steel due to the recent huge increase in the price of aluminum. I am still offering the aluminum RRS-1903 Tilt Mount here on and on my site.

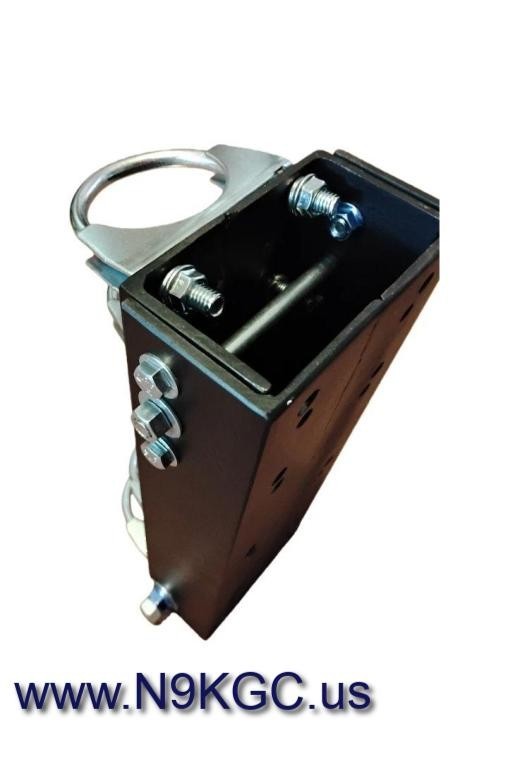

Vertical Base Tilt-Over Antenna Mount. 100 Percent Made in Evansville, Indiana USA. This new and improved design is similar to the MFJ-1903 and the Intellitron AB-1612
Antenna Tilt Mount for vertical base antennas. Far stronger and very much improved over the MFJ-1903 and the Intellitron AB-1612
Individually made (not mass produced) from steel angle that is used to make two steel channels that nest inside each other.
There is No Flex with this new stronger design ! Pivots / hinges on a larger more robust 7/16 pin / bolt rather than the two small 5/16 bolts that are used on the MFJ-1903 and Intellitron AB-1612 models. Is secured in place when in the \"Up\" position by two bolts that thread into the channel rather than using nuts and bolts as the MFJ-903 did. This allows for easier securing without having to reach inside the channel to hold the nuts with a wrench. (also has the two non threaded holes to use bolts with nuts)
This tilt mount comes with four (4) U-bolts. Two for the \"Antenna\" tilt-over side and two for the stationary side. Included U-bolts work with mast or pipe up to two (2) inch outside diameter. (if you need holes for larger U-bolts contact me)
Ships FREE in the USA ! Made in the USA
Selling here on since 1999. Yes, 27 years !
Check My 100 Percent Positive response !
* Please allow four (4) business days for this item to be fabricated and leave my shop. This item is fabricated after it is ordered.
If you need a custom or modified version of this item (or ANY item I make) please contact me with your request . Other U-Bolt sizes available.
73, from N9KGC
