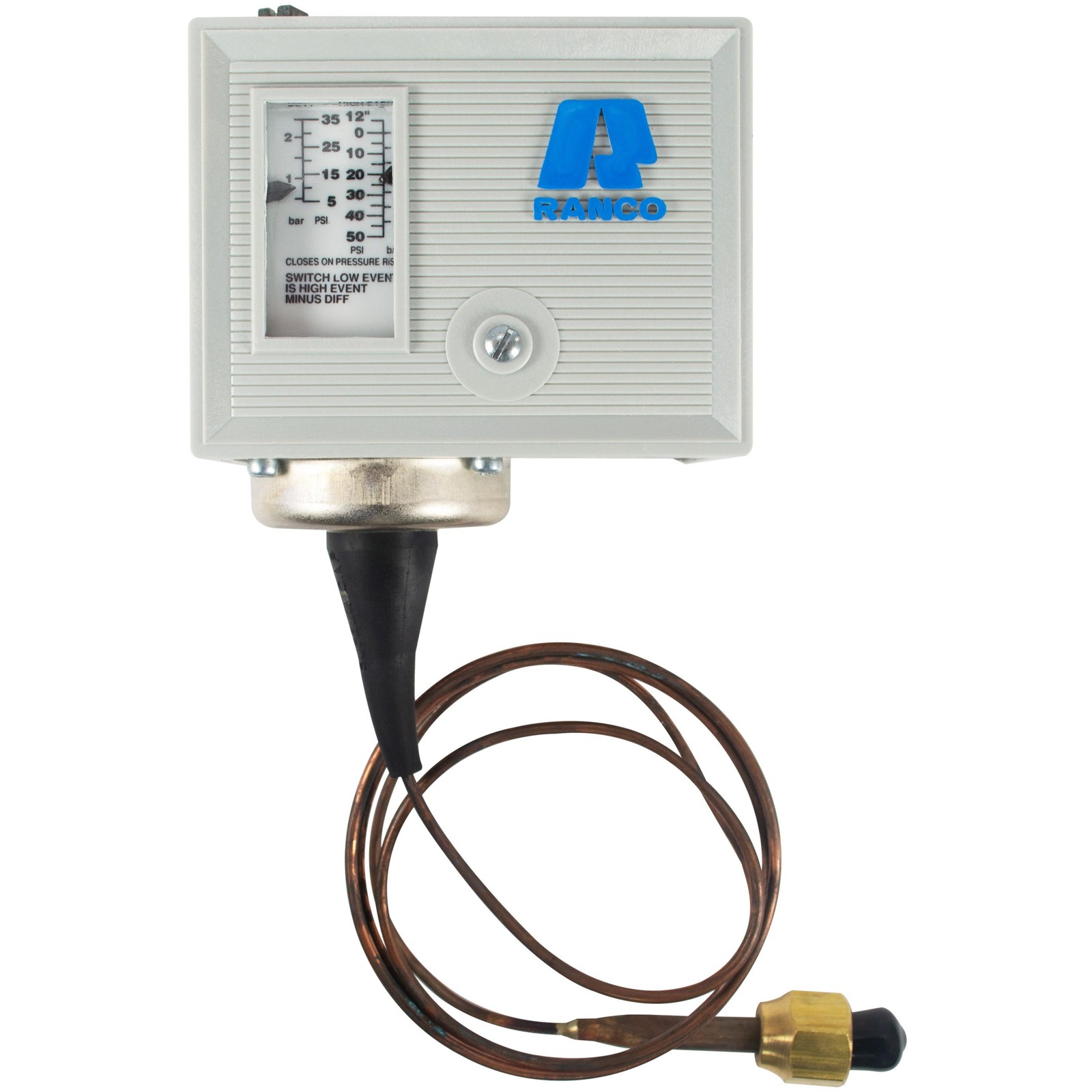

Ranco O10-1402 Single Low Pressure Control, 12 in HG to 50psig, Differential Pre For Sale

Ranco O10-1402 Single Low Pressure Control, 12 in HG to 50psig, Differential Pressure 5 to 35 psi, 36 in Capillary, for refrigeration applications
The Ranco O Series Single Low Pressure Controls Offer a Variety of Pressure Ranges and Switch Action
Controls Available For Most Refrigerant Types, High-Amp Rated Switch (Spst) Design
Adjustable Differential and Range, Easy-To-Read Scale Plate
Differential 5 to 35 psi (0.3 to 2.4bar). Pressure Range 12 in HG to 50 psig (0.4 to 3.5bar)
Replaces: 060-5237, 060-5235, P70AB-12AC, P170AB-12C

Weight : 1.31 LBR
Volume : 0.03996672 FTQ
Model : O10-1402
UPC-EAN : 696333133050

The Ranco O Series Single Low Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

Controls available for most refrigerant types

High-amp rated switch (SPST) design (O10-1402/O10-1483)

Super Cap capillary vibration protection system

Non-conductive front cover with captive screw

Adjustable differential and range

Easy-to-read scale plate

Vibration cone (absorbs and reduces vibration away from brazed joint)

Low mass copper alloy capillary tube (reduces capillary stress caused by equipment vibration)

Replaces the following part Numbers:

000320, 010-1004, 010-1011, 010-1012, 010-1024, 010-1027, 010-1037, 010-1038, 010-1049, 010-1053, 010-1055, 010-1066, 010-1068, 010-1070, 010-1080, 010-1089, 010-1102, 010-1204, 010-1210, 010-1213, 010-1402, 010-1402-070, 010-1402A, 010-1405, 010-1423, 010-1453, 010-1456, 010-1462, 010-1474, 010-1476, 010-1484, 010-1486, 010-1489, 010-1493, 010-1818, 010-1826, 010-1827, 010-1876, 010-1892, 010-1932, 010-1937, 010-1946, 010-1954, 010-1957, 010-1961, 010-1963, 010-1973, 010-2008, 010-2018, 010-2059, 010-2065, 010-2102, 010-2104, 010-2107, 010-2108, 010-2115, 010-2116, 010-2118, 010-2120, 010-2127, 010-2151, 010-2162, 010-2171, 010-2181, 010-2182, 010-2184, 010-2188, 010-2192, 010-2196, 010-2202, 010-2217, 015-4353, 016-557, 016-5718, 060-1101, 066A097, 085-0098-15, 085-0098-21, 10/1/1934, 10/1/1935, 2/2/2002, 2E981, 3.60E+96, 3X716, 11-193, 13-04-05, 13-04-06, 13C-91003, 19A-0291-0, 20-Dec, 23-0078, 23-5089-1, 25-4327PX, 25-4331P, 25-7610PL, 48, 60-2063, 65-01, 80-11191, 92B81, 209-05-006, 324-12760-00, 351-6044, 502-117A, 555-4618, 569, 700-077-00, 857-4, 1088A06-G01, 1325-104, 1453, 1456-716, 1462, 3132-112, 5704L, 8401-70, 8401-72, 8401-101, 9997-201, 9997-420, 10199, 10559-CF, 12359, 12760, 14097, 14187, 20410-1072, 20415-1072, 21105D, 21118, 24905, 37021, 42417, 46013, 49273, 57000, 70305-12, 84005, 84026-1, 92231, 94650, 120295, 131511, 134307, 271235, 300285, 620553, 650201, 800779, 1142792, 1155097, 2001694, 3516044, 52922000, 66201392231, AP24-1083, AP32-1012, B10-514, B-45432, BD-4608, CNT-38, CO-1610, CO-1686, CO-2732, CO-3753, CO-3755, CO-3790, CT-1, G2-1203, G2-1270, HK02RB-005, KPP-1072, KRP-89, L2-8785, L-59P148, M4B472, MG20-1613, O10-1004, O10-1011, O10-1012, O10-1024, O10-1027, O10-1037, O10-1038, O10-1049, O10-1053, O10-1055, O10-1066, O10-1068, O10-1070, O10-1080, O10-1089, O10-1102, O10-1204, O10-1210, O10-1213, O10-1402-070, O10-1402A, O10-1405, O10-1423, O10-1453, O10-1456, O10-1462, O10-1474, O10-1476, O10-1484, O10-1486, O10-1489, O10-1493, O10-1818, O10-1826, O10-1827, O10-1876, O10-1892, O10-1932, O10-1937, O10-1946, O10-1949, O10-1954, O10-1957, O10-1961, O10-1963, O10-1973, O10-2008, O10-2018, O10-2059, O10-2065, O10-2102, O10-2104, O10-2107, O10-2108, O10-2115, O10-2116, O10-2118, O10-2120, O10-2127, O10-2151, O10-2162, O10-2171, O10-2181, O10-2182, O10-2184, O10-2188, O10-2192, O10-2196, O10-2202, O10-2217, O15-4353, O16-557, O16-5718, O24-23249-00, Oct-99, P0768-01, P70AA-47, P70AA-105, P70AA-123, P70AA-133, P70AB-12, P70AB-12C, P70AB-29, P70AB-34, P70AB-40, P70AB-41, P70AB-44, P70AC-9, P70AN-2, P270AB-12, P420B, P-8-2321, P-1889, PB-2, PP-1223-G, PT1001, RC34-9102, W0650414
