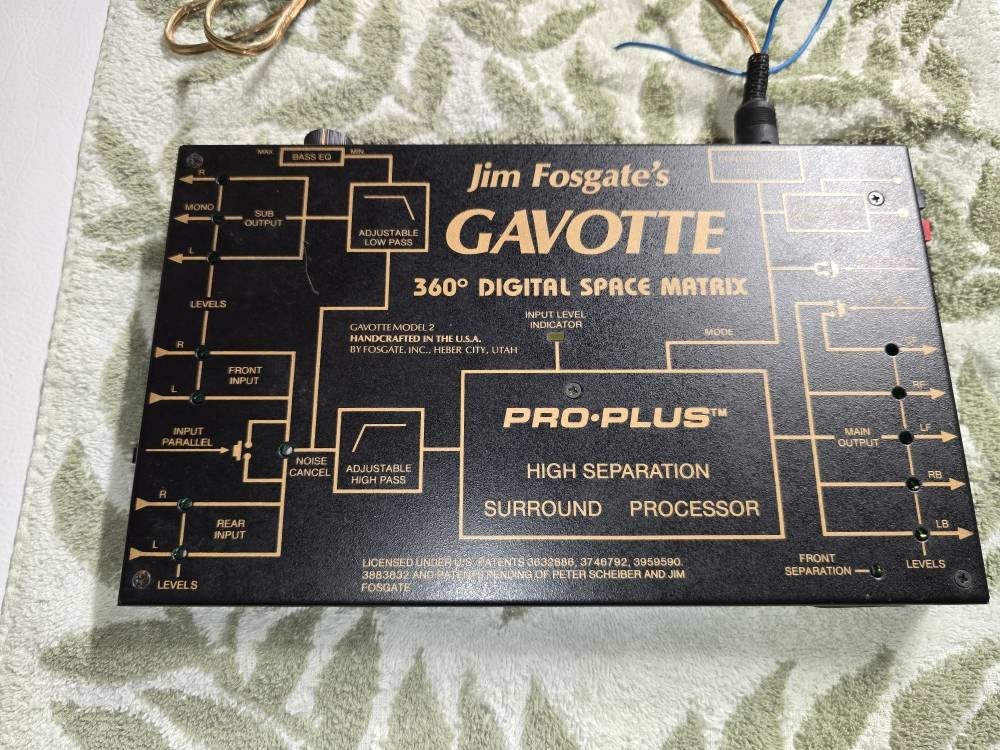

Rare Jim Fosgate Gavotte 360 Digitial Space Matrix Processor For Sale

Tested and functional. All sales final.
Beautiful, well cared for Jim Fosgate\'s Gavotte Pro Plus High Performance Surround Audio Processor, bass equalizer and electronic crossover with original DIN connector, toggle switch and name plate and Owner\'s Manual. First surround processor for car audio made.

• Features
• Incorporate exclusive Pro-Plus variable speed steering logic
• Bass Boost Equalizer
• Adjustable cross over network
• Unique bass blend circuit
• Noise cancel circuit
• Three separate subwoofer outputs
• Front/Back fader inputs
• Center front channel output with adjustable separation control
• Signal input level indicator
• High-Performance high separation design
• True audiophile standards of quality and performance
• Heavy-duty gold-plated input/output jacks
• Trunk mounted
• Rugged, foolproof design
• Regulated power supply
• Level trimmers do not affect input or output impedances
• Core Specifications
  • Type: High-end car audio 5-channel surround sound processor / matrix decoder
  • Technology: 360° Space Matrix (processes standard 2-channel stereo from cassette, FM, or CD into full surround)
  • Channels Supported: Front left/right, rear left/right, center channel, and subwoofer outputs
  • Controls: Front/back separation control, center channel enabled, bass blend, bass EQ, Center to left/right separation control, input parallel, input output level trimmers
  • Indication: LED indicator input level
  • Voltage Requirement:+12.6 to 14 -volt DC (automotive power) @ 175 milliamps
  • Frequency Response: All channels; +0 -0.1 dB 20Hz to 20kHz
  • Harmonic and Tim: Typically less than 0.05% at rated output on all channels
  • Signal to Noise: Typically better than -90dB \'A\' weighted
  • Channel Separation: 35dB Fronts to Back, Back to Fronts, Side to Side
  • Input Impedance: 50K ohms, independent of level setting
  • Output Impedance: 390 ohms, independent of level setting
  • Physical Dimensions:11-1/2\" x 6-1/8\" x 1-1/4\", 2.75 pound weight
  Features & Adjustments
  • Independent level adjustments for individual input and output channels
  • High-pass and low-pass crossovers
  • Built-in bass EQ (such as an 18 dB boost at 45 Hz on specific Pro-Plus variants)
  • Adjustable front channel separation
  • Dash-mounted rear-channel level/fader control options

Perfect for the car audio enthusiast looking to upgrade their system with a classic Jim Fosgate component.
