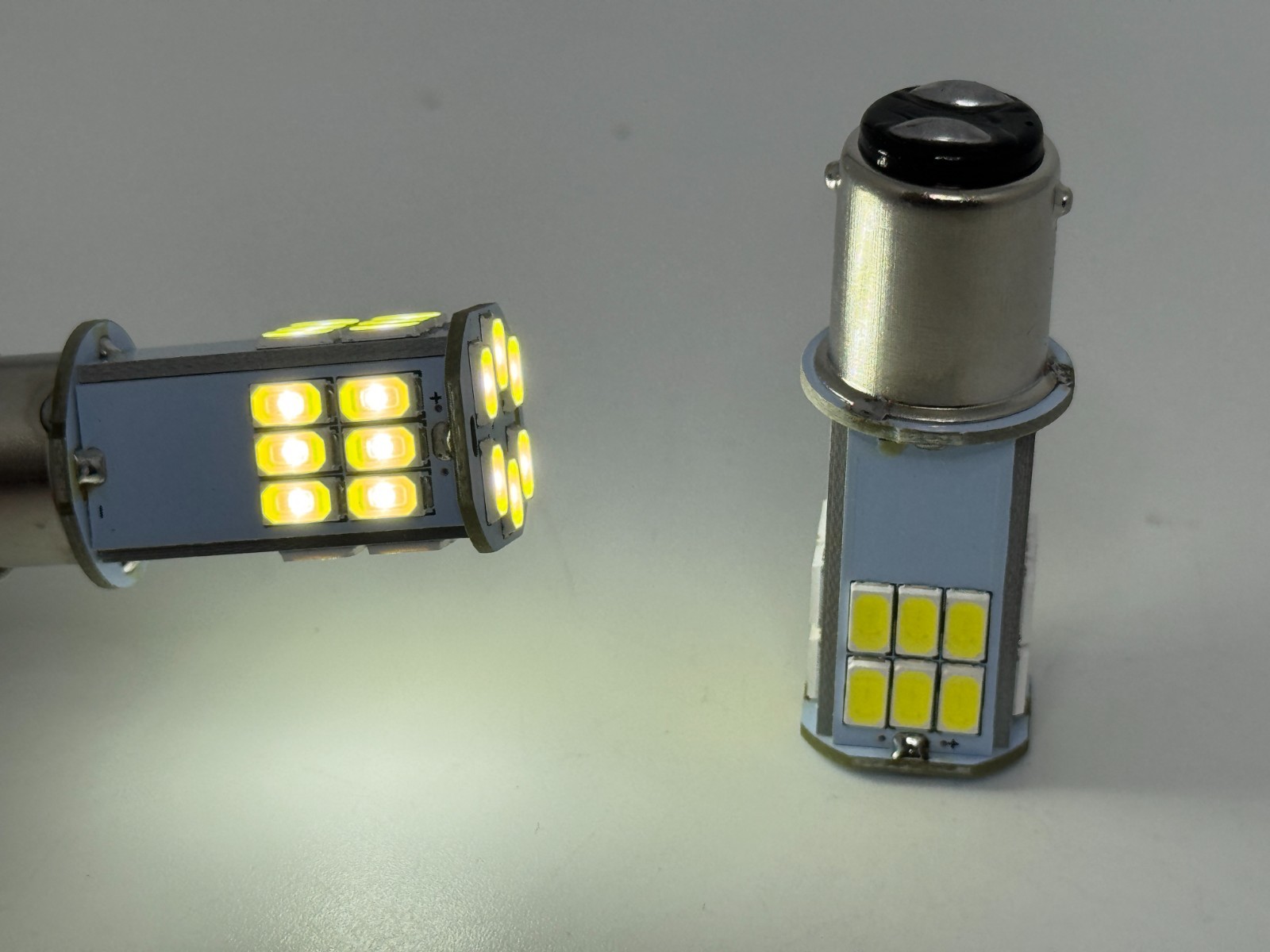

Rebaydo 2pcs 1158 6 Volt LED Bulb BA15D Base 30 SMD Dual Filament For Sale

Rdo 1158 Miniature LED Bulb – 6V | Dual Filament Hi / Lo | BA15D Base | Positive or Negative Ground

Product Highlights:
Brand: Rdo

Bulb Type: 1158 Miniature LED Bulb – Dual Filament (High / Low or Brake / Turn Signal)

Brightness:

• High Output: Up to 400 Lumens

• Low Output: Up to 360 Lumens

• Up to 31 Candle Power (CP)

Voltage: 6V DC – compatible with positive or negative ground systems

Beam Angle: 120° viewing angle for wide, even illumination

Lifespan: Up to 30,000 hours

Base Type: BA15D – dual-contact base with two bayonets (15mm standard base)

Package Quantity: Two (2) Bulbs
Quality Control: Each order is tested before shipment
Warranty: One (1) year limited warranty from date of purchase

Construction:

• Dual filament LED design for high and low brightness operation

• Solid-state LED construction eliminates fragile filaments and glass bulbs

• Compact profile fits standard miniature bulb housings

• Durable design ideal for classic and vintage vehicles

Electrical Characteristics:

• Rated Power: 4 Watts (actual power draw varies by voltage, color, and beam selection)

• Nominal Current Draw: Approximately 409 mA @ 6.09V

• Dimmable: Yes – dimmable using a variable voltage power supply

• Maintains illumination when system voltage is below 6V due to aging wiring

Current Draw @ 8.0 Volts (color dependent):

• White 6000K: Low 150 mA / High 630 mA

• Warm White 3000K: Low 147 mA / High 617 mA

• Yellow 594 nm: Low 149 mA / High 660 mA

• Red 625 nm: Low 159 mA / High 478 mA

Minimum Operating Voltage & Current Draw:

• White 6000K: ~3.9V, Low 4 mA / High 6 mA

• Warm White 3000K: ~4.0V, Low 6 mA / High 10 mA

• Yellow 594 nm: ~4.0V, Low 4 mA / High 6 mA

• Red 625 nm: ~3.33V, Low 9 mA / High 16 mA

Dimensions:

• Maximum Overall Length: 1.944 inches

• Maximum Diameter: 0.741 inches

Installation & Usage:

• Plug-and-play replacement for #1158 incandescent bulbs

• Fits standard BA15D sockets with two contacts

• If bulb appears dim when it should be bright, remove and reinsert rotated 180°

• Ideal for vintage and classic cars, motorcycles, and trucks

• Suitable for 6V brake lights, turn signals, and dual-intensity applications

• Standard base size ensures proper socket fit

⚠ Important: Not compatible with 12V or 120V AC household power

Why Choose Rdo 1158 Miniature LED Bulbs:

• Dual brightness operation in a single compact bulb

• Works with positive or negative ground systems

• Remains illuminated down to approximately 3.3–4.0 volts (color dependent)

• Dimmable performance for older vehicles with voltage drop issues

• Lower power consumption reduces stress on vintage wiring

• Solid-state reliability with no filament or glass to break

• Long service life with slow lumen degradation

Color Options:

• White 6000K

• Warm White 3000K

• Red 625 nm

• Green 526 nm

• Blue 464 nm

• Yellow 594 nm

Compatible With:

• #1158

• 1158

• BA15D
