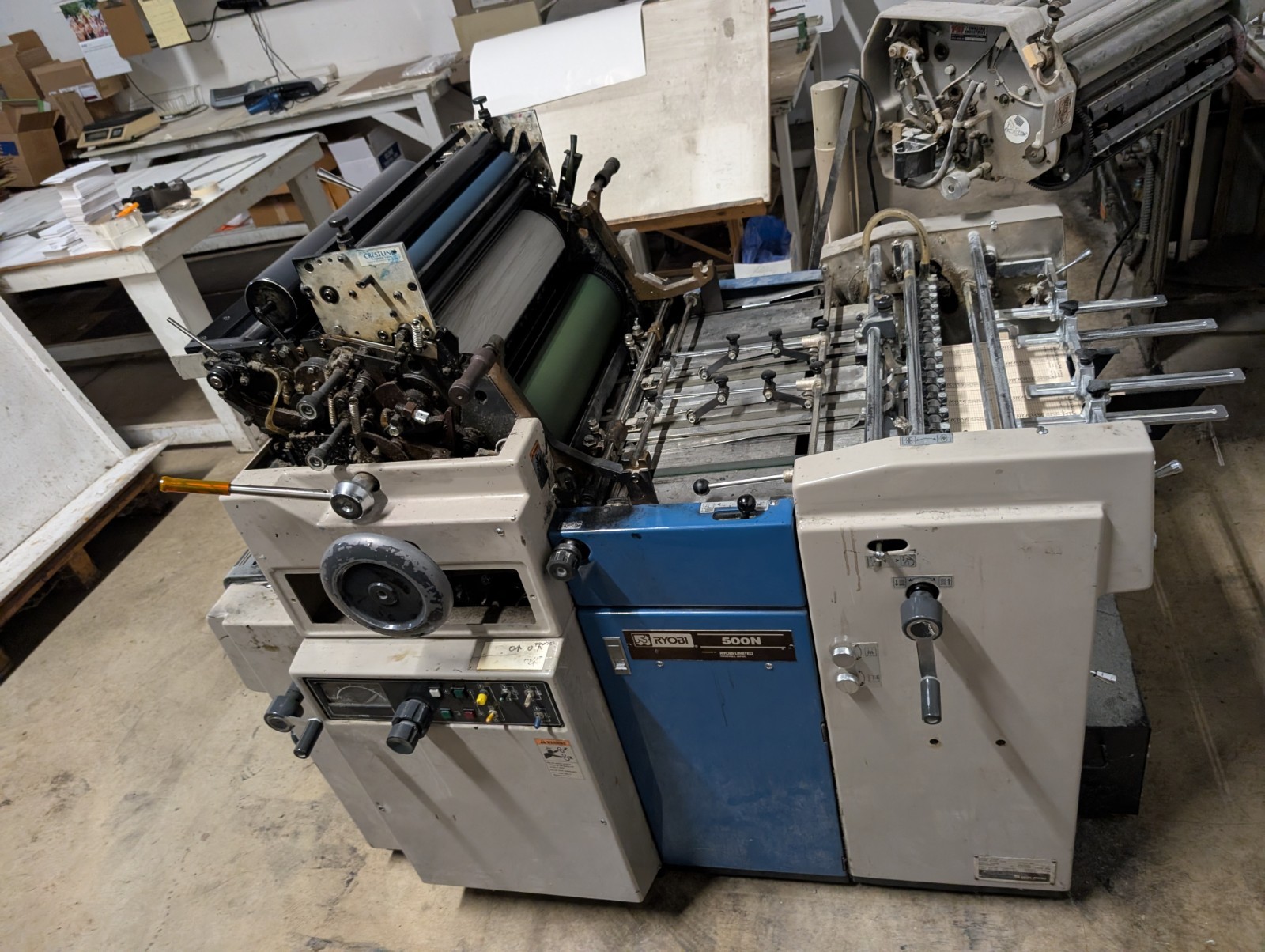

Ryobi 500N offset withTownsend T-51 in excellent condition!
click on video link belowto seeit running!(you may need to copy and paste in your is a low use unit and incorporates many nice features to make printing fast and EASY! Its in great working condition.
Rollers are in great shape and all gears and cylinders clean with no damage.
VERY CLEAN, WELL CARED FOR MACHINE!OFFSET PRESS SPECIFICATIONS
Ryobi 500N Single Color Offset Press with Crestline Dampening
Offset Press Specifications
MAX. PAPER SIZE (W x L) 500 x 360 mm (19.69 x 14.17 “)
MIN. PAPER SIZE (W x L) 90 x 140 mm (3.54 x 5.51 “)
MAX PRINTING AREA (WxL) 470 X 350 mm (18.50 x13.78″) 470 X 345 mm (18.50 x13.58″)
PRINTING SPEED WHEN USING NP UNIT 2,600 – 8.000 S.P.H. (MAX. PRINTING SPEED WHEN USING THE CROSS PRFORATOR: 8,000 SHEETS PER HOUR)
PLATE SIZE 483 x 405 mm ( 19.02 x 15.94″)
PAPER THICKNESS 0.25mm (0.0098″)
PLATE CLAMP TYPE STRAIGHT-EDGE PLATE CLAMP W/ POSITIONING PINS
BLANKET SIZE 480x429x2.5 mm (18.90×16.89×0.098)
FEEDING SYSTEM UNIVERSAL FEEDER
FEEDER PILE CAPACITY 430 mm (16.93″)
DELIVERY SYSTEM CHAIN DELIVERY
DELIVERY PILE CAPACITY 375 mm (14.76″)
REGISTRATION SYSTEM PULL SIDE GUIDE
NUMBER OF ROLLERS NP ROLLERS: 6 (FORM ROLLER :1)
DAMPENIG SYSTEM CRESTLINE CONTINUOUS DAMPENER
GRIPPER MARGIN 8 mm (0.31”)
VERTICAL IMAGE ADJUSTMENT RANGE 230 mm
LUBRICATION SYSTEM CENTRALIZED OILING SYSTEM
VOLTS 120
PHASE 1
AMPS 25
Hz 60/50
NET WEIGHT 930 Kg (2,050 lbs)
Great press for the moneyso grab itwhile its here.Just $3,200.00 !!!(delivery & installation can be quoted per location)
Call us @ 440-949-1201or google Graphic Accessories for our contact info details
We can ship to anywhere in the continental USA
THIS UNIT RUNS GREAT!
More pics available
ALSO PLEASE NOTE I DO NOT USE PAYPAL or pay. I accept bank wire transfer, credit card (if under $2,000.00) or I will take a check as long as you dont mind waiting for it to clear a few days. CALL TO ARRANGE PAYMENT OPTIONS (look under equipment condition at top of ad). THANKS FOR LOOKING
