SANDVIK COROMANT 1.375" INDEXABLE DRILL 2xD CoroDrill 1-3/8 A880-D1375LX38-02:
$399.95

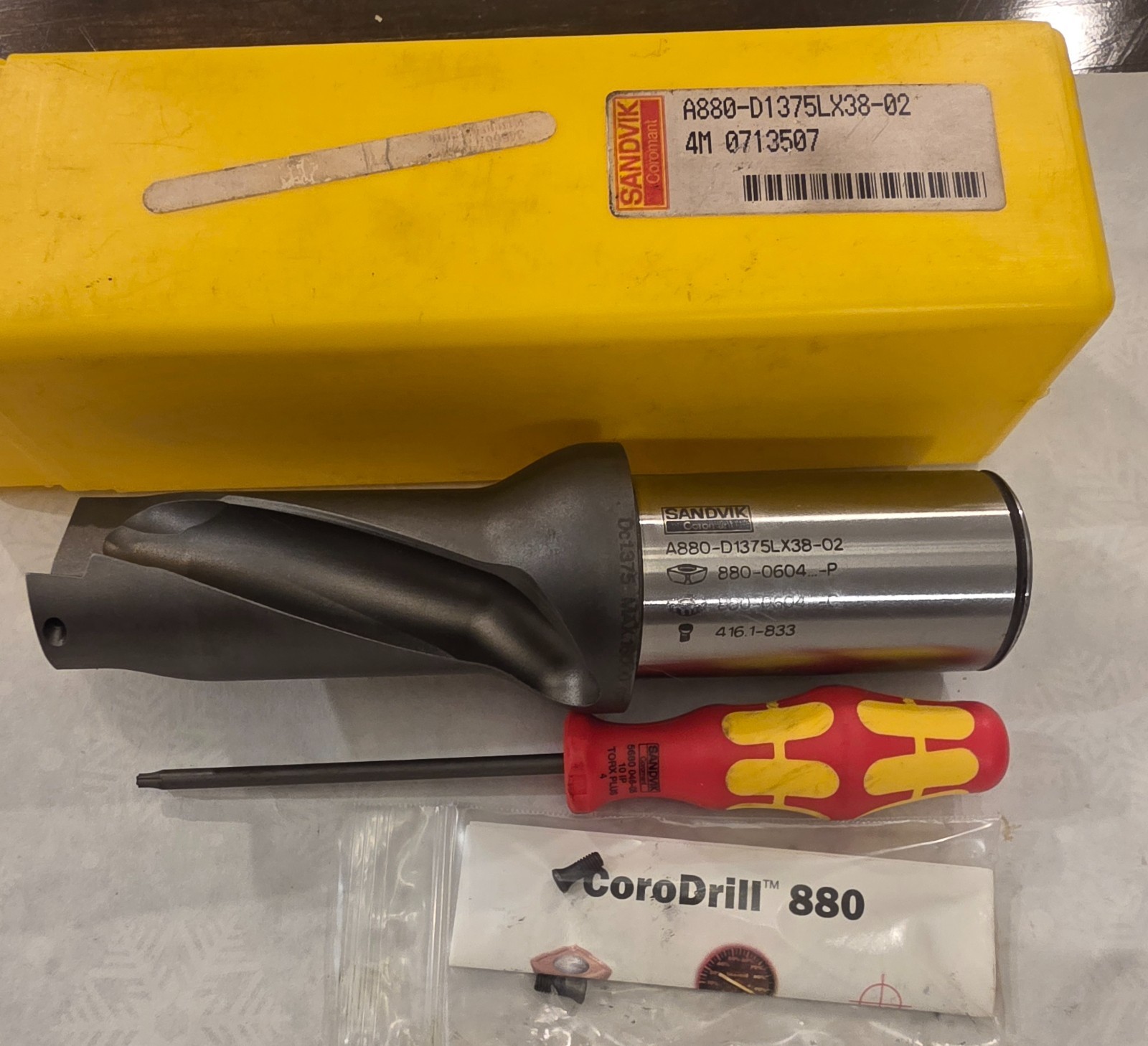

SANDVIK COROMANT 1.375" INDEXABLE DRILL 2xD CoroDrill 1-3/8 A880-D1375LX38-02
*This Retails for $950.00
Product dataMetricInchDATA IN TECHNICAL ILLUSTRATION:Cutting diameter (DC)1.375 inUsable length (LU)2.7747 inTool cutting edge angle (KAPR)88 °Point length(PL)0.0247 inOverall length(OAL)6.6779 inFunctional length(LF)3.8973 inMORE PRODUCT DATA:Achievable hole tolerance lower(TCHAL)0 inAchievable hole tolerance upper(TCHAU)0.0098 inUsable length diameter ratio (ULDR)2.018Max. radial adjustment(ADJLX_RAD)0.0201 inInsert type(CUTINT_MASTER_1)CoroDrill 880 -size 06-C (880-060406H-C-GM)Cutting item count(CICT_1)1Clamping type code(MTP)clamp with screw through holeInsert type(CUTINT_MASTER_4)CoroDrill 880 -size 06-P (880-0604W06H-P-GM)Cutting item count(CICT_4)1Torque(TQ)17.7015 in lbfOrthogonal rake angle(GAMO)5 °Face effective cutt edge count(ZEFF)1Connection - machine side(ADINTMS)Cylindrical shank (ISO9766 drill shank with flange) -inch: 1 1/2Coolant entry style(CNSC)axial concentric entryCoolant pressure(CP)145 PSIConnection diameter(DCONMS)1.5 inBody length(LB)2.915 inRotational speed maximum(RPMX)info16,000 1/minWeight of item(WT)2.3788 lbRelease date(ValFrom20)8/13/06Release pack id(RELEASEPACK)06.2
