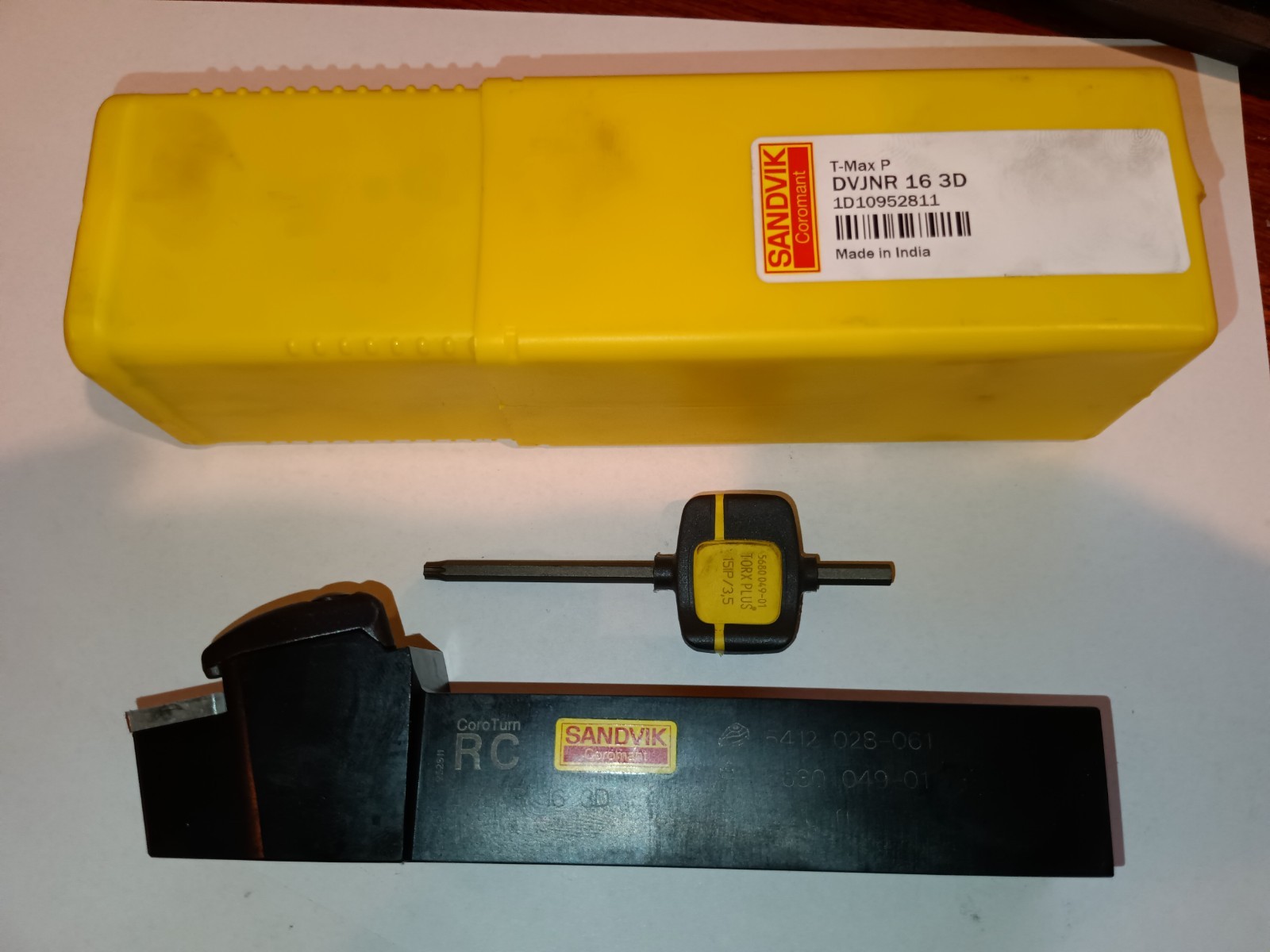

Sandvik Coromant T-Max® P DVJNR 16 3D (Material ID / Order No. 5731452) — right-hand indexable external turning tool holder (shank tool).96d79d
Key description and specs
Series: T-Max® P (general/high-performance external turning for medium to large components).
Style: DVJNR (offset shank, 93° tool cutting edge angle / KAPR, –3° lead/approach angle).
Hand: Right-hand (R).
Insert compatibility: Negative 35° diamond (V-shape) inserts, size 16 (e.g., VNMG 160408 / VNMG 16 04 08 master insert; IC ≈ 9.525 mm / 3/8", thickness ≈ 4.76 mm).
Clamping: CoroTurn® RC (rigid clamp) — top clamp into the insert hole (MTP code D; torque 3 Nm). The included Torx Plus key (5500 049-01, 15IP/3.5) is the standard wrench for this clamp.
Shank: Rectangular / square, 1" × 1" (25.4 mm × 25.4 mm).
Overall / functional length (OAL/LF): 6" / 152.4 mm.
Functional width (WF): 31.75 mm; functional height (HF): 25.4 mm.
Max. overhang (OHX): ≈ 46.5 mm.
Other: Orthogonal rake –4°, inclination –13°, max. ramping angle 44°, no through-coolant (no entry/exit). Body material: steel. Weight ≈ 0.70 kg. Made in India (per box label; order/batch reference 1D10952811 visible).fced2c
It is designed for longitudinal turning, facing, profiling, and related operations on steel, stainless, cast iron, heat-resistant superalloys, and hardened steel. The RC clamp is particularly suited for dry machining or short-chip materials and provides rigid, reliable insert seating.
