SCHULZ 7.5 HP Stationary Air Compressor, 80 Gallon Vertical, 230V, 3 PH For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

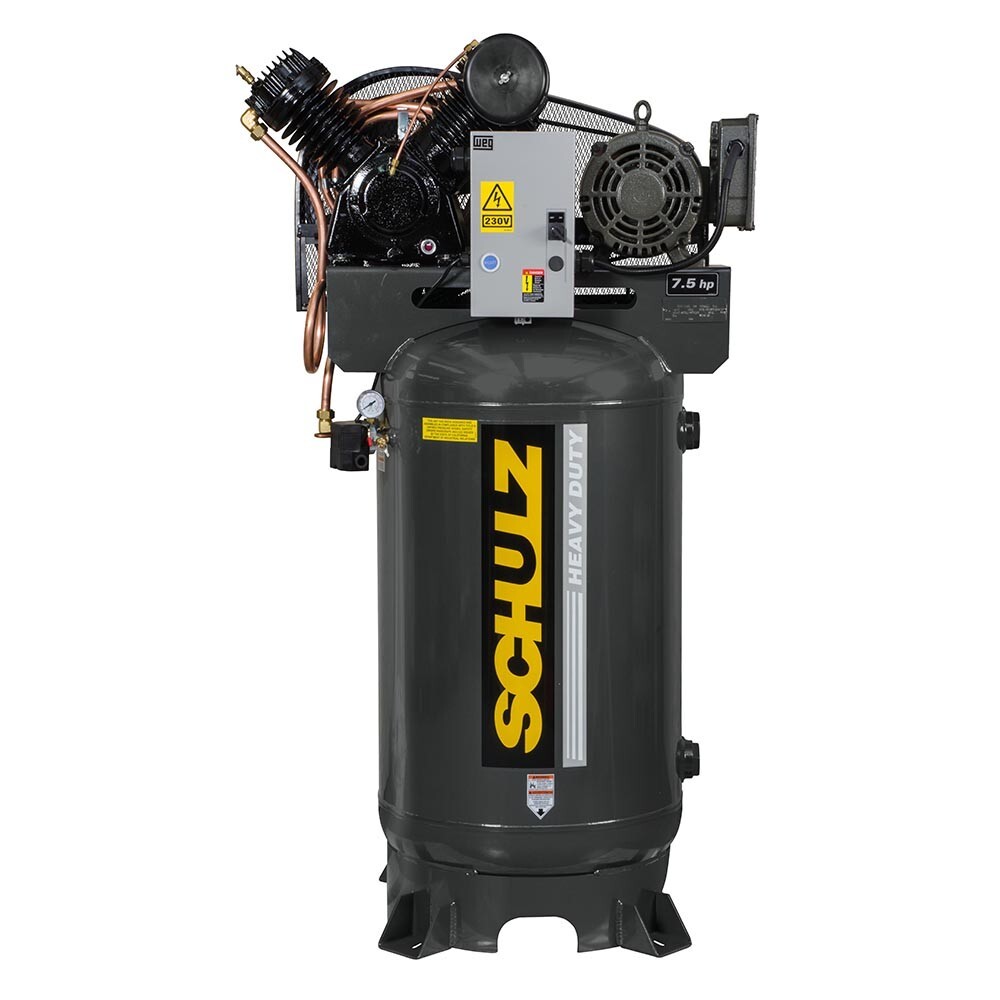

SCHULZ 7.5 HP Stationary Air Compressor, 80 Gallon Vertical, 230V, 3 PH:
$3678.22
TheSCHULZ 7.5 HP Stationary Air Compressoris designed for demanding commercial and industrial applications requiring reliablethree‑phase powerand continuous air delivery. Powered by a7.5 HP WEG electric motor, this unit operates on208–230Vand delivers30 CFM and 175 PSI, making it ideal for automotive service shops, manufacturing facilities, and professional work environments. This compressor is equipped with aV‑Series two‑stage solid cast‑iron pumpthat runs cooler and lasts longer due to the space between each cylinder.Deep‑fin cast‑iron cylinders,oversized main bearings, andSwedish steel valvesprovide exceptional durability and efficiency.CNC‑machined componentsensure precise tolerances for smooth, reliable performance. Abelt‑drive system with standard notched beltsdelivers efficient power transfer, while theenclosed belt guardenhances operator safety. All major components arepowder‑coatedto resist rust and corrosion. The unit is mounted on an80‑gallon ASME‑certified vertical tank, providing high air capacity while conserving valuable floor space. Key Features & Benefits - 7.5 HPWEG electric motorfor commercial‑duty operation
- 208–230V, three‑phaseelectrical configuration
- 30 CFM and 175 PSIoutput for demanding air tools
- V‑Series two‑stage solid cast‑iron pump
- Cooler operation with spaced cylinder design
- Deep cylinder fins for enhanced heat dissipation
- Oversized main bearings for extended service life
- Swedish steel valves for efficient air delivery
- CNC‑machined components for precision performance
- Belt‑drive system withstandard notched belts
- Enclosed belt guard for improved safety
- Powder‑coated components resist rust and corrosion
- Integratedaftercooler
- ASME‑certified 80‑gallon vertical tank
Specifications - Product Number:932.9342
- Horsepower:7.5 HP
- Voltage:208–230V
- Phase:Three Phase
- Maximum Pressure:175 PSI
- Air Delivery:30 CFM
- Tank Size:80 Gallon
- Tank Orientation:Vertical
- Pump Type:V‑Series, Two‑Stage
- Weight:1,150 lbs
- Dimensions (L × W × H):48\" × 34\" × 78\"
Warranty - Unit Warranty:1 Year
- Pump Warranty:2 Years
|
|
