Exit check

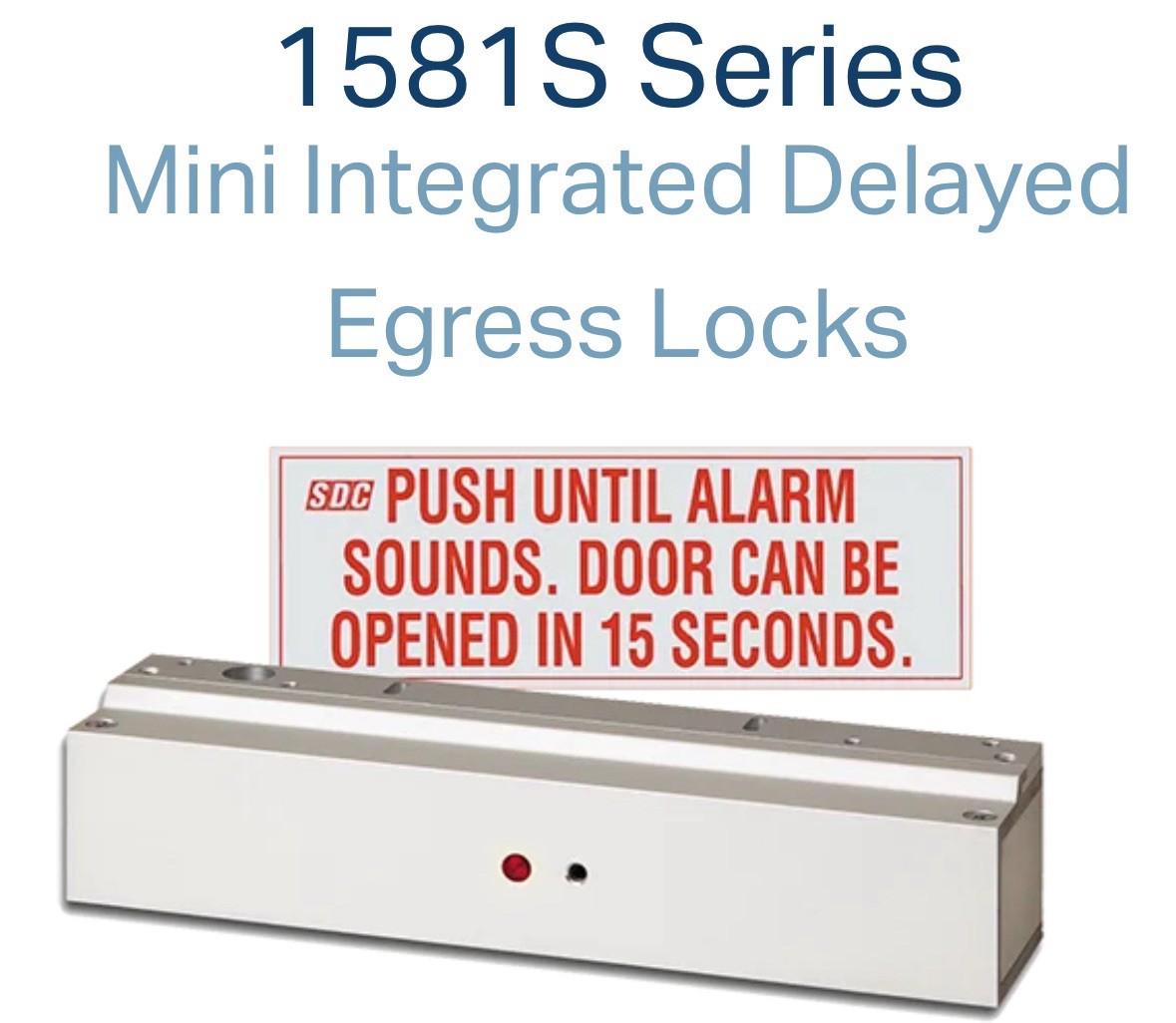

SDC-1581SNDV
The Mini Exit Check® is designed to meet the needs of long term care and commercial facilities that require a smaller, less obtrusive, and less expensive delayed egress lock that is better suited for minimum security needs. When unauthorized egress is initiated, the Exit Check® delays egress through the door for a period of 15 seconds. Meanwhile, the person exiting must wait allowing personnel or security respond. The door unlocks after the 15 second delay period has elapsed, permitting egress. A signal from the fire/life safety system will release the lock immediately for uninhibited egress in an emergency. Manual Power Up Feature requires a keypad adjacent to the device (Sold Separately)
Features:
* 650lbs Holding Force
* NFPA 101, Fixed 15 exit delay, 0/1 second nuisance delay.
* Optional Door position sensor. Indicates door open and door closed
* Subdued Alarm with 2 Distinct Tones: Alarm Activation Intermittent, Door Release
* Manual Power Up - Only after power restoration and fire panel reset may the lock be reset manually at the opening.
* Choice of Activation Trigger: Door Movement, Exit Device w/ REX Switch, Touch Sense Bar w/REX Switch
* Instant Reset from Bypass mode for interfacing with Patient Monitoring Systems.
* Self-aligning Vandal resistant Proximity Sensor Trigger
* Auto Sensing 12/24VDC input power
* Low Power Consumption
* 5 foot Power Cable
Operation Mode: 15 second fixed exit delay, 2 second nuisance delay.
Field selectable manual power up after emergency
release for California and OSHPD compliance
Sustained Bypass Input: 1 amp @ 30V resistive
Request to Exit: Normally open, dry
Fire Alarm Release: Alarm panel closed dry contact. Opening of contact
releases lock.
Alarm Output: SPDT Dry, 1 Amp @ 30VDC
Lock Secure Unlocked
Output: SPDT Dry, 1 Amp @ 30VDC
Voltage: 12/24VDC Voltage Auto Sensing
Current: 500mA @ 12VDC | 320mA @ 24VDC
Lock Dimensions: 10”L x 2”H x 2-3/8”D
Armature Dimensions: 7 3/8" L x 2 3/8" H x 9/16" D
Sign Dimensions: 13" L x 4 1/2" H
Finish: Satin Aluminum - 628
Certifications: ANSI / BHMA Grade 1 , UL Listed, UBC Compliant
