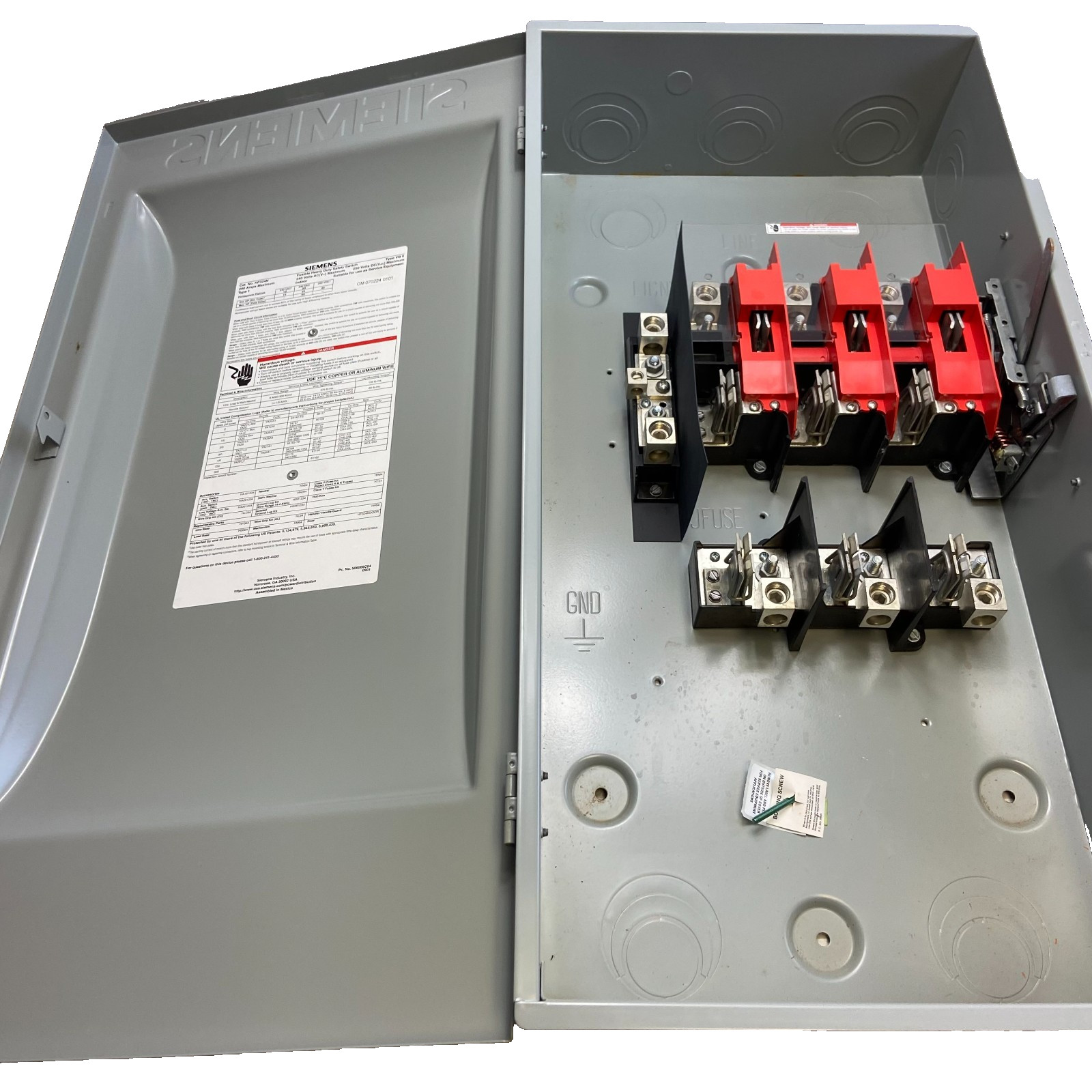

LineHeavy Duty Safety SwitchCatalog NumberHF324NDevice TypeFusible Heavy-Duty Safety Switch (Disconnect)Amperage Rating200 AVoltage Rating240V ACNumber of Poles / Wires3-Pole / 4-Wire (Solid Neutral Factory Installed)Fuse Class / TypeClass H (Standard); Convertible to Class J, R, or T with kitEnclosure RatingNEMA Type 1 (Indoor)Enclosure MaterialSteelShort Circuit Rating (SCCR)10 kA (Standard Class H) / Up to 200 kA (with Class R, J, or T fuses)Max HP Rating (3-Phase AC)15 HP @ 240V (Standard Fuse) / 60 HP @ 240V (Time-Delay Fuse)Max HP Rating (1-Phase AC)15 HP @ 240V (Time-Delay Fuse)Wire Range#6 AWG–300 kcmil (Cu/Al)Dimensions (H x W x D)Approx. 29.1\" x 17.1\" x 9.3\"Standards / ApprovalsUL Listed (UL 98), NEMA KS-1
Open Box:
\"New, unused, but packaging opened, not available or damaged.
Item :
- Has never been used or powered
- May have minor cosmetic imperfections
- Packaging damage does not affect product performance\"
