Manufacturer Part Number: MWR-WG01UN

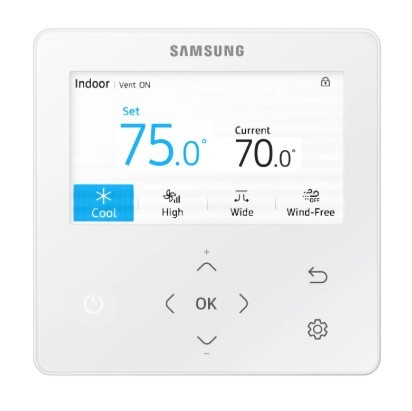

The Samsung MWR-WG01UN is a versatile wired wall thermostat designed for comprehensive control of Samsung HVAC systems. It offers an intuitive interface with a color display, supporting functions such as ON/OFF control, operation mode selection, set temperature adjustment, fan speed, airflow direction, and discharge air temperature (for supported models). Additional features include filter replacement alerts, quiet/sleep modes, Freeze Wash activation, dual set temperature control, error code display, and synchronization with central controllers. It also supports AP mode for connecting built-in Wi-Fi adapters to SmartThings, allowing Wi-Fi management and reset functions directly from the thermostat.
Ideal for both residential and light commercial use, the MWR-WG01UN includes robust energy-saving options like temperature limits, occupied/unoccupied settings, setback control, and detailed energy usage monitoring over daily to yearly periods. Users can program weekly operating schedules with exception days and enjoy advanced features such as WindFree control, motion sensor integration, real-time clock, emergency heat indication, partial button locks, and firmware updates via Micro SD card. The thermostat also supports individual louver and air volume control for select indoor units, making it a powerful and flexible climate control solution.
Key Features
- Full control of indoor unit settings (mode, temperature, fan, airflow)
- Wi-Fi setup and SmartThings integration support
- Advanced energy-saving and consumption monitoring features
- Weekly scheduling with exception day option
- Error code display and firmware updates via Micro SD card
Key ParametersCompatible ModelsAJ009TNNDCH/AA, AJ012TNNDCH/AA, AJ018TNNDCH/AA, AJ009TNJDCH/AA, AJ012TNJDCH/AA, AJ015TNJDCH/AA, AJ018TNJDCH/AA, AR15TSFABWKNCV, AR18TSFABWKNCV, AR24TSFABWKNCV, AR07TSFABWKNCV, AR09TSFABWKNCV, AR12TSFABWKNCV, AR07TSFYBWKNCV, AR09TSFYBWKNCV, AR12TSFYBWKNCV, AR15TSFYBWKNCV, AR18TSFYBWKNCV, AR24TSFYBWKNCV, AM009FNNDCH/AA, AM012FNNDCH/AA, AM018FNNDCH/AA, AM020FNNDCH/AA, MIM-F00N, MCM-D211UNAdditional Features7-Day ProgrammableElectrical SpecificationTypical or Max Power (W)2.0Mechanical SpecificationDimensions (Inches)4.8 x 4.8 x 0.8Weight1.0 lbPlease message us for questions on the specs.
