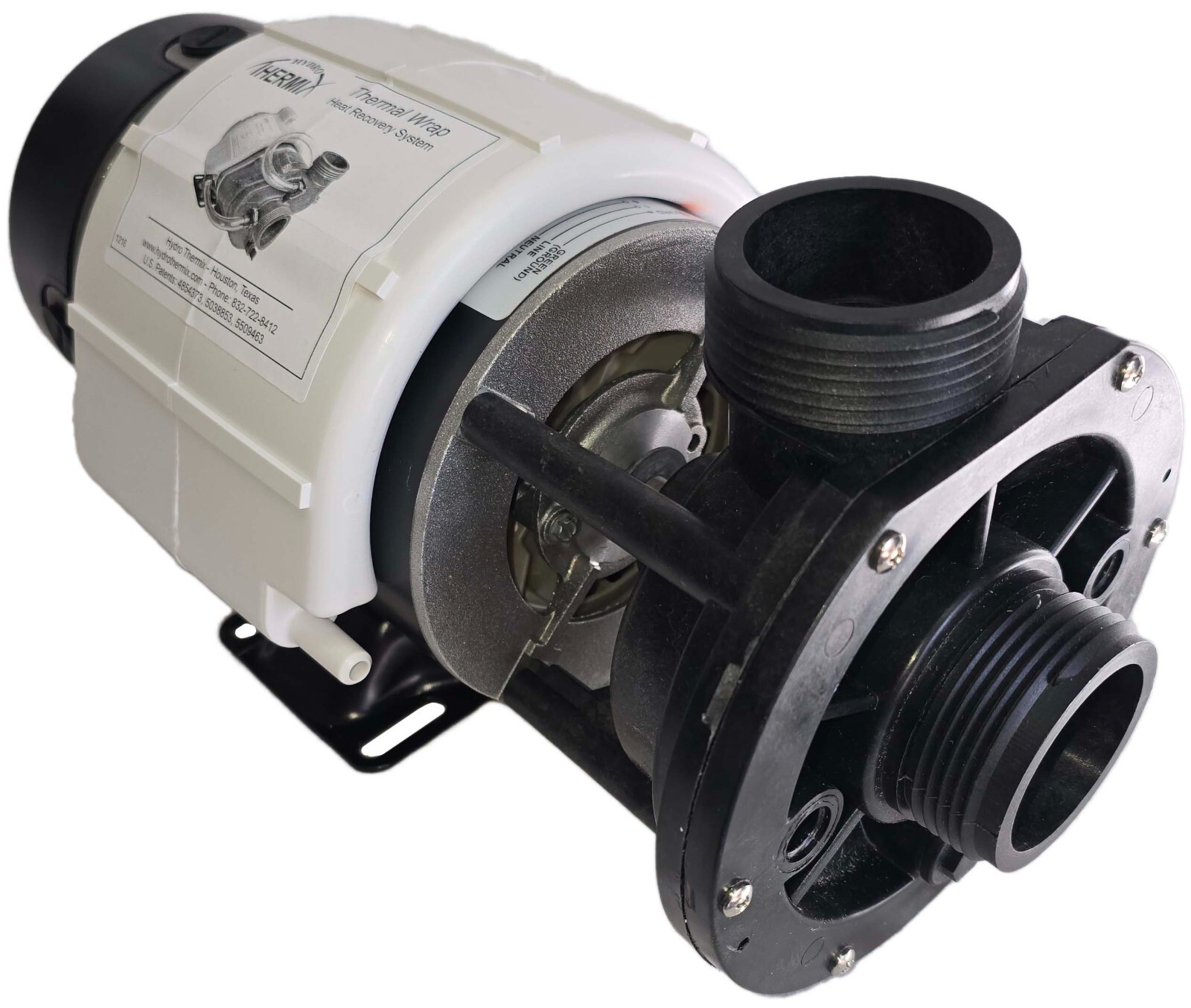

Softub Pump: 1.5HP (SPL) 12 Amps, 1 Speed with Thermal Wrap (replaces coil wrap) For Sale

Softub Pump Replacement: 1.5HP (SPL) 12 Amps, Single (1) Speed with Original Thermal Wrap Heater Recovery Jacket by "Hydro Thermix"

More Than 3,000 Sold For Softub Applications

Our system is the original heat recovery solution, designed over 35 years ago to replace your existing coil-wrapped motor with our patented "Thermal Wrap" Heat Jacket—all for a lower cost. ***Made In The USA!***

Please be aware that not all Thermal Wrap Heat Jackets are alike. We would like to caution you regarding imported versions (identifiable by their black color) currently on the market, as they feature inferior quality and poor performance.
James Callaway

This System/Listing Includes:

Motor & Pump with Pre-installed Thermal Wrap

Descriptions:

Motor:
Manufacture: Century / A.O. Smith / Single Speed Motor
Horse Power: 1 Service Factor 1.0 (1.5hp SPL)
Volts: 115
Amps: 12
RPM: 3450
Frame: 48Y
HZ: 60
Stainless Shaft
Thermally Protected

Pump: (pre-installed on motor)
Mfg: Aqua-Flo
P/N: 91040810 - FMCP Series
1 HP (1.5HP SPL)
1 1/2" Center Suction x Center Discharge - pump threads fit your existing 1.5" pump disconnects/unions.

1) Thermal Wrap Heat Jacket: Pre-installed on motor (top port on Thermal Wrap is plugged and not used for Softub applications)32") 3/8" ID Tubing (for making tubing connections between the 2 ports on Thermal Wrap to your existing coil/hose ports in your plumbing)4) Tubing Clamps
Warranty: 2 years manufactures warranty applies to pump and motor. Life time warrant applies to Heat Recovery Jacket.

Note: For 220/230 Volt SoftubPump Replacement

• Typically used in "European"markets:Search item numbers:113836659655 &115972040006 (for XP2e)
• 1 HP, *** 230 Volts ***, 50HZ, Single Speed with Pre-Installed "Thermal Wrap" Heater class="MsoNormal" style="font-family: Arial; font-size: 14pt; margin: 0in 0in 0pt;">More about the Thermal Wrap - Heat Transfer System:



  Tub water circulates througha serpentine path in the Thermal Wrap,

  collecting theheatgenerated by the pump/motor and recycles that heatto the tub water -were it belongs!




  Thispatented heating system for hot tubs/spas and Whirlpool Baths,


  capturesand recycles the waste heat "energy" produced by the pump/motor and delivers that heat to the hot tub or bath water.


  The Thermal Wrap system will heat and maintain water temperature.

  The system allows the motor to run cooler; increasing the motors longevity and efficiency.

  There are no moving parts and nothing to wear out. Made in the USA!




  Efficient:

  - Patented design, over 1,000,000 in use

  - Special thermal conductive inner heat transfer liner

  - Models available for most 48 frame thru bolt spa/hot tub and jetted bathtub pumps




  Economical:

  - Maintenance free - no moving parts to wear out

  - Helps keep motor cooler - increases motor longevity and efficiency

  - Cost less than electric heaters

  - No additional electrical circuits required for installation




  Safe:

  - Manufactured of non-conductive materials

  - Non electrical

  - Self draining design (required for whirlpool bath application)




  Note: If the pump/connections pictured above do not exactly match the pump have?

  Give me a call to discuss your application, we either have the pump you need or have other available options that will work for your application.





  Replacement pump andmotorwith the Thermal Wrap serves as the only heat source for many spas including:

  Quantum,Dreammaker, FreeFlo, PDC spas, Softub and others.

  Can be used and retrofitted to work withmost spas requiring 1 hp single speed, 3450rpm, 115volts pump motor.




  Even if you have an electric heater on your spa, the Thermal Wrap System will compliment your electric heater by capturing the waste heat

  generated byyour pump motor and delivering that heat to the tub water, saving you money with heating costs.

  The Thermal Wrap will help maintain water temperature during normal filtering and heating cycles and while using your spa in high speed jet action.
