Solar Disconnect Switch 32 Amp DC 500V Circuit Breaker with Lightning Surge Protector Arrester and IP65 Breaker Box Plug-And-Play for Outdoor Solar Panel SystemDescription Number of Items 1 Included Components circuit breaker, surge protector, IP65 box, PV connectors, mounting screw Item Weight 0.89 kg Model 1E 1S DC500V 32A Part Number LQX-A4-MS-32A Maximum Current 32 A Number Of Circuits 1 Phase Type Single Phase Item Dimensions L x W x H 11.18"L x 5.51"W x 3.94"H Material Type Acrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC) Product Dimensions 11.18"L x 5.51"W x 3.94"H AC Adapter Current 32 A Material Acrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC)

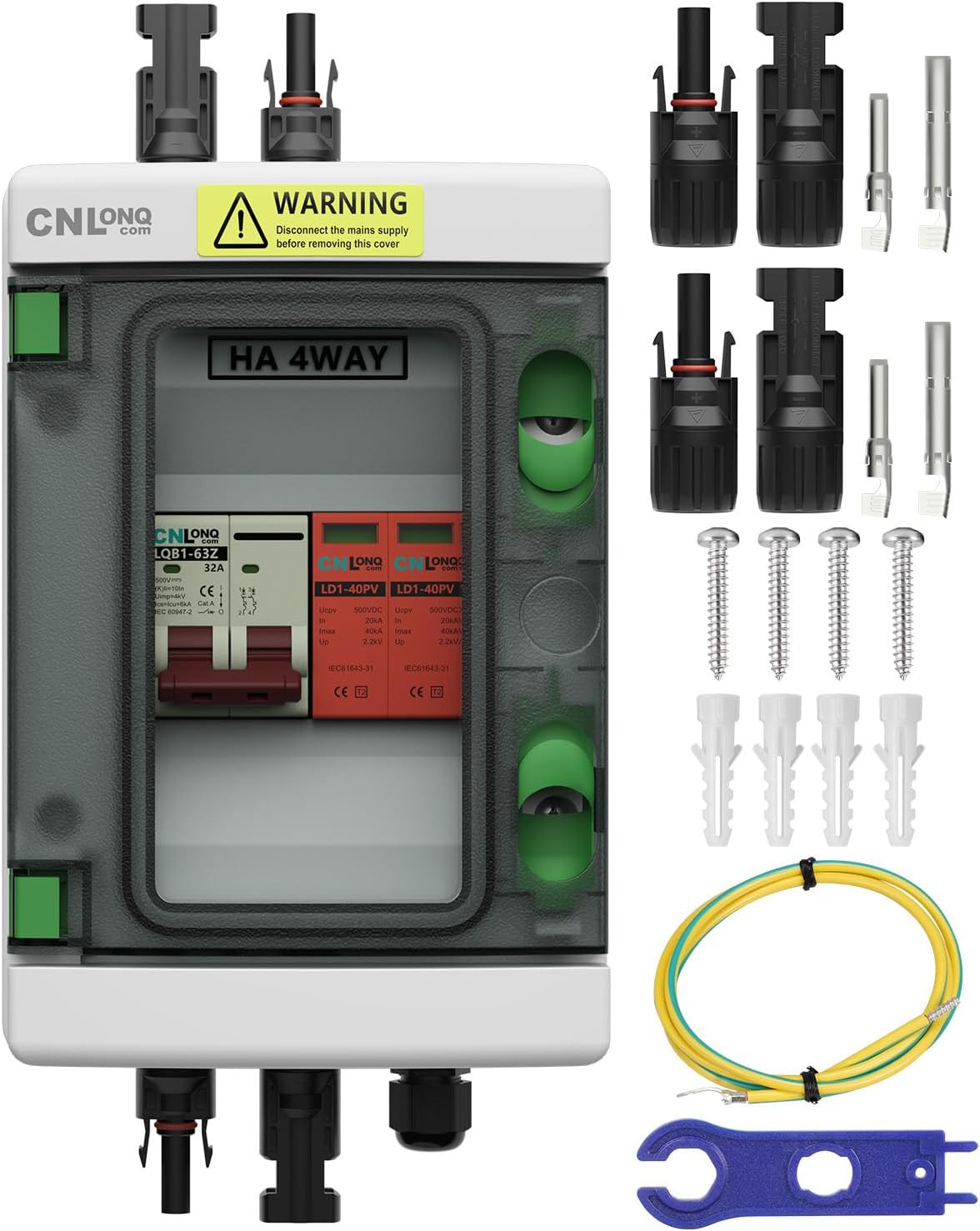

Product description The video showcases the product in use.The video guides you through product setup.The video shows the product being unpacked. aplus content video Package Includes MCB,SPD, IP65 Box, 2 sets of MC-4, 4 x Screws, 4 x Expansion tubes, Wrench, Grounding wire Rated Current 32 Amp Rated Voltage DC 500V String 1 in 1 out Lightning protection Yes Max Discharge Current 40kA Size L*W*H: 11.18*5.51*3.9 inch Box Material PC+ABS Protection Rating IP65 Ambient Temperature -13°F(-25℃) ~ 140°F(60℃) Standard IEC60947-2 / GB14048.2 Mechanical Durability 20000 Cycles Electrical Durability 6000 Cycles Installation Wall Mount - Screw Fixation 1 IP65 2 Characteristics Of MCB 3 Characteristics Of SPD 4 Cable Crimp 5 Certification 1 Size 2 Wall Mount 3 Connect wire 4 Application 5 Brand

• Is the product safe and reliable?

  All the products have passed the quality inspection and are able to safely protect your circuits from accidents.

• What are the certifications?

  CE, IP65, ROHS, ISO certifications have been obtained and more will be obtained in the future.

• Can it be used outside?

  Yes, it is IP65 waterproof and can withstand stormy weather or sandy conditions.

• What are the advantages over other combiner box on the market?

  We have been engaged in research and development of PV protection systems since 2002, which makes us a source factory of PV protection equipment with price and quality advantages. So we have better quality and affordable price.

• What should I do if I have a problem?

  Please feel free to ask us, we will be happy to help you and answer all your questions!

• [Circuit Breaker]: Suitable for DC500V and circuits up to 32A, short circuit protection, overload protection. Wiring without polarity design, top in and bottom out, bottom in and top out free choice
• [T2 Surge Protector]: 20kA/40kA 2P DC500V, with 6mm thick shielded storm chip, removable module design, red indicator light when need to replace components
• [IP65 Junction Box]: The shell is made of PC+ABS engineering plastics, long service life, IP65 waterproof and dustproof, UV resistant, flame retardant. Transparent observation window, easy to observe the working status
• [Plug and Play]: Equipped with photovoltaic connectors, using the corresponding male and female connectors can be directly connected
• [Wide application]: The device is suitable for grid-connected and off-grid solar energy systems, for power protection in solar arrays, Rv, homes, outdoor and other PV systems.
