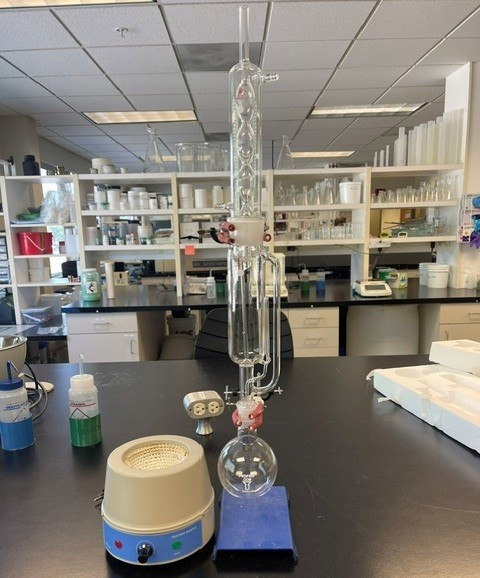

Soxhlet Extraction System Set Glassware Condenser Flask (500mL) & Heating Bath For Sale

Complete 500mL Soxhlet Extraction System Set is the industry standard for continuous solid-liquid extraction. It is engineered to efficiently isolate targeted chemical compounds, lipids, or essential oils from solid matter using minimal solvent recycling.Connection via precise leak-resistant ground glass joints.
Included in a Complete Set

1. 1x 500mL single-neck boiling flask.
2. 1x 500mL middle extraction section featuring the siphon and vapor bypass tracks.
3. 1x Water-jacketed Allihn glass condenser.

Glassware & Kit Components

• Glass Material: G3.3 Low-Expansion Borosilicate Glass.
• Boiling Flask Capacity: 500 mL (Flat-bottom or Round-bottom variants).
• Boiling Flask Outer Diameter: ~104 mm.
• Soxhlet Extractor Body Capacity: Usually holds 200 mL to 250 mL to the top of the siphon tube.
• Standard Ground Glass Joint Mapping:
  • Bottom Joint (Flask to Extractor): 24/40 or 24/29
  • Top Joint (Extractor to Condenser): 45/40, 55/50, or 50/42
• Condenser Type: High-efficiency Allihn (with 4 to 5 cooling bulbs) or Graham style.
• Hose Barb Tubulation Connections: 8 mm to 10 mm Outer Diameter (O.D.) for cooling water lines.
• Thimble Size Accommodation: Requires 45 mm x 130 mm or 35 mm x 90 mm cellulose/glass extraction thimbles.

Heating / Water Bath Unit

• Electrical Input Requirements: 110V–120V AC, 60 Hz or 220V–230V AC, 50 Hz.
• Nominal Power Consumption: 350 Watts to 500 Watts for a single-place setup.
• Temperature Operational Range: Ambient +5°C up to 425°C – 450°C (maximum heat core performance).
• Glassware Heat Tolerance: Glass safely tolerates sustained operational thermal loads up to 250°C.
• Control Mechanism: Microprocessor-controlled PID digital thermostat display with ±0.1°C resolution

Physical Dimensions & Weight (Assembled)

• Total Vertical Setup Height: Approximately 31.6 inches (803 mm) from the bottom of the flask to the top tip of the condenser column.
• Total System Weight (Glassware Only): ~2.2 lbs (1,000 grams).
• Total System Weight (With Dedicated Water Bath Base): ~12 to 15 lbs (~5.4 to 6.8 kg) depending on the bath casing chassis.
