Recommended for various Automotive and Industrial Applications
Stainless Steel, Material no. 1.4301/UNS S30400

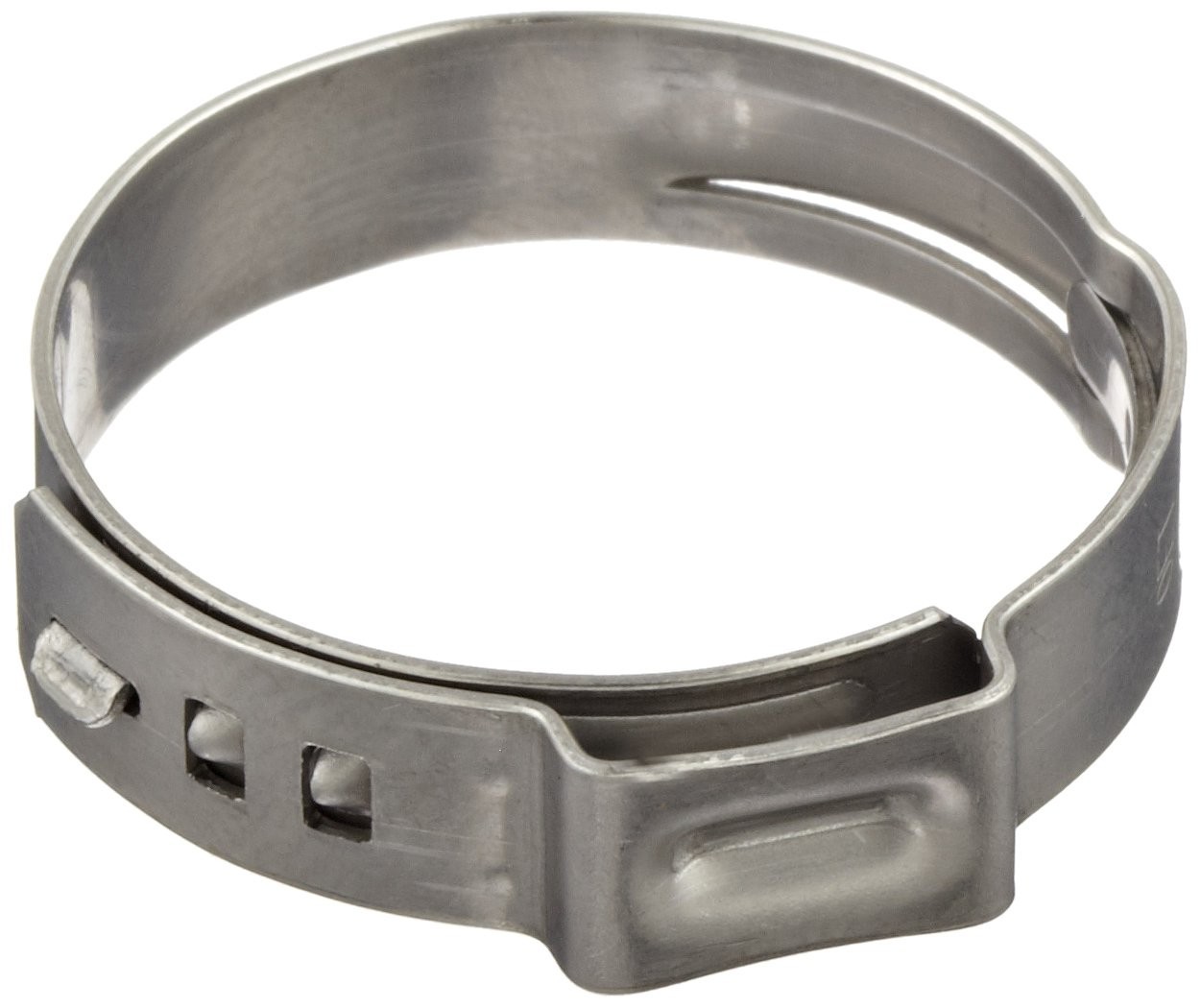

Oetiker 167 Series Stepless® Ear Clamps provide a secure and reliable clamping solution for various applications. Their stepless design ensures a uniform compression around the hose or tubing, minimizing the risk of leaks and ensuring a tight seal. Made from high-quality materials, these clamps offer exceptional durability, strength, and resistance to corrosion, making them suitable for automotive, industrial, marine, and home use.
Key Features
- Stepless Design: Ensures uniform compression for a tight and secure seal.
- High-Quality Construction: Crafted from durable materials for long-lasting performance.
- Corrosion Resistant: Ideal for use in harsh environments.
- Versatile Applications: Suitable for automotive, industrial, marine, and home use.
- Easy Installation: Simple to install with standard clamp tools.
- Reliable Performance: Ensures a strong grip under various conditions.
Selection: Measure the outside diameter (O.D.) of the hose to be clamped. Select a clamp with an average size range that is close to the hose’s O.D. An optimal clamp size will allow the hose’s O.D. to fall in the middle of the clamp’s size range.
Clamping Procedure: After assembling the hose, use an Oetiker® ear clamping tool to compress the clamp’s first ear, followed by clamping the second. The clamp’s ears should be reduced in size by at least 40% to provide enough clamping force. If sized correctly, the clamp’s ears should not close completely during compression.Clamps are listed by open inside diameter - See full range and OEM P/N in table below:
CLAMP SIZEOETIKER PART NUMBERRANGE (mm) CLOSED-OPENRANGE (in) CLOSED-OPENBAND WIDTH6.5 mm167024885.3 - 6.5.209 - .2565 mm7 mm167000015.8 - 7.0.228 - .2765 mm8.7 mm167000037.0 - 8.7.276 - .3435 mm9.5 mm167000047.8 - 9.5.307 - .3745 mm10 mm167000058.3 - 10.0.327 - .3945 mm10.5 mm167000068.8 - 10.5.346 - .4135 mm10.9 mm167024929.2 - 10.9.362 - .4295 mm11.3 mm167000079.6 - 11.3.378 - .4455 mm11.8 mm1670000810.1 - 11.8.398 - .4655 mm12.3 mm167000099.8 - 12.3.386 - .4847 mm13.3 mm1670001010.8 - 13.3.425 - .5247 mm14 mm1670001211.5 - 14.0.453 - .5517 mm14.5 mm1670001312.0 - 14.5.472 - .5717 mm15.3 mm1670001512.8 - 15.3.504 - .6027 mm15.7 mm1670001613.2 - 15.7.520 - .6187 mm16.2 mm1670249413.7 - 16.2.539 - .6387 mm17 mm1670001714.5 - 17.0.571 - .6697 mm17.5 mm1670249715.0 - 17.5.591 - .6897 mm18.5 mm1670002015.3 - 18.5.602 - .7287 mm19.8 mm1670249816.6 - 19.8.654 - .7807 mm21 mm1670002417.8 - 21.0.701 - .8277 mm22.6 mm1670002619.4 - 22.6.764 - .8907 mm24.1 mm1670002920.9 - 24.1.823 - .9497 mm25.6 mm1670003122.4 - 25.6.882 - 1.0087 mm27.1 mm1670003323.9 - 27.1.941 - 1.0677 mm28.6 mm1670003525.4 - 28.61.000 - 1.1267 mm30.1 mm1670204726.9 - 30.11.059 - 1.1857 mm31.6 mm1670563728.4 - 31.61.118 - 1.2447 mm33.1 mm1670496729.9 - 33.11.177 - 1.3037 mm34.6 mm1670416931.4 - 34.61.236 - 1.3627 mm36.1 mm1670513432.9 - 36.11.295 - 1.4217 mm38.1 mm1670500034.9 - 38.11.374 - 1.5007 mm41 mm1670598937.8 - 41.01.488 - 1.6147 mm42.5 mm1670582839.3 - 42.51.547 - 1.6737 mm48.5 mm1670496845.3 - 48.51.784 - 1.9097 mm
