What this part is:Timken 33895-903A1 is a Class 3 single-row tapered roller bearing (TS) made up of the 33895 cone and the 33821 cup. Bore Diameter: 2.1250 in (53.975 mm). Outside Diameter: 3.7500 in (95.250 mm). Total Width: 1.0938 in (27.783 mm). Rolling Elements: Tapered Roller.
Decoding the designation:33895 — Timken cone (inner ring, rollers and cage), 2.1250 in bore, 33800 series.
33821 — Timken single cup (outer ring), 3.7500 in OD.
-3 / *3 — Timken Class 3 precision: tighter tolerance and lower running runout than standard Class 2.
903A1 — Timken assembly number for this Class 3 cone and cup pairing.
What these specs mean in practice:Dynamic Load Rating: 130,000 N (C1, 1 million revolutions, ISO). Dynamic Load Rating C90: 33,600 N (90 million revolutions, Timken method). Dynamic Axial Rating Ca90: 19,000 N. Static Load Rating: 161,000 N. e Factor: 0.33. Y Factor: 1.82. K Factor: 1.77. Precision Class: Class 3. Item Weight: 0.8 kg (1.8 lb).
Mounting data:Cone Width: 1.1250 in (28.575 mm). Cup Width: 0.8750 in (22.225 mm). Effective Load Center: -0.3 in (-7.6 mm), inside the cone backface. Max Shaft Fillet Radius: 0.060 in (1.5 mm). Max Housing Fillet Radius: 0.090 in (2.29 mm). Shaft Backing Shoulder Diameter: 2.36 in (60 mm) frontface, 2.48 in (63 mm) backface. Housing Backing Shoulder Diameter: 3.56 in (90.42 mm) frontface, 3.35 in (85.09 mm) backface.
Quantity and configuration:Cone and cup assembly: one 33895-3 cone with one 33821-3 cup, single row, adjusted at mounting.
Cross-reference guidance:33895/33821 is an ABMA inch-series set also built as NTN 4T-33895/33821, Koyo 33895/33821, SKF 33895/33821/Q and NSK 33895/33821. Those references share the same cone and cup numbers; the Class 3 grade is specific to this Timken assembly.
Fast, reliable MRO solutions when you need them most.
Large In-Stock Inventory: New industrial, bearings, power transmission, and automation parts.
Same-Day Shipping: Orders ship quick with next-day and international options available.
Expert Support: Cross-referencing and part location ensuring you get the exact match, fast.
Direct Pricing: Get new OEM components at highly competitive rates.
MESSAGE US class=\"ql-align-center\">Choose your shipping speed; next-day and expedited options are available at checkout.
Handling Time: Orders are processed and shipped the same day.
International shipping available on all orders.
Ship on your account, collect shipping accepted (UPS, FedEx, DHL, Freight).
Competitive prices are guaranteed.
The following payment methods are offered at checkout on .com:
- PayPal / PayPal Credit
- Credit card or debit card
- Apple Pay
- Google funds
- Payment upon pickup
- Wire transfer facilitated by (select categories only)
- gift card or voucher or Bucks
Free returns: accepted within 30 days
Return options: money back, replacement
Refer to Return policy for more details.
You are covered by the Money Back Guarantee if you receive an item that is not as described in the listing.
We can instantly Cross-Reference:
- Bearings
- Power Transmission Parts
- Hydraulic / Pneumatic
- MRO Products
- PLC / Electromechanical
- Most Industrial Supplies
To any direct interchanges, alternate parts, equivalents, substitutes
international shipping is fast, reliable, inexpensive.
We can ship using your carrier account.
Expedited, express, next-day shipping available on international shipments.
All of our parts are Plants
We take great care to source all of our parts from trusted and reliable inventory holders.
We ship out 99% of orders the same day.
All orders placed before 6pm EST are processed same day.
No handling charge on any orders.
We hope you will love your purchase, however if you need to return it, we have a 60 day return policy.
FEATURED PRODUCTS
NTN 7208B Bearing 40x80x18 mm 7208BL1G 7208-B-L1-G 7208-B-MP
$32.89 McGill MI-64 Needle Bearing Inner Ring 4.0000x4.9985x2.2600\" MI 64 MI64 for MR
$57.36 Timken 15126/15244 Taper Bearing Cone & Cup 1-1/4\" ID 2-7/16\" OD 15126 15244
$32.55 SNR 7208BGA Bearing 7208B 7208-B-G-A 40x80x18 mm
$32.89 SLF B71906E.T.P4S.UL Spindle Bearing 30x47x9mm 25 Deg UL B71906-E-T-P4S 3MM9306
$96.47 INA ZM20 Precision Bearing Lock Nut M20x1 32mm OD 10mm W ZM-20 ZM 20
$31.99 FAG HC7008-C-T-P4S-UL Angular Bearing HC7008CTP4SUL Hybrid Ceramic 40x68x15mm
$285.34 NTN 7017CDG2/GNP4 Angular Contact Bearing 85x130x22 mm 7017C 7017-C-DG2-GN-P4
$118.59 Fafnir 2MM214WICR-DUL Bearing 70x125x24 mm 7214C 2-MM-214-WI-CR-DUH 2 Pcs
$338.57 NSK N1014BTKRCC1P4 Cylindrical Roller Bearing Tapered Bore 70x110x20mm P4 N1014
$298.47 FAG R410 Cylindrical Roller Bearing 110x240x50 mm R-410 Brass Cage
$245.52 SKF 2209-EKTN9/C3 Self Aligning Bearing 2209 E K TN9 C3 2209K 45x85x23 mm
$48.47 Add suggested items to your listings - Check it out on 3Dsellers.com listing template by 3Dsellers.com - Try for Free!

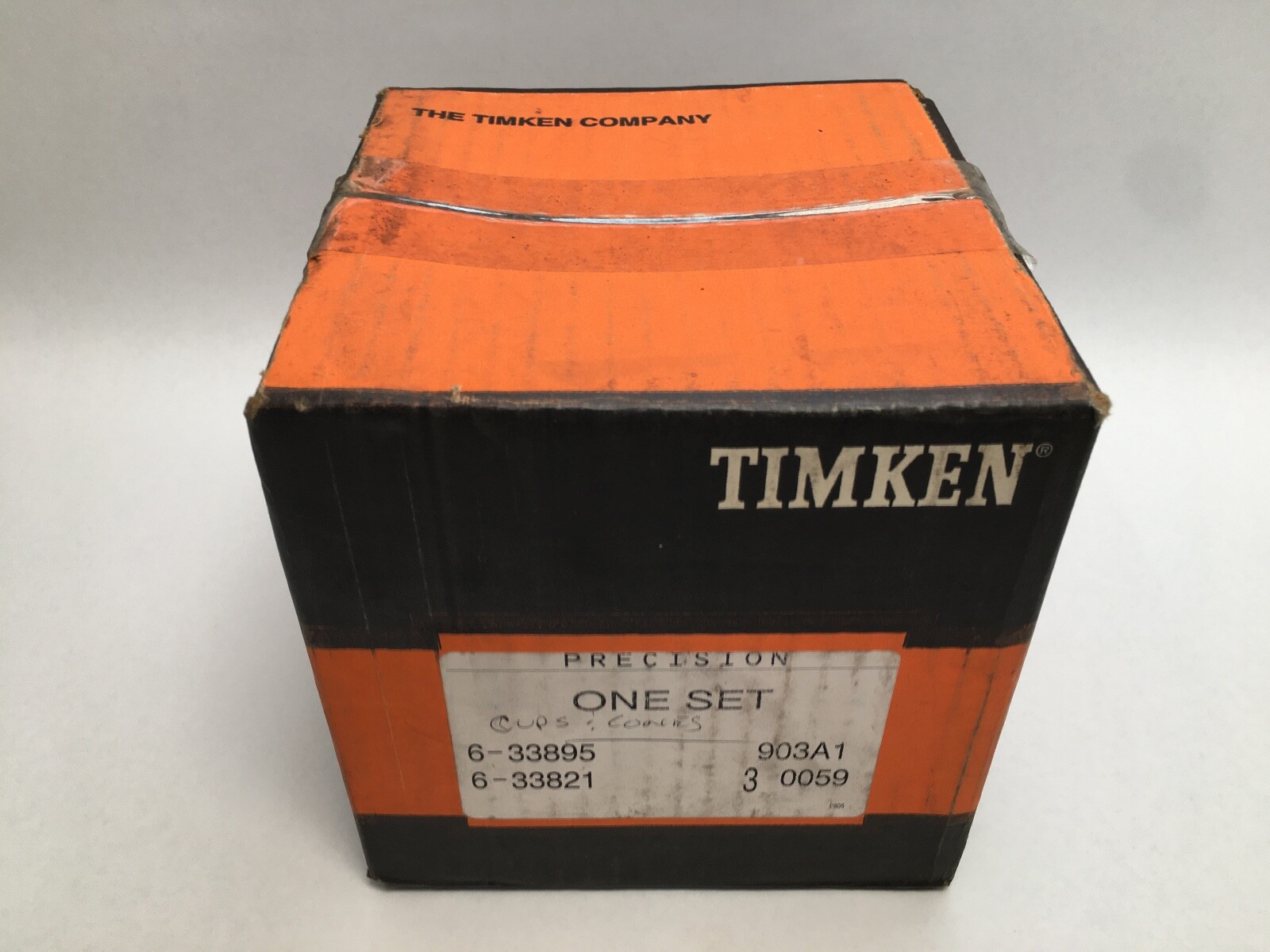

![Timken 33895-903A1 Taper Bearing Cone&Cup 2-1/8\](img-large/g/VnAAAOSw9Mlk72zq/s-l1600/Timken-33895-903A1-Taper-Bearing-Cone-Cup-2-1-8-ID.jpg "Timken 33895-903A1 Taper Bearing Cone&Cup 2-1/8\")
