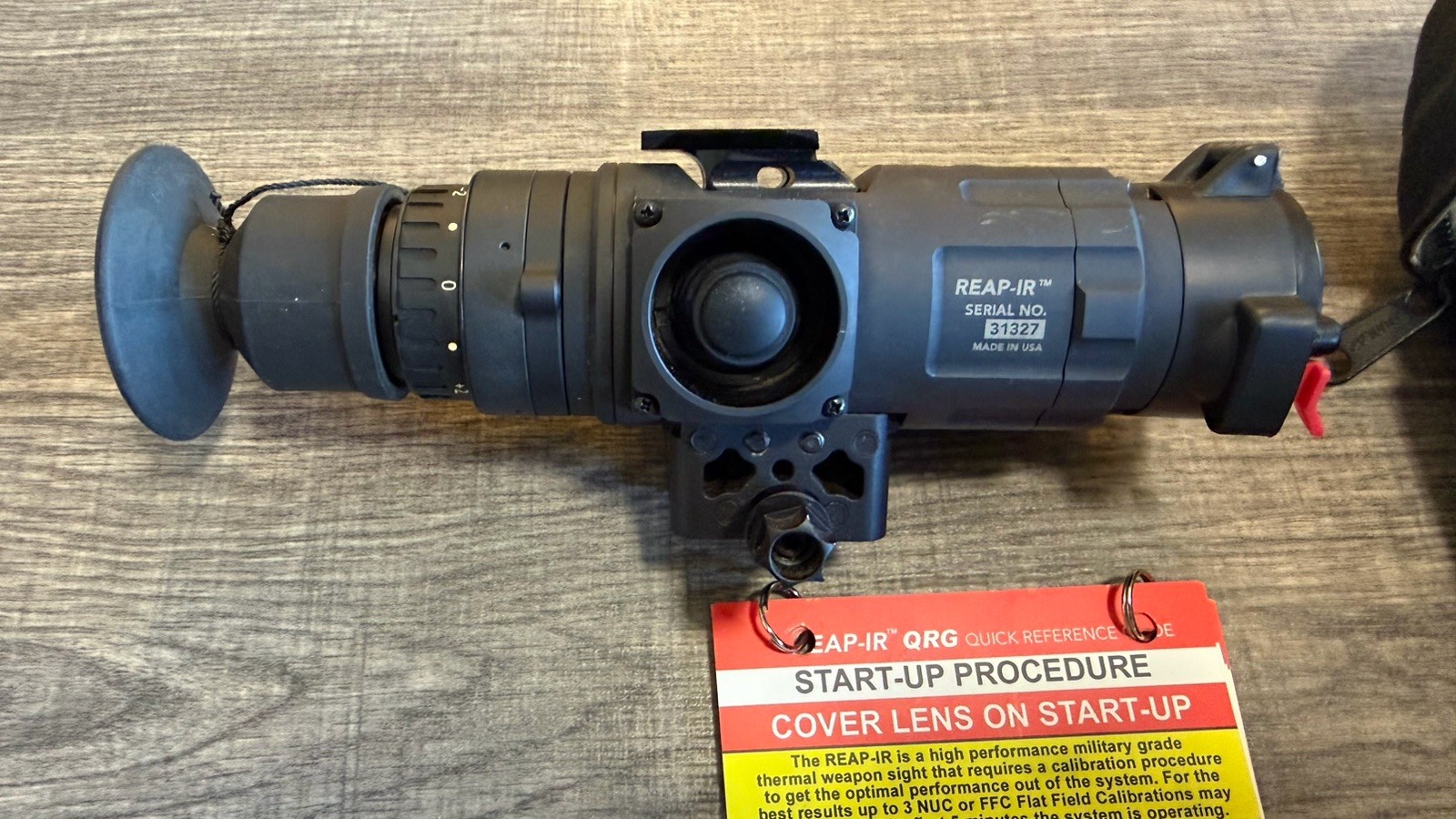

REAP-IR / IRMS-35Sensor: Uncooled VOx (Vanadium Oxide) microbolometer, 640 × 480 resolution, 12 μm pixel pitch (leading-edge at the time; sharper than common 17 μm systems)
• Thermal Sensitivity: < 50 mK
• Frame Rate: 60 Hz (with 30 Hz power-save mode option)
• Spectral Response: 8–12 μm (LWIR)
• Optical Magnification: 2.5×
• Digital Zoom: Up to 8× (E-Zoom)
• Lens: 35 mm f/1.14 objective
• Field of View (base): 12°
• Display: 640 × 480 digital OLED
• Eye Relief: 27 mm
• Diopter Adjustment: -6 / +2
• Battery: 2 × CR123A (or extender option)
• Battery Life: ~3.5 hours at 60 Hz; ~5 hours at 30 Hz
• Weight: 20.8 oz (590 g)
• Dimensions: 6.5” L × 3.0” H × 2.95” W (approx. 165 × 76 × 75 mm)
• Start-up Time: ~5 seconds
• Video Output: Analog RS-170 (via optional cable; no onboard DVR on this generation)
• Mount: Mini D-LOC quick-release Picatinny rail mount
• Operating Temperature: -40°C to +55°C (-40°F to +131°F)
• Storage: -45°C to +75°C
• Other Features:
• Polarity modes (multiple white-hot / black-hot levels)
• Digital Contrast Enhancement (DCE)
• Digital Focus Control (DFC)
• Stadiametric rangefinder
• Multiple reticles (simple + complex)
• Digital MOA adjustments with 4 save locations
• Edge Detect mode (lower brightness to reduce eye fatigue)
• Submersion/weather resistant (MIL-spec rugged)
