FOUR LAKES INSTRUMENTS
Tested to 5.9 mTorr · Dual-voltage 120/240 VAC · Very quiet 55.1 dB(A) · KF25 ports · Ships from Madison, WI
At a Glance: Used, oil flushed & cleaned · Verified 5.9 mTorr · Dual-voltage 120/240 VAC, works worldwide · Quiet 55.1 dB(A) · Low draw 2.58 A · Not rebuilt, sold in tested working condition Item Description

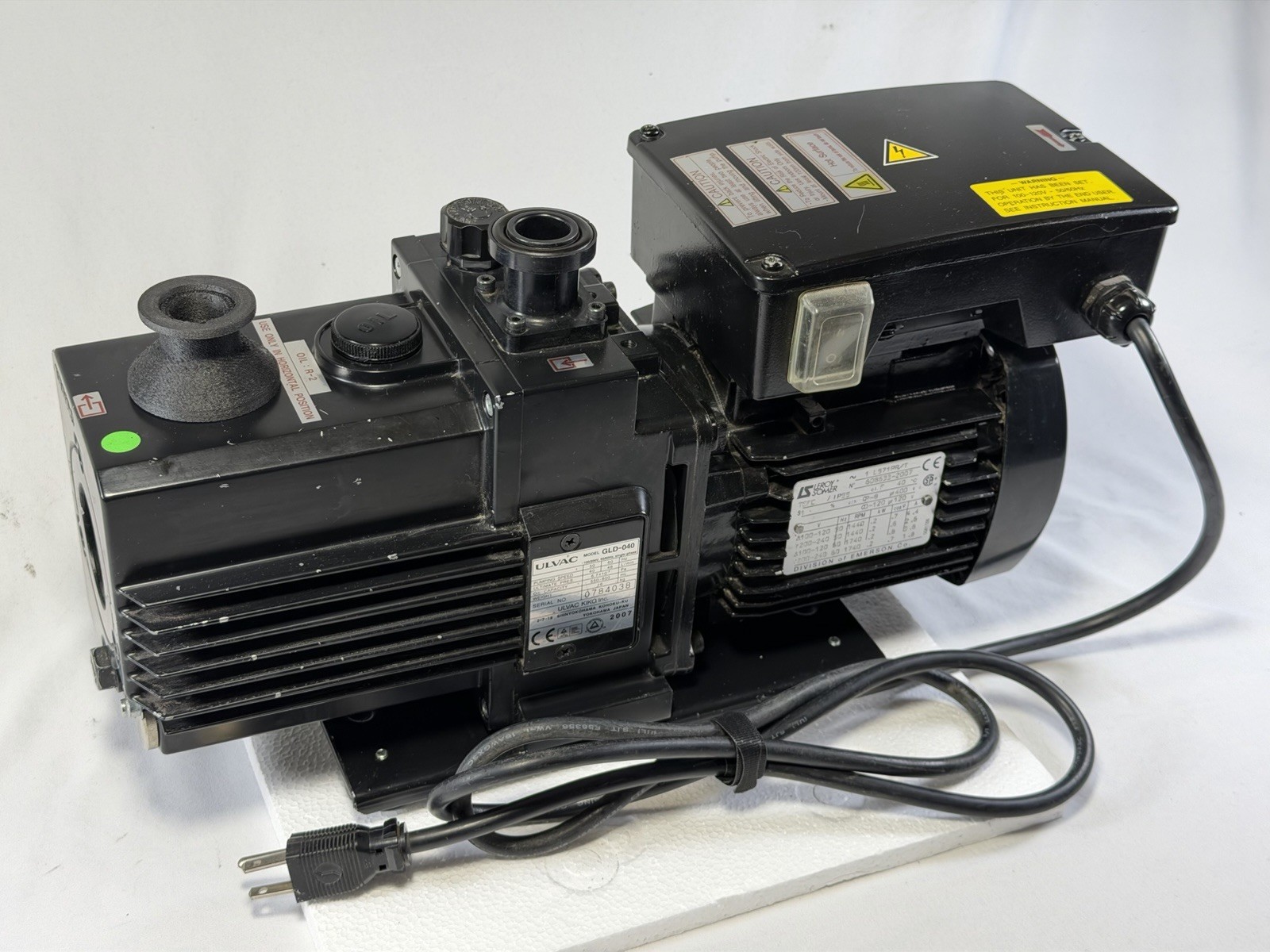

This Ulvac GLD-040 direct-drive oil-sealed rotary vane vacuum pump (manufactured 2007) has been oil-flushed, cleaned, and bench-tested. It reached a verified ultimate vacuum of 5.9mTorrdrawing2.58 A, and measured under 55.1 dB(A) at 1 meter. This unit has not been rebuilt — it is sold as a cleaned, tested, fully functional used pump. The GLD-040 is Ulvac's smallest GLD-series pump: compact, low-vibration, low-noise, with an integrated oil mist trap and anti-suckback protection. Its dual-voltage 120/240 VAC motor plugs into standard outlets on either voltage system with no conversion needed.
Tested & Verified
Before listing, this pump was oil-flushed, cleaned, run, and its ultimate vacuum measured on a factory-calibrated KJLC 275i Convection-Enhanced Pirani gauge. It reached 5.9 mTorr, drew 2.58 A on a Kill-A-Watt usage meter, and measured 55.1 dB(A) on an Extech 407730 sound level meter at 1 meter. The pump starts cleanly, runs smoothly, and holds vacuum.
Manufacturer Specifications
- Model: Ulvac GLD-040
- Serial Number:0784038
- Manufacture Date: 2007
- Type: Direct-drive, oil-sealed rotary vane pump
- Pumping Speed: ~40–48 L/min (1.4–1.7 CFM), 50/60 Hz
- Ultimate Pressure (rated):~5 mTorr, Pirani
- Measured Ultimate (this unit):5.9 mTorr
- Inlet/Exhaust Port: KF25 (NW25)
- Motor: 120/240 VAC dual-voltage, single-phase, 1/4 HP, 50/60 Hz
- Power Connection: Hard-wired IEC plug
- Weight: ~35 lbs
Test Data Test Parameter Result Ultimate Vacuum*, 1 Hour5.9 mTorr Motor Current Draw**2.58 A Noise Level***55.1 dB(A) @ 1 m Oil Leak TestPassed: no visible leaks Run Time Test60+ minutes continuous
*Vacuum measured with a factory-calibrated KJLC 275i Convection-Enhanced Pirani gauge
**Current draw measured with a Kill-A-Watt usage meter
***Sound level measured with an Extech 407730 sound level meter
Ideal For
- Backing pump for electron microscopes and analytical instruments
- Chemistry, analyzer, and laser system vacuum
- Vacuum dryers and freeze dryers
- Small-chamber and benchtop laboratory vacuum
What's Included
- 1x Cleaned & tested Ulvac GLD-040 pump S/N 0784038
What's NOT Included
Pump only. No KF25 clamps or accessories are included beyond what's shown in photos.
Condition & Returns
This is a used pump, oil flushed, cleaned, and tested to the results shown above. It has not been rebuilt. The verified test data above is provided so you can buy with confidence.
Returns: 14-day return accepted if the pump arrives not as described or fails to power on and pull vacuum. Buyer pays return shipping unless the item arrived not as described.
Shipping & Handling
- Ships within 2 business days by UPS Ground
- Ships from Madison, Wisconsin
- Foam-packed and boxed for safe transport
- Oil drained for shipment — refill with R-2 or equivalent hydrocarbon vacuum oil before operating. DO NOT OPERATE WITHOUT PROPER VACUUM OIL.
