Upgraded Hot Water Recirculating Pump Kit, Replaces 595916, 0955805 For Sale

Upgraded Hot Water Recirculating Pump Kit, Replaces 595916, 0955805

Get hot water to the tap sooner with the CODEFORGE hot water recirculating pump kit, designed for compatible indoor tank water heater systems without a dedicated return line. The pump circulates cooled water through the hot-water line, while the thermostatic under-sink bypass valve creates a temporary return path to help reduce the wait at remote fixtures. A built-in 24-hour mechanical timer lets you schedule operation around your daily routine.

This 110V, 60Hz replacement-style kit is intended for systems referencing 595916 or 0955805. The RS15-6 pump lists maximum ratings of 9.5 GPM flow, 21.7 ft head, and 145 psi pressure; actual performance depends on plumbing layout and system conditions. The package includes the pump, timer, mounting bracket, 595926 bypass valve, braided hoses, NPT adapters, pump nuts, seals, mounting hardware, PTFE tape, inlet screen, and manual. Check your existing connections, installation layout, and electrical supply for compatibility before ordering.

Hot Water Closer to Remote Fixtures

• The CODEFORGE RS15-6 hot water recirculating pump kit helps reduce the wait for hot water in matched indoor tank water heater systems. The pump and under-sink thermostatic bypass valve circulate water without a dedicated return line.

Reference Numbers

• System references: 595916; 0955805. Compare the pump, plumbing layout and connections before purchase.

Timer-Controlled Circulation

• Set the mechanical 24-hour timer around morning, evening or other regular hot-water use.

Pump Nameplate Ratings

• AC 110V, 60Hz; Qmax 36 L/min (9.5 GPM); Hmax 6.6 m (21.7 ft); maximum pressure 10 bar (145 psi); IP44; Class H insulation. These are maximum pump ratings, not guaranteed system performance.

What to Expect

• Cold water at the bypass location may feel warm during or shortly after circulation. Actual flow depends on pipe length, restrictions and layout.

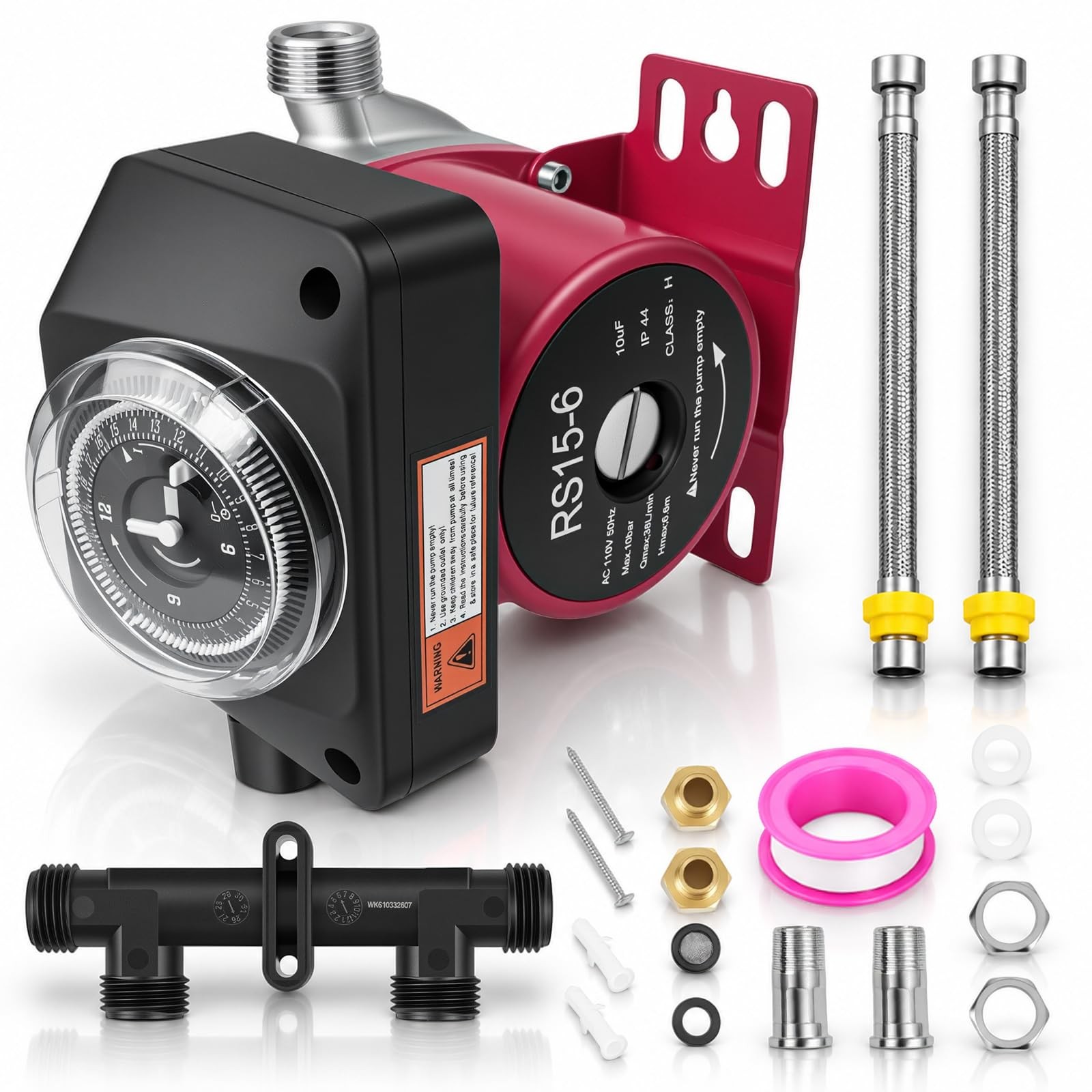

Package Includes

• 1 x Hot Water Circulation Pump With Timer And Mounting Bracket
• 1 x 595926 Black Thermostatic Bypass Valve
• 2 x Stainless Steel Braided Supply Hoses With Hand-Tighten Connectors (1/2\" To 3/8\")
• 2 x Stainless Steel Straight NPT Adapters (3/4\" To 1/2\")
• 2 x Brass NPT Adapters (1/2\" To 3/8\")
• 2 x Stainless Steel Pump Connection Nuts
• 2 x White Sealing Washers
• 2 x Black Rubber Sealing Rings
• 2 x Mounting Screws
• 2 x White Plastic Wall Anchors
• 1 x PTFE Thread Seal Tape
• 1 x Inlet Screen
• 1 x Manual
