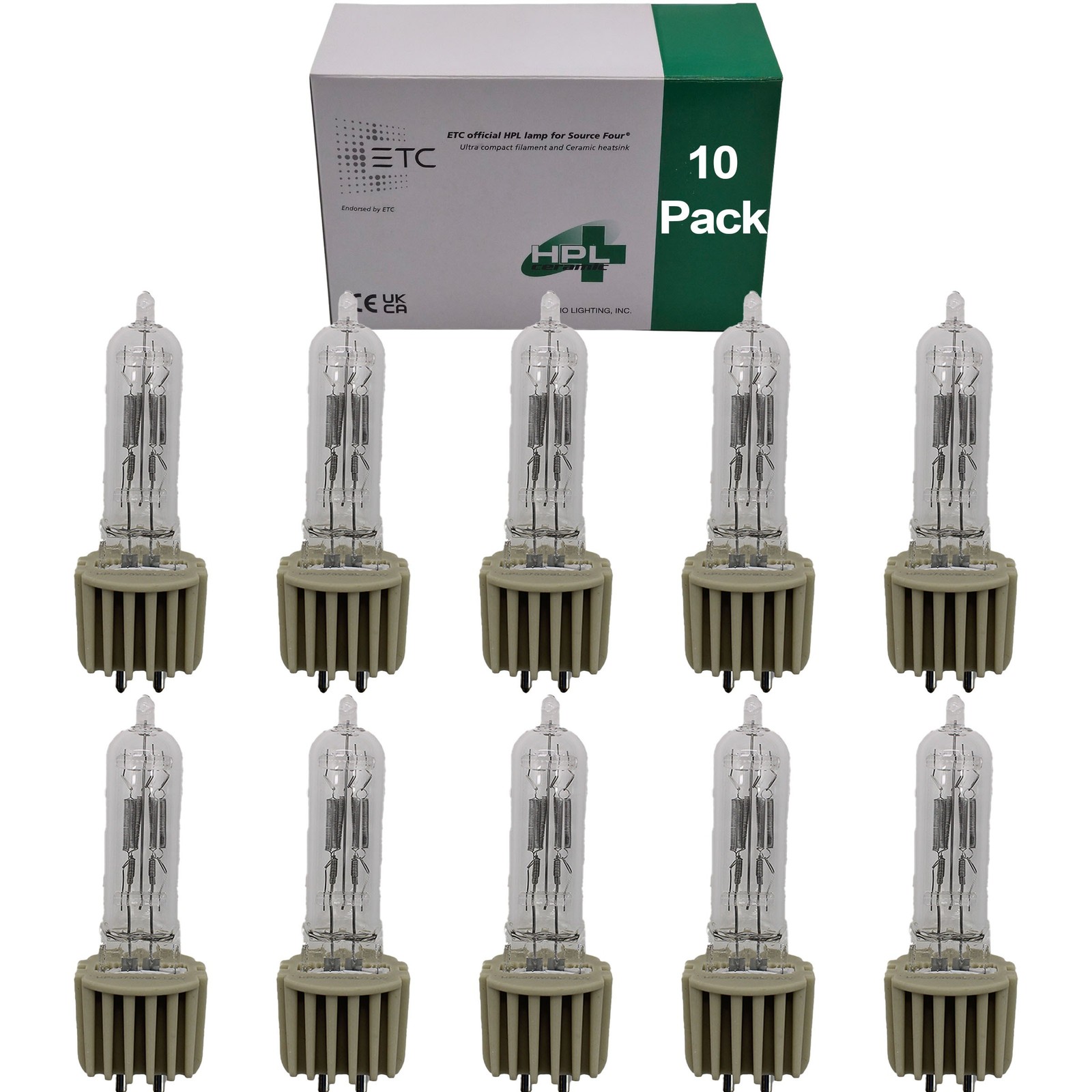

Ushio HPL 575W 120V/SL 3000HR Stage & Studio Lamp 10 Pack 575/120 - 1004220 134.99 1004220-HPL-10Pack
Introducing the revamped Ushio HPL+ lamp, now the most powerful HPL available. With its newly designed ultra-compact filament, this lamp enhances the optical efficiency of your ETC Source Four™ fixtures, delivering up to 20% more lumens—meaning you get more light without changing the fixture.Unlike competing HPL lamps, which have larger filament dimensions, Ushio’s innovative 6.0mm x 9.5mm filament design was developed in collaboration with ETC engineers. This compact profile optimizes light distribution, maximizing both axial and radial efficiency.The precise optics of the Source Four require equally precise lamp engineering. Ushio has addressed this need by creating a reduced geometry filament that meets high manufacturing standards. Enjoy measurable performance, reliable quality, a range of lamp types, and cutting-edge design tailored for your theatrical needs.DATA SPECIFICATIONSUSHIO Item Code1004220Product SeriesHPLProd. ID / ANSI 3000 HourDescription 2575/120V/SLItem PositionANYBulb ShapeT6Bulb FinishCLEARColor Temp (K)2950Efficacy (lm/W)28.7Filament6-C8Front Glass CoverNOInitial Lumens (lm)10500Luminous Flux (lm)10500Life (hr)3000Diameter (mm)18.35MOL (mm)104Light Center Length (mm)60.3Case Qty10
Works with the following ETC Source Four™ fixtures:
- Source Four jr: Rated up to 575W
- Source Four jr Zoom: Rated up to 575W
- Source Four: Rated up to 750W
- Source Four Zoom: Rated up to 750W
- Source Four PAR EA: Rated up to 750W
- Source Four PAR MCM: Rated up to 575W
- Source Four PAR Nel: Rated up to 750W
Dimensions: 104 mm x 60.3mm x 18.35mm
Featured Product Details
- 575W, 120V stage and studio lamp with a long 3000-hour lifespan for sustained performance – Model: 1004220.
- Ceramic heat sink base provides consistent resistance to electric conductivity throughout the lamp\'s life.
- Unique four- and six-filament designs improve light collection efficiency in compact fixtures.
- Tapered pins ensure a reliable and easy fit into fixture sockets, minimizing installation difficulties.
- Available in a wide range of voltages and wattages, offering flexibility between maximum output and extended lamp life.
