VIKYLIN 16CH NVR 8 PoE Security IP Camera System CCTV Lot Outdoor Night Vision VIKYLIN POE Security Camera System with NVR Recorder and HDD Options 5MP POE Camera 16CH 8POE NVR Recorder Human & Vehicle Detection Optional HDD Storage Choose Your Security System
Select the package according to your monitoring requirements. Different options include different quantities of cameras, recorder and storage.

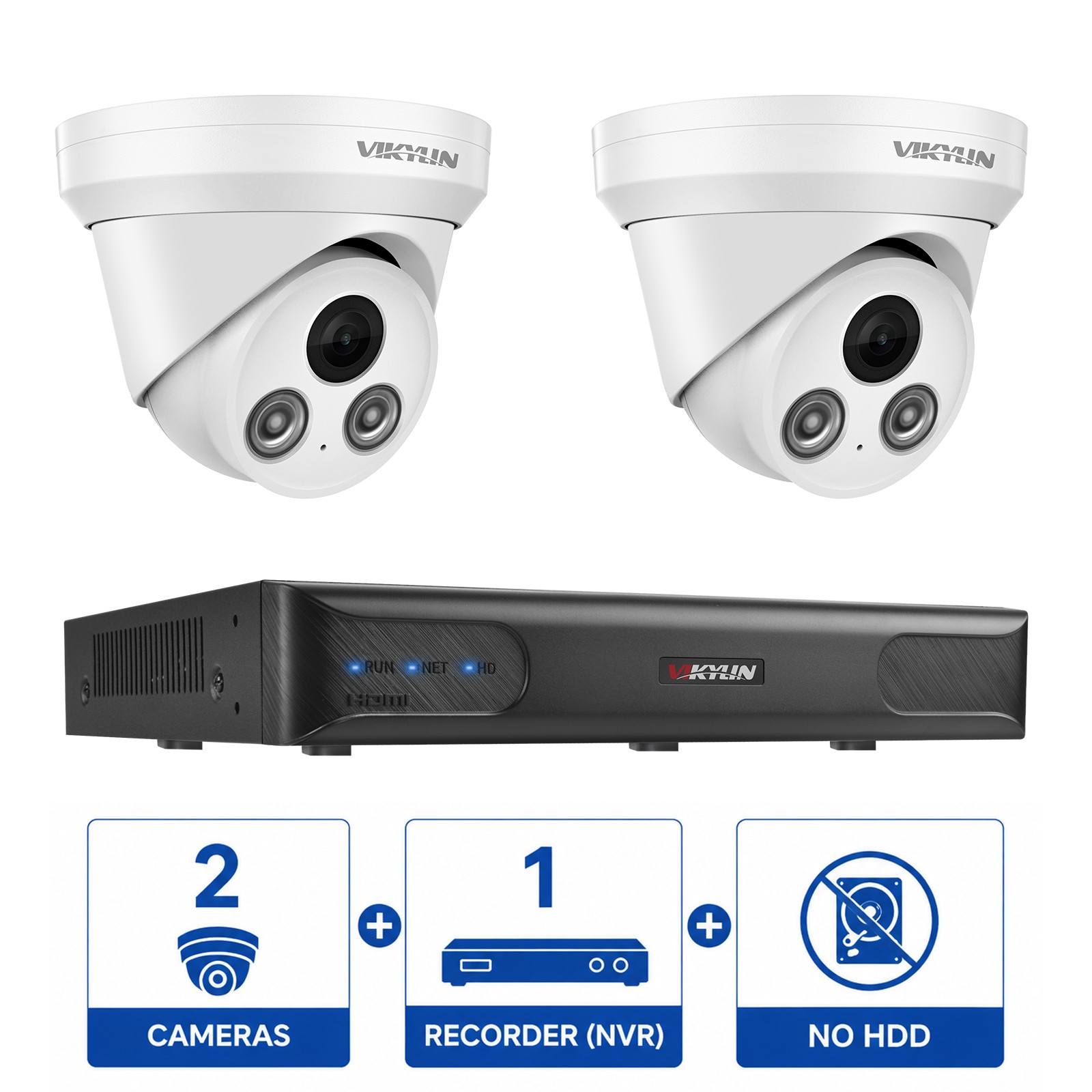

1 NVR + 2 Cameras
NO HDD Included
1 NVR + 4 Cameras
NO HDD Included
1 NVR + 6 Cameras
NO HDD Included
1 NVR + 8 Cameras
NO HDD Included
Only One NVR
NO IPC Included
Only One Camera
NO NVR Included
Only 2TB HDD
NO NVR / NO IPC
Only 4TB HDD
NO NVR / NO IPC
Complete Security System Overview
This complete POE security system combines high-resolution cameras, professional recording equipment and optional storage solutions. Choose different camera quantities according to your monitoring needs.
5MP POE Turret Camera
✔ 5MP Ultra HD Image Quality
✔ Human & Vehicle Detection
✔ Built-in Sound Pickup
✔ H.265 Video Compression
✔ Outdoor Weather Protection
✔ Suitable for Home & Business Monitoring
16CH 8POE NVR Recorder
✔ 16 Channels, 8 Built-in POE Ports
✔ Up to 12MP Recording Resolution
✔ HDMI & VGA Output
✔ Smart Search Function
✔ SATA HDD Storage Support
✔ Flexible Recording Options
Why Choose This Security System Complete Solution
Camera, NVR recorder and storage options in one system.
Flexible Packages
Multiple combinations for different monitoring requirements.
Smart Detection
Helps identify important events with intelligent analysis.
Easy Expansion
Supports additional cameras and optional storage.
Main Features Feature Description Camera Resolution 5MP Ultra HD (2880x1620) Recorder Type 16CH NVR with 8 POE Ports Recording Resolution Up to 12MP Compression H.265+ / H.265 / H.264 Detection Human & Vehicle Detection Storage 1 SATA Interface, up to 24TB Protection IP67 Outdoor Weather Protection Camera Specifications Camera Image Sensor 1/3\" Progressive Scan CMOS Resolution 5MP (2880×1620) @ 25fps Lens 2.8mm Fixed Lens Field of View Horizontal 100°, Vertical 52°, Diagonal 117° Minimum Illumination Color: 0.01 Lux @ F2.0; B/W: 0 lux with Night Vision Night Vision Distance Up to 30m (98ft) Video Compression H.265+ / H.265 / H.264 Bit Rate 64 Kbps ~ 12 Mbps Built-in Sound Pickup Yes Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port Compatibility ONVIF Compatible Protection IP67 Outdoor Protection Power Supply 12V DC / POE (IEEE 802.3af) NVR Specifications System Channel 16 Channel Recording Resolution Up to 12MP Compression H.265 / H.264 POE Port 8 Channel POE Interface (Max 30W per port, 75W total) Ethernet Port 1 RJ45 10M/100M self-adaptive Ethernet port Storage Interface 1 SATA Interface Storage Capacity Up to 24TB HDMI Output 4K (3840×2160) Output Support VGA Output Supported Smart Function Human & Vehicle Detection Search Protocols TCP/IP, DHCP, DNS, HTTP, ONVIF, SMTP, P2P, NTP, UDP, FTP Power Supply DC 52V 1.8 A Operating Temperature -10 °C to 50 °C (14 °F to 122 °F) Dimensions 260mm × 215mm × 46.6mm Weight ≤ 0.98Kg (2.17lb.) Software, Defaults & Warranty Software & Applications:
✔ Mobile Client: VKView
✔ PC Client: Guard Station
✔ Search Tool: Guard Tools
Factory Default Settings:
✔ Default IP: 192.168.1.110
✔ Username: admin
✔ Please change the default password on first login
Service & Warranty:
✔ Fast Shipping: 1–2 Business Days
✔ Technical Support: Lifetime 24/7 Support
✔ Warranty: 3-Year Warranty
Storage Options 2TB HDD
Provides additional storage capacity for recording.
4TB HDD
Suitable for longer recording storage requirements.
Important Note:
HDD is optional and only included when selected. Please check the selected variation before purchase. Package Includes
- POE NVR Recorder (Quantity Depends on Selected Option)
- POE Cameras (Quantity Depends on Selected Option)
- HDD Storage (Only Included When Selected)
- Power Accessories
- Mounting Accessories
- Ethernet Accessories
- User Manual
Before Purchase:
Please confirm the selected variation. Different options include different products and quantities. Suitable Applications Home Security
Monitor your home and protect important areas.
Office
Suitable for offices and commercial spaces.
Warehouse
Provides reliable monitoring for storage areas.
Business Monitoring
Flexible solutions for different business applications.
Professional Security Solution
VIKYLIN provides reliable security camera systems, professional recording equipment and flexible storage solutions for home and business monitoring.
Quality Tested • Flexible Options • Reliable Support
On Oct 7, 2026 at 19:35:54 PDT, seller added the following information:
