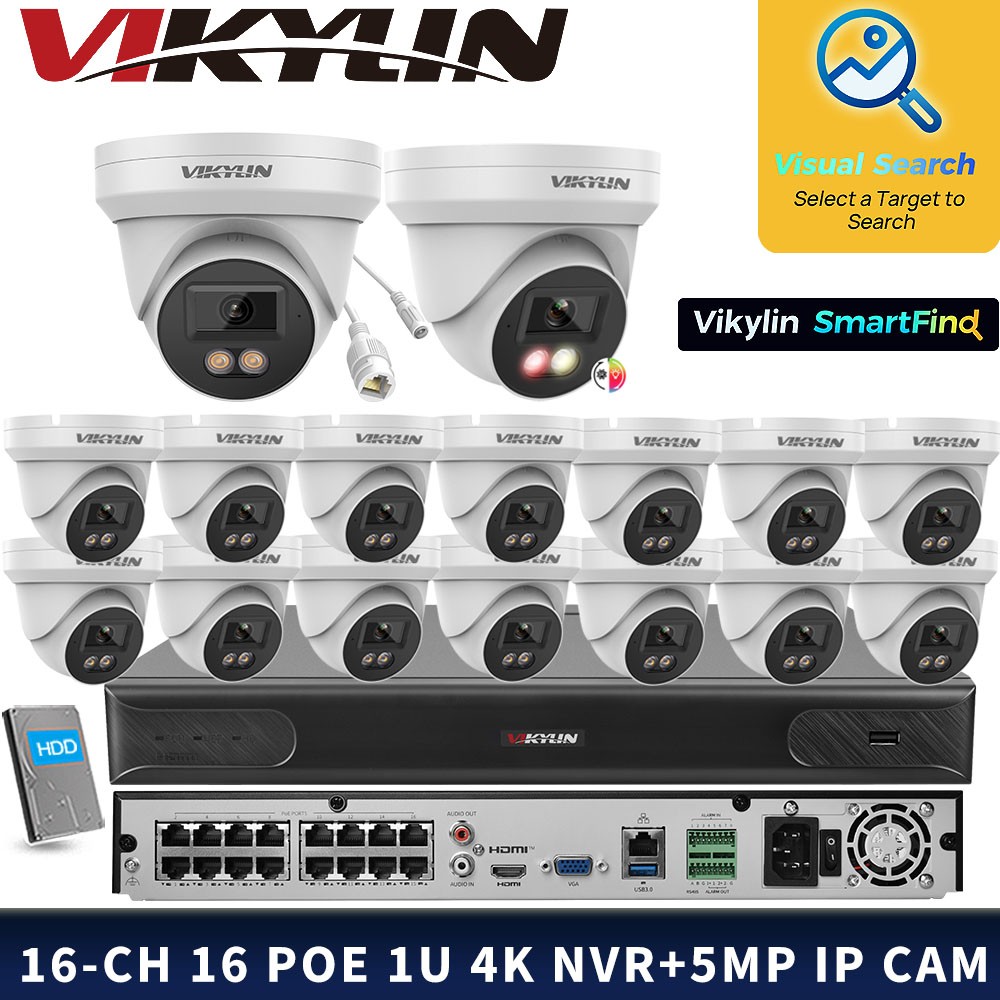

VIKYLIN SmartFind 16POE 16CH NVR Dual light Color 5MP Mini IP Camera Systems LotVikylin — 5MP Dual light MINI Turret Camera
HD • Human/Vehicle AI Detection • Dual light • IP67
About Our Brand — Vikylin
Vikylin NVR delivers smarter 24/7 security with Vikylin SmartFind AI-powered Text &Visual Search, letting users quickly locate key footage in seconds. With easy plug-and-play setup, up to 12MP recording, and Ultra H.265 compression, it combines high efficiency, clarity, and simplicity in one powerful system.
>APP : Videolink ( support download by QR code)
>defualt IP address : 192.168.110
>Search Tool：AjDevtool
> PC Client for Windows: LMS
>Warranty: 3 YearsPackage Includes
- Vikylin Camera ×1
- Screw Pack ×1
- User Manual ×1
> 1/2.7\" CMOS sensor
> 2592 × 1944 video output
> Ultra low illumination 0.01Lux
> Day/Night (ICR), AWB, 2D/3D-DNR, Privacy Mask, Mirror
> D-WDR, Motion Detection
> H.265/H.264 dual-stream media server
> Easy-to-use P2P Cloud service
> Multi web browser, PC Client, mobile APP access
> RJ45 100mbps network port, IEEE802.3af PoE
> Lightning protection 4000V
> Strong water-proof housing, IP66
> 2 pcs warm light, Light distance 20-30 meters
> HD 2.8mm F1.0 lens
> Built-in & PoE
> Human Detection, Vehicle Detection
Detail parameters：
CameraImage Sensor1/2.7\" CMOS SensorEffective Pixels5MP (2592 × 1944)Electronic ShutterAUTO, 1/25s ~ 1/10000sMin. Illumination0.01Lux-F1.2(AGC WDRWhite DNROtherMulti-lines OSD, Motion Detection, Privacy Mask, MirrorEncodeVideo StandardH.264/H.265/ H.265+Video ResolutionMain stream: 30fps-D1/VGA/360P/CIF, etc.Video Bitrates64Kbps - 8Mbps, VBR/CBR EventHuman DetectionVehicle DetectionMotion DetectionLedLed2 pcs warm lightDistance20-30 metesLensFocal lengthHD 2.8mm F1.0 lensNetwork etc.P2PYesWebIE , Firefox 32bit ESR, etc.MediaCMS, Android, IOSONVIFGeneralNetwork Port1-RJ45, 100Mbps, PoEPower SupplyPoE (default), 12 VDC ± 10%Power Consumption< 5 WOperating Temp.-30°C-(+60)°C, 10%-90%RH
16POE 16CH NVR
Features
- Support Ultra 265/H.265/H.264 video formats
- 16 channel input
- Plug & Play with 16 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840x2160) resolution
- VGA and HDMI simultaneous output
- Up to 12 Megapixels resolution recording
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Specifications
Model
NVR
Decoding
Decoding Format
Ultra 265,H.265,H.264
Decoding Capability
Smart Off：2 x 12MP-30, 2 x 4K-30, 4 x 4MP-30, 10 x 1080P-30, 16 x 720P-30
Smart On：2 x 4K-30, 4 x 4MP-30, 8 x 1080P-30, 16 x 720P-30
Decoding Capability Description
The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Compression
G.711A, G.711U
Network
Incoming Bandwidth
160 Mbps
Outgoing Bandwidth
128Mbps
Users
128
Protocols
TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
Browser (Plugin)
IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/ Input
IP Video Input
16ch
RCA Input
1ch
Peripheral Input
POS
Support
Video/ Output
HDMI Output
4K (3840 × 2160)/30 , 1920 × 1080/60 , 1920 × 1080/50 , 1600 × 1200/60 , 1280 × 1024/60 , 1280 × 720/60 , 1024 × 768/60
VGA Output
1920 × 1080/60 , 1920 × 1080/50 , 1600 × 1200/60 , 1280 × 1024/60 , 1280 × 720/60 , 1024 × 768/60
RCA Output
1ch
Liveview Display
1/4/6/8/9/16
Corridor Mode Screen
3/4/5/7/9/10/12/16
Twoway
Twoway
1ch,RCA(Using the input and output)
Snapshot
FTP/Schedule/Event Snapshot
4ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
Recording
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local
16ch
Smart
Smart by IPC
All channels (up to 8 images/s in total)Face Detection, Face Comparison, Vehicle Detection, SIP, UMD, Traffic Monitoring
Smart by NVR
Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
VCA Search
Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, NonMotor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch
by NVR
1ch
Vehicle Picture Library
Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR with normal cameras
2ch
UMD by NVR with normal cameras
4ch
Alarm
Alert Alarm
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language
38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA
2 SATA Interfaces
Capacity
Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature)
External Interface
Network Interface
1 RJ45 10 M/100 M/1000 M selfadaptive Ethernet Interface
USB
Front panel: 1 × USB2.0, Rear panel: 1 × USB3.0
RS485
1
RS232
N/A
Alarm In
8ch
Alarm Out
2ch
Power Supply
AC 100~240V
PoE
PoE Interface
16 RJ45 10 M/100 M selfadaptive Ethernet Interface
Max Power
Max 30 W for single port, Max 240 W in total
Supported Standard
IEEE 802.3at, IEEE 802.3af
Working Environment
Working Temperature
10 ℃~ + 55 ℃(+14 ℉~ +131 ℉)
Working Humidity
≤ 90% RH (noncondensing)
Power Consumption (without HDD)
≤ 12W
Dimensions
Weight (without HDD)
≤ 2.7Kg (6.0lb)
Dimensions
380mm × 322mm × 53mm (15.0\"×12.7\"×2.1\")
Certification
Certification
CE; FCC; UL; RoHS; WEEE
CE
EN 55032, EN 6100033, EN IEC 6100032, EN 55035
FCC
Part15 Subpart B
