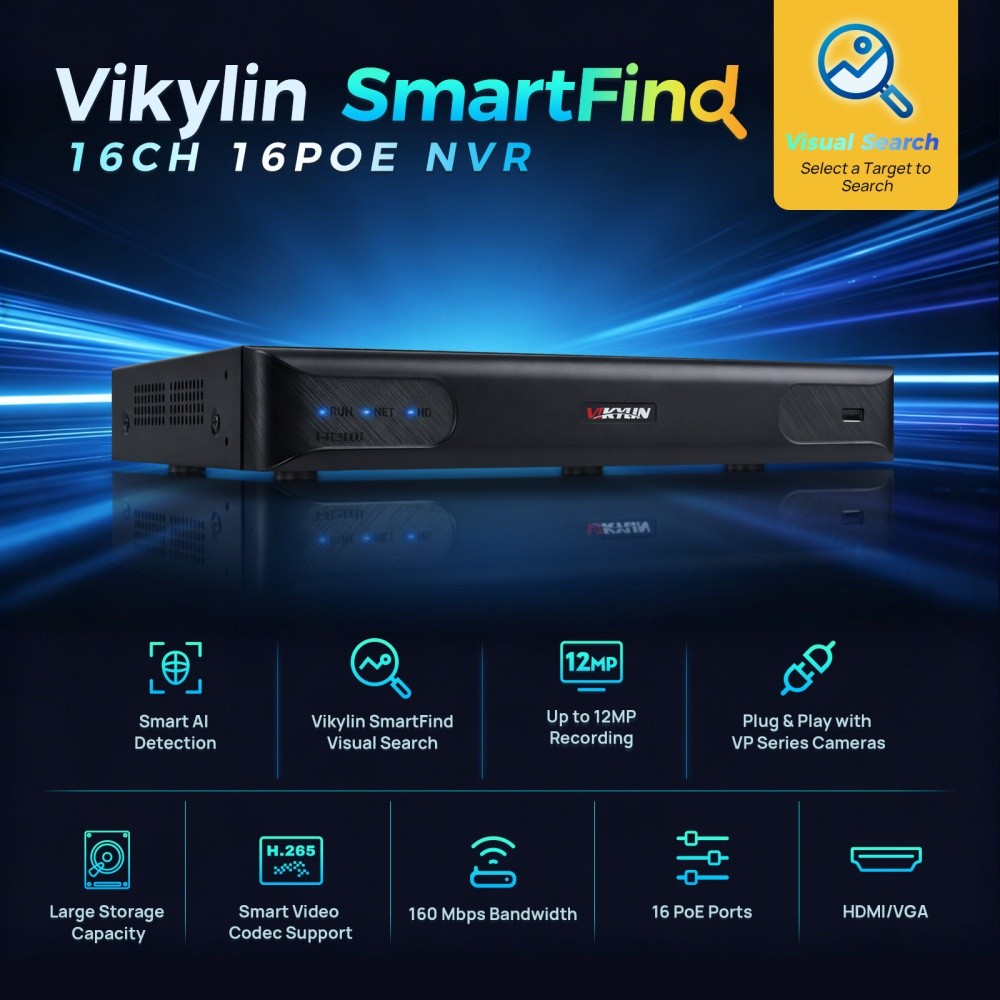

Vikylin Smartfind 16CH 12MP NVR 16POE Security IP Network Video Recorderπ‘ Tips:
- π± APP Available: VKview (iOS, Android), support download by QR code
- π Search Tool: GuardTools (search device and change IP address)
- π» PC Client: GuardStation
- π Default IP: 172.16.0.xxx
- π€ Username: admin
- π Password: 123456
Key Features
- Support Ultra 265/H.265/H.264 video formats
- 16 channel input
- Plug & Play with 16 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP
- Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840x2160) resolution
- VGA and HDMI simultaneous output
- Up to 12 Megapixels resolution recording
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Specifications
Model
VU-N1616
Decoding
Decoding Format
Ultra 265,H.265,H.264
Decoding Capability
Smart OffοΌ2 x 12MP-30, 2 x 4K-30, 4 x 4MP-30, 10 x 1080P-30, 16 x 720P-30
Smart OnοΌ2 x 4K-30, 4 x 4MP-30, 8 x 1080P-30, 16 x 720P-30
Decoding Capability Description
The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
A-udio Compression
G.711A, G.711U
Network
Incoming Bandwidth
160 Mbps
Outgoing Bandwidth
128Mbps
Rem-ote Users
128
Browser (Plugin)
IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/A-udio Input
IP Video Input
16-ch
RCA A-udio Input
1-ch
Peripheral Input
POS
Support
Video/A-udio Output
HDMI Output
4K (3840x 2160), 1920 x1080, 1920x 1080/50, 1600x1200, 1280x1024, 1280 x720, 1024x768
VGA Output
1920x1080, 1920x1080 1600x1200, 1280x1024, 1280x720, 1024x768
RCA A-udio Output
1-ch
Liveview Display
1/4/6/8/9/16
Corridor Mode Screen
3/4/5/7/9/10/12/16
Two-way A-udio
Two-way A-udio
1-ch,RCA(Using the a-udio input and output)
Snapshot
FTP/Schedule/Event Snapshot
4-ch snapshot (max. D1 (720x576) video resolution, with D1 snapshot resolution)
Recording
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local
16-ch
Smart
Smart by IPC
All channels (up to 8 images/s in total)Face Detection, Face Comparison, Vehicle Detection, SIP, UMD, Traffic Monitoring
Smart by NVR
Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
VCA Search
Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
by NVR
1-ch
Vehicle Picture Library
Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR with normal cameras
2-ch
UMD by NVR with normal cameras
4-ch
Alarm
Alert Alarm
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language
38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA
2 SATA Interfaces
Capacity
Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature)
External Interface
Network Interface
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB
Front panel: 1xUSB2.0, Rear panel: 1xUSB3.0
RS485
1
RS232
N/A
Alarm In
8-ch
Alarm Out
2-ch
Power Supply
AC 100-240V
PoE
PoE Interface
16 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power
Max 30 W for single port, Max 240 W in total
Supported Standard
IEEE 802.3at, IEEE 802.3af
Working Environment
Working Temperature
-10βto + 55β(+14βto +131β)
Working Humidity
≤ 90% RH (non-condensing)
Power Consumption (without HDD)
≤ 12W
Dimensions
Weight (without HDD)
≤ 2.7Kg (6.0lb)
Dimensions
380mmx322mmx53mm (15.0\"×12.7\"×2.1\")
Certification
Certification
CE; FCC; UL; RoHS; WEEE
CE
EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC
Part15 Subpart B
