★Tips
> APP : VideoLink (iOS, Android), support download by QR code> Search Tool: AjDevTool (search device and change IP address if needed)> PC Client: LMS> Default IP: 192.168.1.110> Username: admin> Password: 123456Please Note:
★Our cameras support the Onvif protocol and can be connected to other NVRs that support third-party Onvif protocols.★The camera has POE function, There is NO power adapter and NO cables in the Original package.
★Support batch order. If you want more and save more,please kindly contact us for a better price.
★Installers and traders are welcomed to contact for Bulk price and stock list.

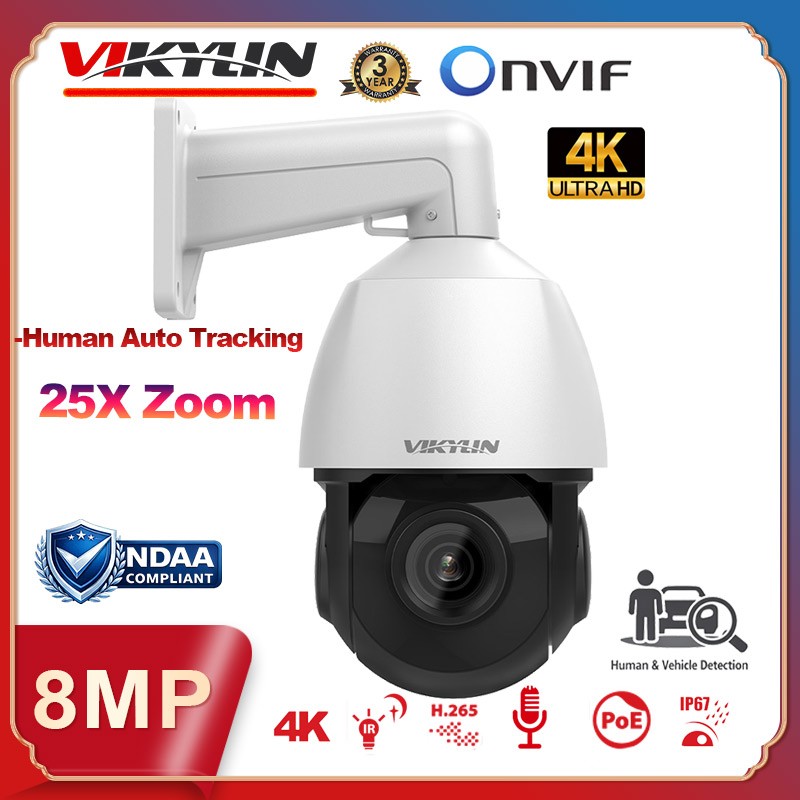

★All the items are with 3 years warranty, if there is any problem with use, please contact with us at any time. ★Lifetime free after-sales technical service:We have very professinal tech, can help you set online(for free).Z4825 8MP 25X IR PTZ Network Camera
- 8MP realtime resolution 3840x2160@20fps
- IRrange to 100m(328ft)
- Smart tracking when detect human
- H.265+ & H.265 & H.264
- Built in Micand speaker, two-way audio (Speaker function only work with our Vikylin NVR)
- Built-in reset button and memory card slot(512 GB)
- Support Alarm Snapshot toEmail, FTP
- Water and dust resistant (IP66)
- RTSP and Onvifcompatible with many third-party NVR
Camera
Image Sensor
1/2.7"Progressive Scan CMOS
Min. Illumination
Color: 0.01Lux @ (F1.65), 0 lux withIR
Shutter Time
1/10s to 1/10,000 s
Day & Night
Day: Color, Night: B/W
Lens
Focal Length & FOV
5.9 to 94.4mm,
Horizontal FOV 48.5°to 2.3°,
Vertical FOV 28.3°to 1.4°,
Diagonal FOV56.4°to 2.6°
Aperture
Max. F1.65
Iris Type
Fixed
Zoom
16x optical, 1.5x digital
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 100 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Image Settings
Brightness, saturation,contrast,rotate mode, white balance, BLC, HLC, 3D DNR, WDRadjustable by client software or web browser
Day/Night Switch
Day, Night, Auto, Schedule
Privacy Mask
4 programmable polygon privacy masks
PTZ
Movement Range(Pan/Tilt)
0°to 360°/ 0°to 90°
Pan Speed
0.5°to 36°
TiltSpeed
0.5°to 36°
Patrol Scan
1patrols, up to 32 presets(1-32)
Auto Tracking
Yes,for human
Power-off Memory
Yes
Video
Max. Resolution
3840× 2160
Main Stream
50 Hz:
20fps@3840× 2160, 25fps@3072 ×3048, 30fps@(2592× 1944, 2560 ×1440, 2304 ×1296, 1920 × 1080, 1280 × 720)
60 Hz:
20fps@3840× 2160, 25fps@3072 ×3048, 30fps@(2592× 1944, 2560 ×1440, 2304 ×1296, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 30fps@(720× 480, 640 × 480, 640 × 360, 480 ×360,CIF )
60 Hz: 30fps@(720× 480, 640 × 480, 640 × 360, 480 ×360,CIF )
Video Compression
Main stream: H.265+/H.265/H.264
Sub-stream: H.265+/H.265/H.264
Video Bit Rate
64Kbps to 12Mbps
H.264 Type
Base Profile, Main Profile, High Profile
H.265 Type
Base Profile, Main Profile, High Profile
Bit Rate Control
CBR, VBR
Audio
Audio Compression
G.711U/G.711A/AAC
Network
Protocols
TCP/IP, DHCP, DNS, HTTP,ONVIF,RTP, RTSP, NTP, UDP, FTP, SMTP
User/Host
Up to 10users
3 user levels: administrator, operator, and user
Client
AjDevtools, LMS, Videolink
Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+,Microsoft Edge
Language
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone
Yes
On-Board Storage
Yes, up to 512GB
Reset Key
Yes
Event
Basic Event
Motion detection
Smart Event
Human & Vehicle detection, human tracking
Linkage
Upload to FTP/memory card, send email, trigger recording, trigger capture
General
Power
12 VDC ± 25%, 2A, max. 24W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3at, max. 24W
Material
Metal & Plastic
Dimension
Camera: Ø137mm × 274mm (Ø5.4" × 10.8")
With Package: 173mm × 173mm × 275mm (6.8" × 6.8" ×10.8")
Weight
Camera: Approx. 1.54kg (3.4lb.)
With Package: Approx. 1.96kg (4.3lb.)
Storage Conditions
-30 °C to 85°C (-22 °F to 185°F). Humidity 95% or less (non-condensing)
OperatingConditions
-30 °C to 85°C (-22 °F to 185°F). Humidity 95% or less (non-condensing)
Protection
IP66
