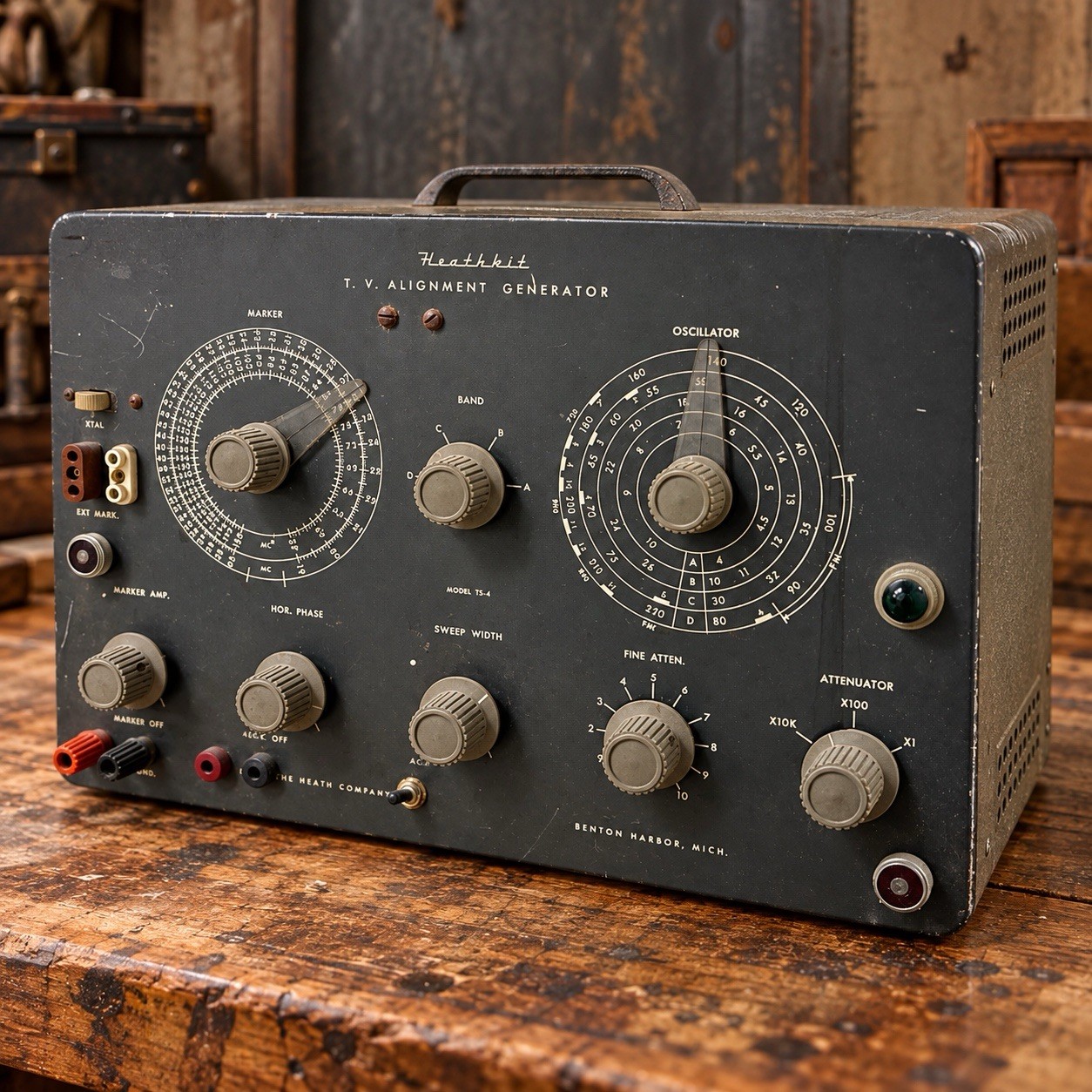

Original Heathkit Model TS-4 T.V. Alignment Generator, produced by Heath Company, Benton Harbor, Michigan, circa 1956.
An excellent survivor from the early television-service era, designed as professional/enthusiast test equipment for television and FM alignment.
Features the distinctive dual calibrated marker/oscillator dials, band selector, sweep-width and fine-attenuation controls, attenuator, indicator lamp, terminals, metal cabinet and carrying handle.
The TS-4 preceded the later TS-4A and represents an early generation of Heathkit television alignment equipment. Heathkit documentation confirms the TS-series as dedicated TV alignment generators.
Original aged condition with substantial authentic workshop patina, including paint loss, scratches, oxidation, surface wear and age-related discoloration. Power cord is present. Operational condition has not been confirmed; sold as untested vintage electronic equipment.
Excellent display piece for a vintage electronics, radio/TV repair, laboratory, industrial, broadcasting or Heathkit collection.
Maker: Heath Company / Heathkit
Model: TS-4
Type: T.V. Alignment Generator / electronic test equipment
Origin: Benton Harbor, Michigan, USA
Estimated date: 1956
Construction: Metal cabinet
Era: Mid-century / early television service era
