Specification Material: ABS, Stainless Steel, SiliconeStyle: ModernColor: WhitePlug Type: US StandardDisplay Type: LEDPixel: 15 MegapixelsTarget Audience: DogsScreen Rotation Angle: 120° Up/Down, 360° Left/RightBattery Type: 1* 2000mA Lithium BatteryResolution: 640x480Power Supply: 5V, 2000MAContinuous Working Time: About 1-2HCharging Time: About 4-6HTotal Product Length: 34cm/13.39inProbe Length: 25cm/9.84inProbe Diameter: 10mm/0.39inHandle Width: 8cm/3.15inExpansion Head Diameter:12mm/0.47inExpansion Head Length: 7mm/0.28inAir Channel Diameter: 1mm/0.04inSperm Channel Diameter: 3mm/0.12inPackage Size: 61*33*19.5cm/24.02*12.99*7.68inGross Weight: 3.4kg/7.5lbsNet Weight: 3.23kg/7.12lbs

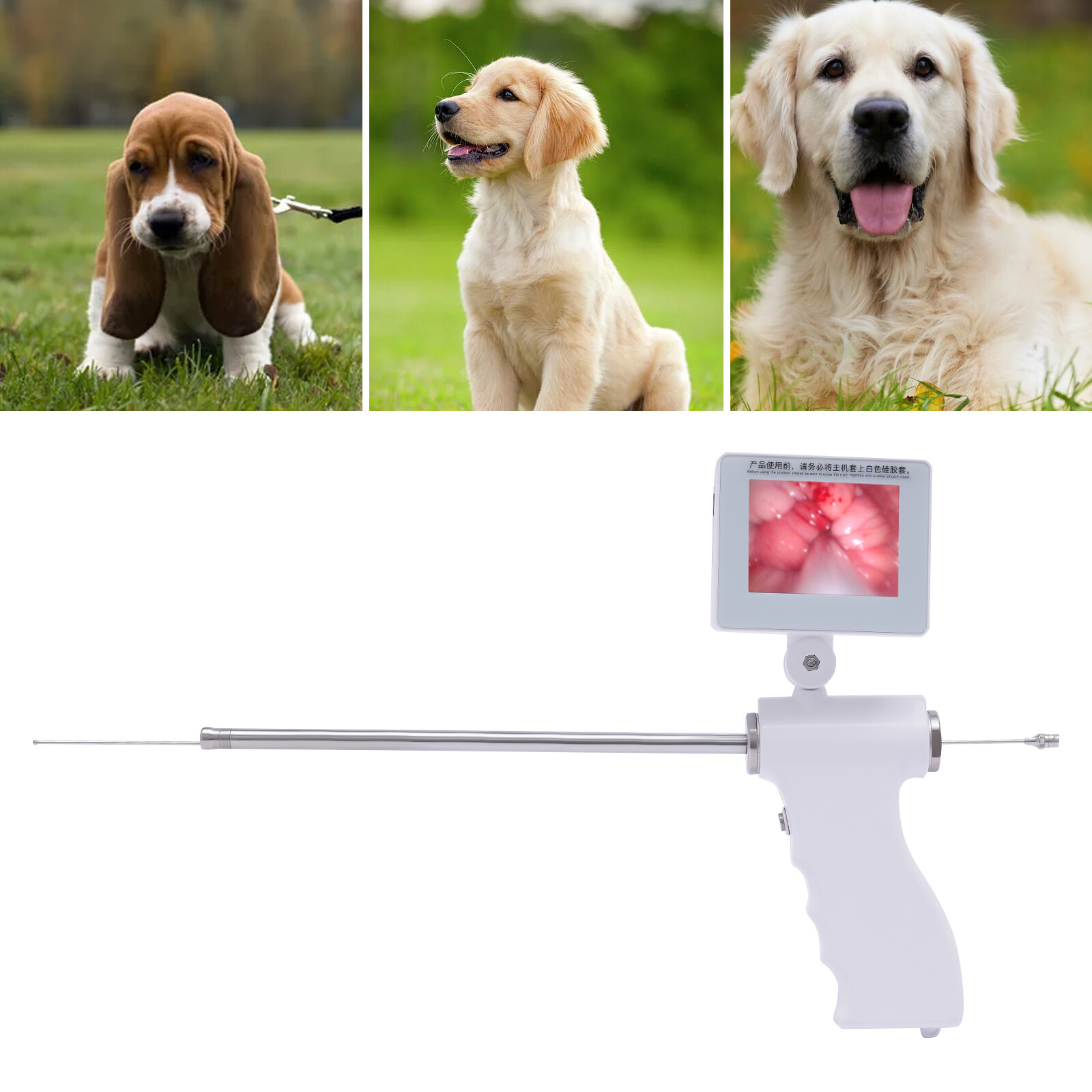

Visual Dog Artificial Insemination Gun Kit AI Breeding Machine Waterproof Camera
Application
This product is suitable for farms, breeding farms, zoos, and animal hospitals. It can be used for artificial insemination, observation of uterine diseases, simple diagnosis of inflammation, and auxiliary medication injection. It is suitable for dogs.
How to Operate
(1) Use an alcohol cotton(not included) to wipe the probe and probe rod of the visual insemination gun clean. Install the front dilator head and insert the positioning steel needle into the insemination needle.
(2) Place the dog in an inverted or semi-inverted state, and insert the probe rod of the visual insemination gun into the reproductive tract until it can\'t be inserted further.
(3) Slowly retreat the insemination gun. If the screen is blurry, you can press the pneumatic button on the handle to blow off the obstructions covering the camera.
(4) When you see the position of the uterine orifice, insert the insemination needle from the rear end of the visual insemination gun. Observe the changes on the display, and you can fine-tune the direction to let the insemination needle enter from the crevice of the uterine orifice fold, about 1.57in or so.
(5) Pull out the positioning steel needle. Connect the insemination needle to the syringe containing semen and inseminate slowly. Use less than 0.05oz of air to push the semen inside the insemination needle at last.
(6) Pull out the insemination needle, withdraw the visual insemination gun, and keep the inverted state for a few minutes to complete the insemination.
Specification
Material: ABS, Stainless Steel, Silicone
Style: Modern
Color: White
Plug Type: US Standard
Display Type: LED
Pixel: 15 Megapixels
Target Audience: Dogs
Screen Rotation Angle: 120° Up/Down, 360° Left/Right
Battery Type: 1* 2000mA Lithium Battery
Resolution: 640x480
Power Supply: 5V, 2000MA
Continuous Working Time: About 1-2H
Charging Time: About 4-6H
Total Product Length: 34cm/13.39in
Probe Length: 25cm/9.84in
Probe Diameter: 10mm/0.39in
Handle Width: 8cm/3.15in
Expansion Head Diameter:12mm/0.47in
Expansion Head Length: 7mm/0.28in
Air Channel Diameter: 1mm/0.04in
Sperm Channel Diameter: 3mm/0.12in
Package Size: 61*33*19.5cm/24.02*12.99*7.68in
Gross Weight: 3.4kg/7.5lbs
Net Weight: 3.23kg/7.12lbs
Package Included
1* Visual Insemination Gun
1* Insemination Needle
1* Charging Plug
1* Converter
1* Charging Cable
1* Screen Cover
1* Strap
1* Storage Bag
20*Vas Deferens
4*Positioning Needles
1* English Manual
Notes
- Before using the product, please be sure to cover the main machine with a white silicone cover.
- Please read the manual carefully and pay attention to the safety precautions.
- Please allow the slight color difference caused by the shooting light and a 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
