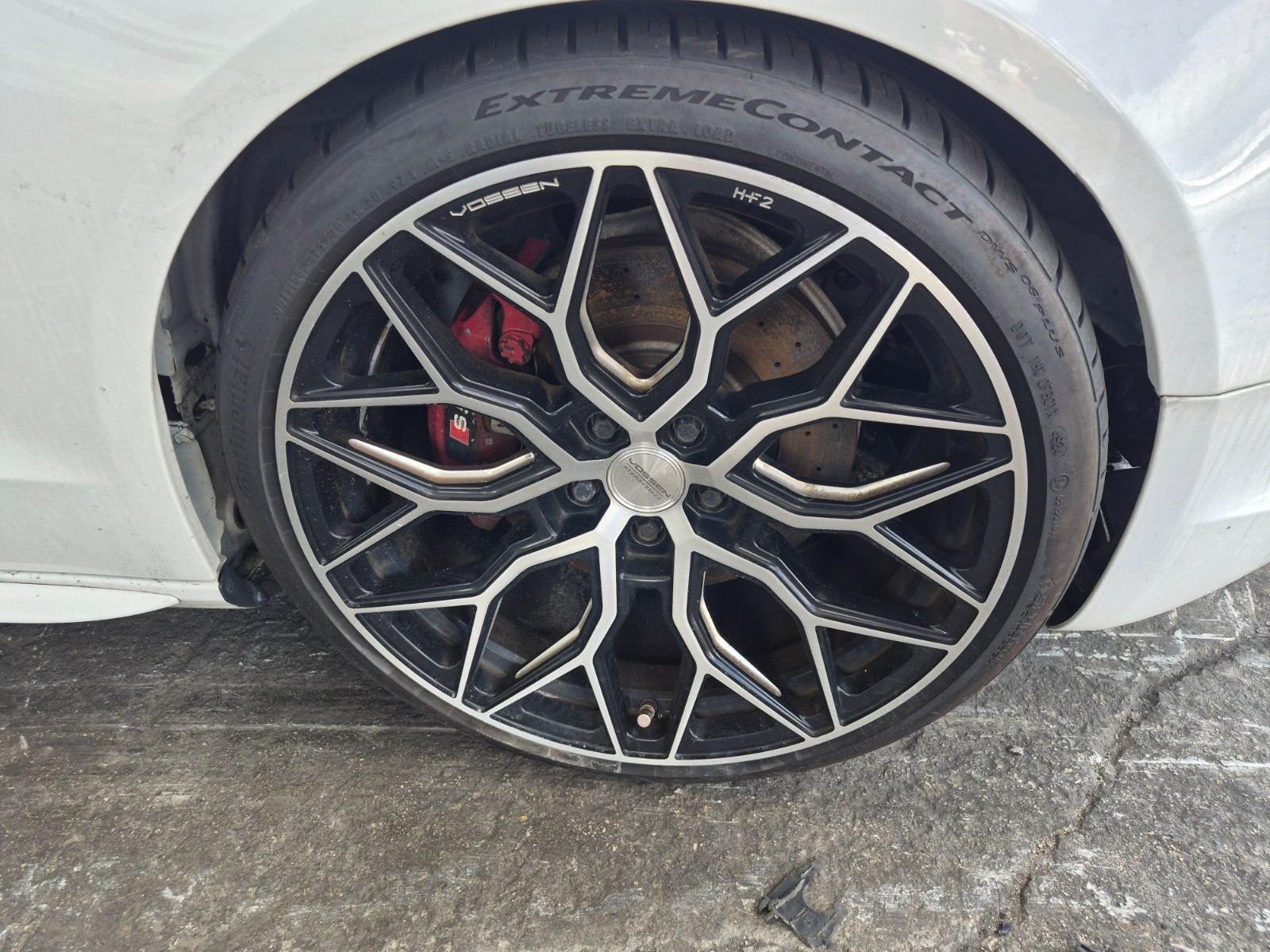

Vossen HF-2 20\" Inch Rims with Tires - Wheels - Audi A5 COMPLETE SET For Sale

• Bolt Pattern (PCD): 5x112

• Center / Hub Bore: 66.56 mm (note: older Audis used a smaller 57.1 mm bore, but the S5 moved to the larger 66.5 mm standard).

• Thread Pitch: M14 x 1.5 (lug bolts)

• Offset Range: Typically aggressive low-to-mid offsets (around ET25 to ET35 depending on factory width, usually 8.5\" to 9\" wide).

Because of the 5x112 bolt pattern and 66.56 mm hub bore, these wheels are a direct bolt-on fit for these specific Audi models and years:

• Audi S5 / A5 (Coupe, Cabriolet, Sportback):

  • 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 (B8 and B8.5 generations share the exact same hub bore and suspension geometry).

• Audi A4 / S4:

  • 2009 – 2016 (B8 / B8.5 generation; these models transitioned to the same 66.5 mm hub bore).

• Audi A6 / S6:

  • 2012 – 2018 (C7 generation shares the 66.5 mm bore).

• Audi A7 / S7:

  • 2012 – 2018

• Older Audi Models (Pre-2009 A4, A6, TT, VW Golf/Jetta up to MK5/MK6):

  • These older VW/Audi platforms share the same 5x112 bolt pattern, but they use a smaller 57.1 mm center bore. The 2008 S5 wheels have a larger 66.5 mm bore, meaning they will slide onto older cars, but they will be \"hub-centric\" loose unless you use hub-centric adapter rings (66.5 to 57.1 mm) to center the wheel securely on the hub.

• Mercedes-Benz:

  • Many modern Mercedes vehicles use a 5x112 pattern with a 66.6 mm hub bore. While the bolt pattern matches closely, you must check the offset and brake-caliper clearance, as Audi wheel offsets are often lower/more aggressive than standard Mercedes sedan offsets.
