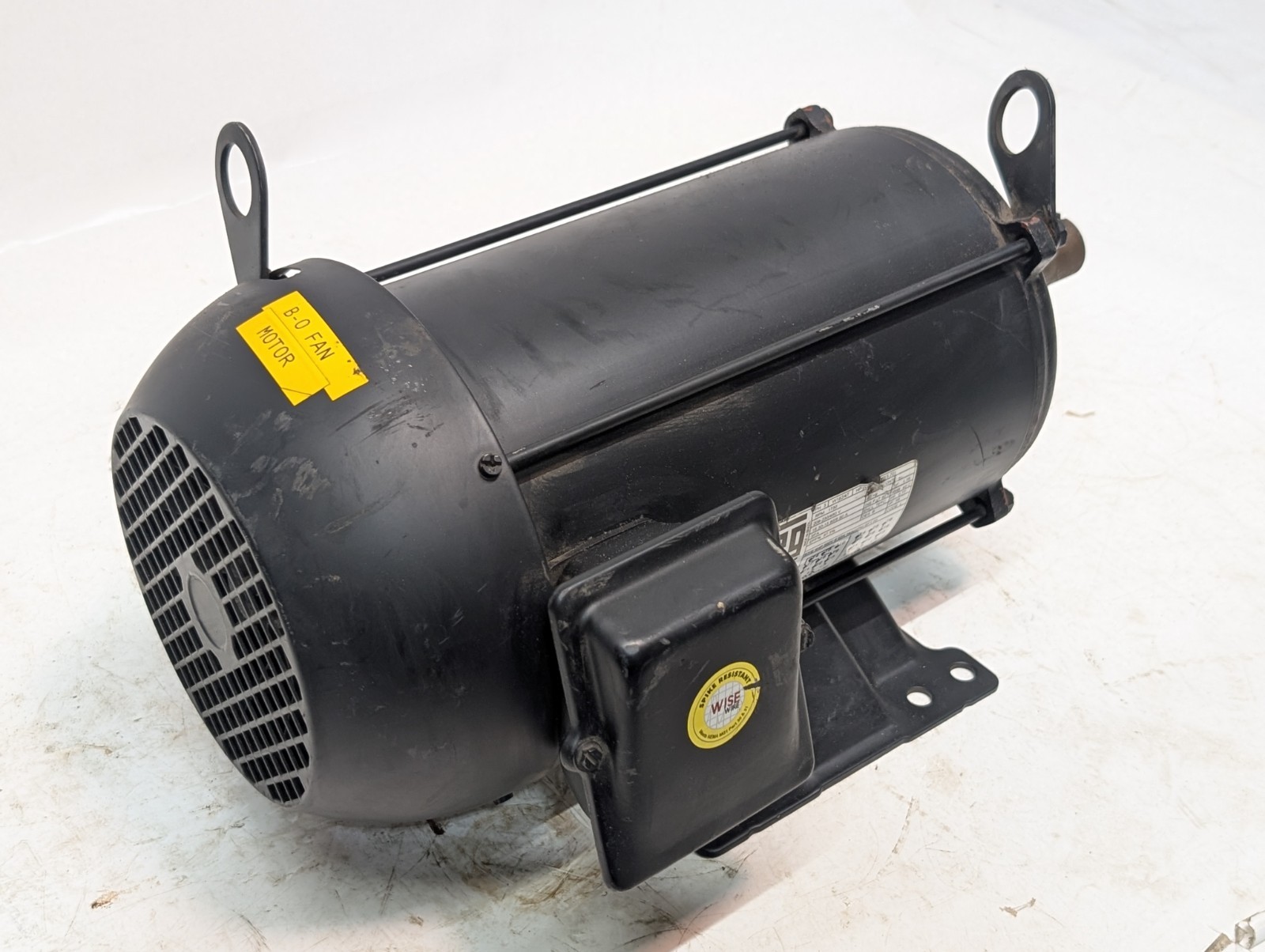

WEG 00518EP3ERS184T inverter duty motor, 5HP, 208-230/460V, 3 phase, TEFC enclosure, as shown.
Condition: Used. From a closing industrial facility. Untested but presumed to be working well.
This is a foot-mounted industrial electric motor with a keyed shaft and terminal box. The housing shows normal cosmetic wear from prior use including scuffs, scratches, dust, and light surface rust on the shaft/end hardware as pictured.
- Brand: WEG
- Model: 00518EP3ERS184T
- Type: Inverter Duty Motor
- Horsepower: 5 HP (3.70 kW)
- Phase: 3 PH
- Frame: W182/4T
- RPM: 1730
- Voltage: 208-230/460 V
- Amperage: 15.30-13.80/6.90 A
- Frequency: 60 Hz
- Duty: Continuous
- Service Factor: 1.15
- Enclosure: TEFC
- Insulation Class: F, 80K rise
- Ambient: 40 C
- Efficiency: 87.5%
- Design: B
- IP Rating: IP55
- Code: L
- 50 Hz rating: 4 HP, 380V, 6.92A, 1420 RPM, SF 1.00
- Made in Brazil
Please review all pictures carefully for shaft condition, mounting base style, and nameplate details before purchase.
