Watts 559178 LFMMV-HTK 3/4 in. Lead Free Mechanical Vacuum Breaker Valve For Sale

LFMMV-HTK 3/4

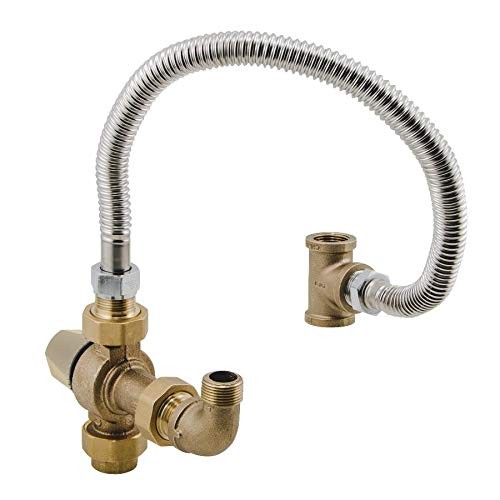

3/4 In Lead Free Hot Water Tank Thermostatic Mixing Valve Kit, Lfmmv Mixing Valve, Ss Hose, Tee And Elbow_This 3/4 inch lead free thermostatic hot water mixing valve kit is designed for residential, commercial or institutional environments for supplying tempered water. This kit contains a 3/4 inch mixing valve, Model LLMMV, stainless steel hose, a tee and an elbow. The thermostatic mixing valve consists of a lead free brass body, threaded union end connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The double throttling design controls both hot and cold water supply to the mixed outlet. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar) and maximum temperature rating is 200 degrees F (93 degrees C)._Lead free brass construction_Includes a stainless steel hose, tee and elbow_Thermal actuation technology for precise temperature control_ASSE 1070, ASSE 1017 and UPC listed_Specifications_Body Finish Rough Bronze_Body Material Lead Free Copper Silicon Alloy_Brand Watts_Buy American Act Compliant YES_Capacity 20 GPM at 125 PSI_Cold Inlet Temperature Range 39 to 80 degree F_Cold Water Bypass No_Cold Water Inlet Connection Size 3/4 IN_EAN 098268086263_Factory Set Temperature-Fahrenheit 105_Flow Rate 0.5 to 13 GPM_Hot Inlet Temperature Range 120 to 180 degree F_Hot Water Inlet Connection Size 3/4 IN_Lead Free YES_Maximum Pressure Differential 25 percent_Maximum Working Pressure-PSI 125_Minimum Differential Temperature-Fahrenheit 5_Minimum Static Pressure-PSI 30_Outlet Connection Size 3/4 IN_Outlet Connection Size-Metric 19 MM_Part Number 0559178_Series LFMMV_Temperature Adjustment Range 80 to 120 degree F_WiFiEnabled No
