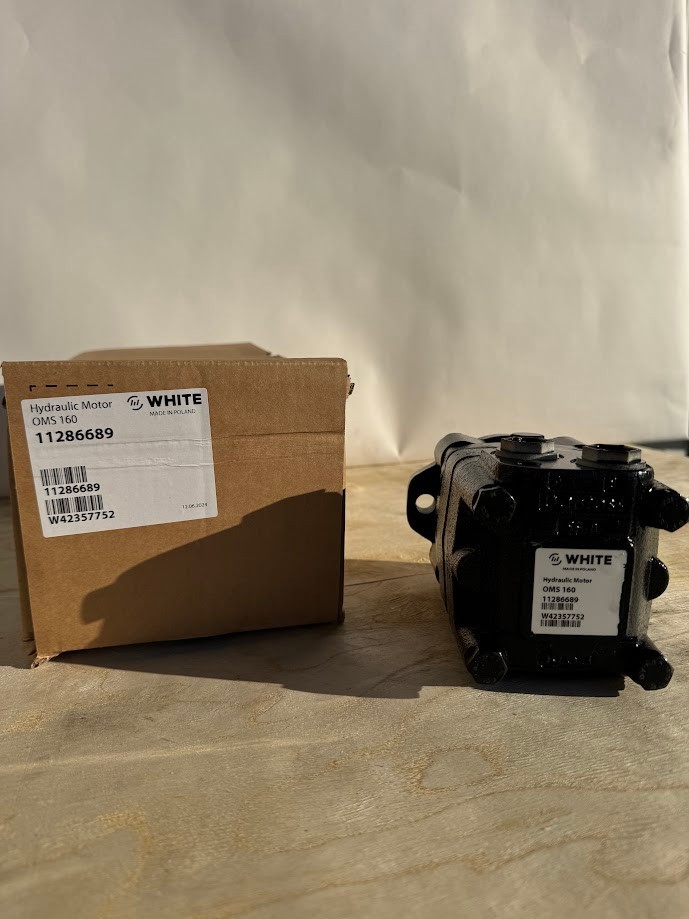

New genuine White OMS 160 hydraulic motor, part number 11286689, in the original White box. Surplus stock, never installed. Manufactured June 2024.
White Drive Motors & Steering makes the former Danfoss / Sauer-Danfoss OMS orbital motor line, and this motor has “Danfoss” cast into the housing. If you’re replacing a Danfoss or Sauer-Danfoss OMS 160, this is the same motor family from the same factory.
Configuration:
- Displacement: 160 cc (9.75 cu in/rev)
- Mounting: 2-bolt oval flange (A2 / SAE A style)
- Shaft: 1" 6-spline (SAE 6B)
- Ports: side ported, factory plugged
- Check valves built in
Performance (White catalog ratings):
- Max continuous torque: 3,190 lbf·in (360 Nm)
- Max intermittent torque: 3,980 lbf·in (450 Nm)
- Max continuous speed: 470 rpm
- Max continuous pressure drop: 3,050 psi (210 bar)
- Max continuous flow: 19.8 GPM (75 l/min)
- Weight: about 24 lb
