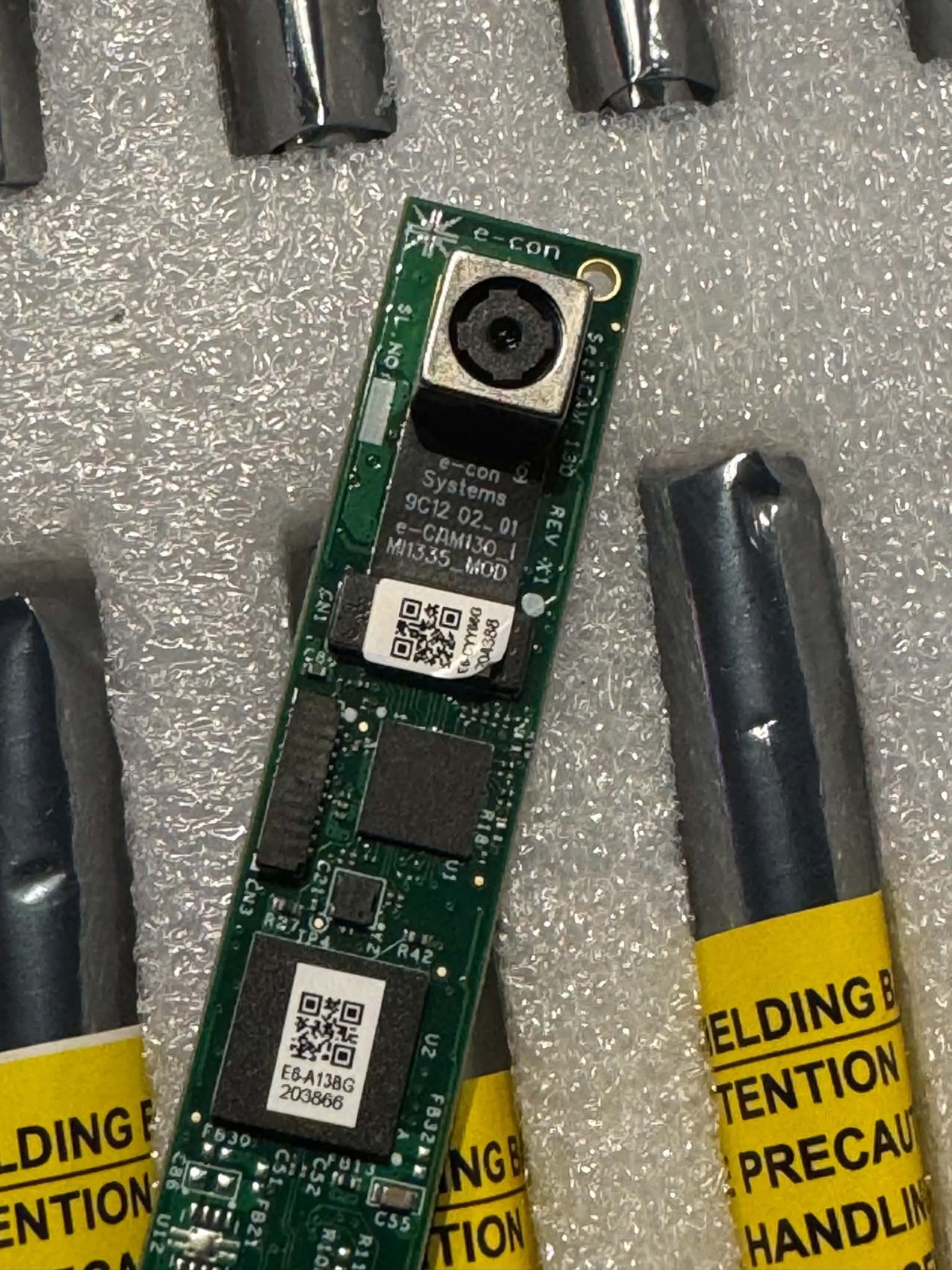

EXCELLENT VALUE — $99 SHIPPEDe-con Systems See3CAM_130 13MP 4K Autofocus Camera + Genuine Würth USB 3.1 Cable
This listing includes:
The included Würth cable is not a generic USB cable. It is a shielded 1-meter USB 3.1 Gen 2 / 10 Gbps Type-A to Type-C cable, MPN 632910731131, which typically sells for approximately $22–$27 by itself through major electronics distributors.
WHY THIS IS A GREAT VALUE
e-con Systems discontinued the original See3CAM_130 after its lens component reached end-of-life and now identifies the See3CAM_130E as the replacement model.
The newer See3CAM_130E currently costs approximately $219–$229 for a single unit, while e-con\'s advertised bulk pricing reaches approximately $99 per unit only at very large quantities.
This See3CAM_130 + genuine Würth cable bundle is only $99 with FREE shipping.
That makes it an affordable way to get into e-con\'s 13MP AR1335 autofocus USB camera platform without spending $200+ on the current replacement.
Important: This listing is for the original See3CAM_130, not the newer See3CAM_130E.
WHAT CAN YOU USE IT FOR?
The See3CAM_130 is substantially more capable and configurable than a typical consumer webcam. It is well suited to embedded-vision, industrial, scientific, development, and computer-vision applications.
Potential applications include:
Computer vision / OpenCV
Machine vision and automated inspection
Robotics and ROS / ROS2
NVIDIA Jetson and embedded-computing projects
Object detection, recognition, and tracking
UAV / drone imaging projects
Microscopy and laboratory imaging
Research and experimental imaging
Multi-camera capture systems
Triggered image-capture applications
Linux UVC / V4L2 development
Custom OEM imaging systems
At its core is a 13MP ON Semiconductor AR1335 CMOS sensor paired with autofocus optics and a dedicated onboard image signal processor.
The camera supports 4K UHD output at up to 30 FPS, USB 3.x connectivity, UVC compatibility, autofocus, automatic exposure and white balance, and onboard MJPEG processing.
The platform also provides GPIO / external-trigger functionality for more advanced imaging applications. Certain specialized triggering modes may depend on firmware configuration.
KEY FEATURES
13MP onsemi AR1335 CMOS sensor
4208 × 3120 maximum resolution
4K UHD 3840 × 2160 @ 30 FPS
1080p up to 60 FPS
720p up to 60 FPS
VGA up to 120 100 mm to infinity focus range
USB 3.1 Gen 1 Type-C interface
UVC compliant
Onboard ISP
Auto exposure
Auto white balance
MJPEG compression
iHDR support
GPIO / external hardware-trigger capability
USB 2.0 backward compatibility at reduced resolutions/frame onsemi AR1335 13MP CMOS
Maximum Resolution: 4208 × 3120
4K Video: 3840 × 2160 @ 30 FPS MJPEG
1080p: Up to 60 FPS
720p: Up to 60 FPS
VGA: Up to 120 FPS
Focus: Autofocus, approximately 100 mm to infinity
Field of View: 60.2° horizontal / 46.4° vertical / 74.4° diagonal
Interface: USB 3.1 Gen 1 Type-C
Shutter: Electronic rolling shutter with global-reset capability
HDR: iHDR support
SNR: 37 dB
Dynamic Range: Up to 69 dB
GPIO: 10-pin header with external-trigger support
Power: 5V / 370mA, approximately 1.85W maximum
Operating Temperature: -30°C to +70°C
Compliance: RoHS
The onboard ISP handles functions including auto exposure, auto white balance, autofocus, and MJPEG compression, reducing the amount of host-side processing required.
Because the camera is UVC compliant, it can operate as a standard USB imaging device on supported Windows and Linux systems and can be integrated with applications using V4L2, OpenCV, ROS, e-con software, and custom vision NEW e-con Systems See3CAM_130
Original e-con lens
Factory antistatic shielding bag
Cable
CONDITION / TESTING
I bench-tested sample cameras from this batch.
The tested units:
The actual camera you receive remains sealed, allowing you to perform your own incoming inspection.
Ships from the United States.
A strong option for computer vision, robotics, machine vision, microscopy, research, embedded systems, inspection applications, or anyone specifically looking for the discontinued original See3CAM_130.
$99.00 — CAMERA + GENUINE WÜRTH CABLE + FREE SHIPPING
