302-2 Engine Oil Pan Kit Low Profile For LS1 LS2 LS3 5.3L 5.7L 6.0L 6.2L For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

302-2 Engine Oil Pan Kit Low Profile For LS1 LS2 LS3 5.3L 5.7L 6.0L 6.2L:
$81.20

Fitment:

For LS Engine LS1 LS6 LS2 LS3 LS95.3L 5.7L 6.0L 6.2L 6.5L Motor

For Chevrolet Camaro 1967-1969For Pontiac Firebird 1967-1969For Chevrolet Nova 1968-1974For Chevrolet Ventura 1968-1974For Chevrolet Omega 1968-1974For F-body 1982-1992For G-body 1978-1987For A-body engine Low Profile cast aluminum engine oil pan

-Gen III/IV blocks

5.3 - 5.7 - 6.0 - 6.2 -6.5

-LS1 - LS2 - LS3

-Sump Style --- Wet

-Sump Location --- Rear

-Sump Depth --- 5.46"

-Maximum Stroke --- 3.62"

302-2 Engine Oil Pan Kit Low Profile For LS1 LS2 LS3 5.3L 5.7L 6.0L 6.2L

Fitment:

For LS Engine LS1 LS6 LS2 LS3 LS95.3L 5.7L 6.0L 6.2L 6.5L Motor

For Chevrolet Camaro 1967-1969
For Pontiac Firebird 1967-1969
For Chevrolet Nova 1968-1974
For Chevrolet Ventura 1968-1974
For Chevrolet Omega 1968-1974
For F-body 1982-1992
For G-body 1978-1987
For A-body engine Low Profile cast aluminum engine oil pan

-Gen III/IV blocks

5.3 - 5.7 - 6.0 - 6.2 -6.5

-LS1 - LS2 - LS3

-Sump Style --- Wet

-Sump Location --- Rear

-Sump Depth --- 5.46"

-Maximum Stroke --- 3.62"

-Oil Filter Location --- Stock

-Sump Oil Capacity --- 5.7 Quarts

-Total Oil Capacity --- 6.2 Quarts with Stock Filter

-Baffled --- Yes

-Windage Tray --- Not Included

-Designed for use with GM #12558253 windage tray, which must be altered to add clearance for the pick-up tube

Ideal for Camaro/Firebird ('67-'69), Nova/Apollo/Ventura/Omega ('82-'92), GM A-body ('64-'72), G-body ('78-'87), and F-body ('82-'92)

-Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application

-Fits most LS engines, except LS7 or LS9 dry sump applications

-Requires the use of LS3 style dipstick and tube: GM #12669528 and 12625031

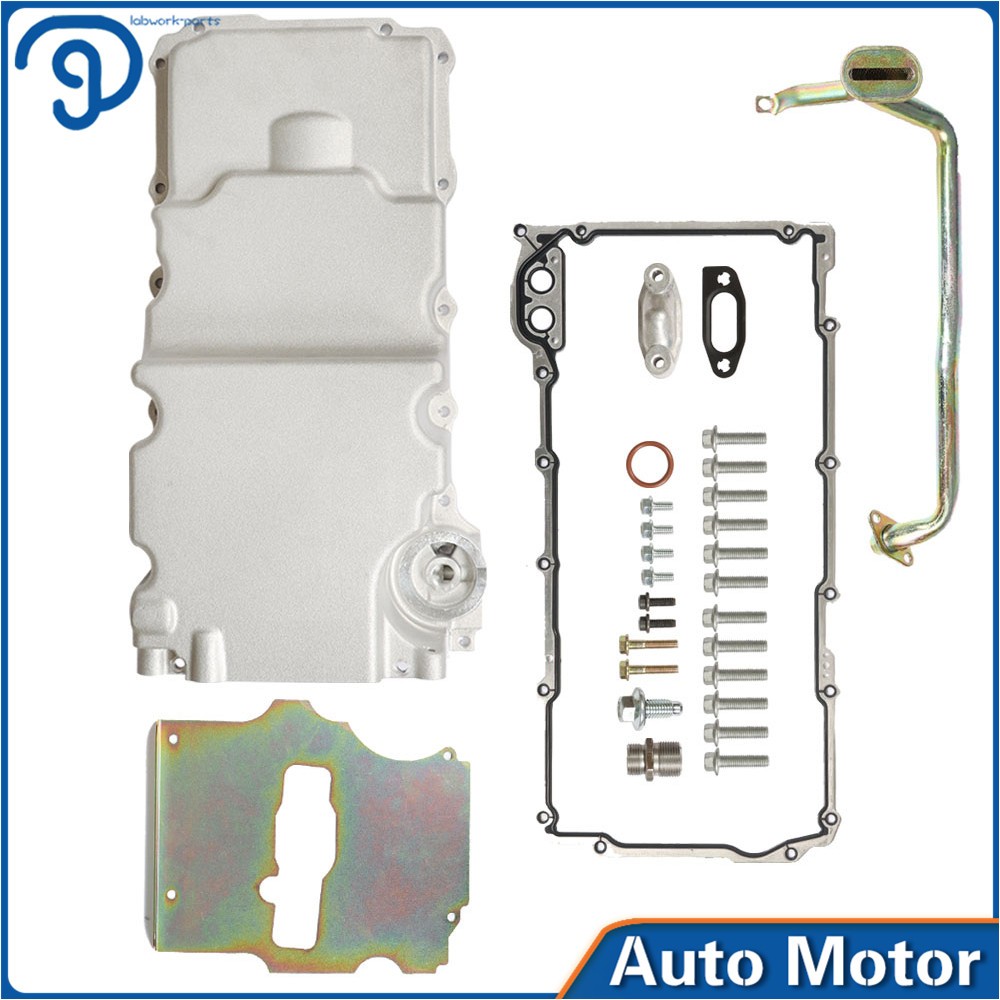

Package Include:

1*Oil Pan Gasket

1*Sump Baffle

1*Oil Pickup Tube

1*Drain Plug

1*Oil Filter Stud

1*Oil Passage Cover

1*Mounting Hardware

W/o Product Instruction

Item SpecificsCountry of Origin United StatesInterchange Part Number 302-2Material Aluminum castFinish Satin aluminumManufacturer Part Number LP618408KSBrand labworkFitment Type Performance/CustomMounting Hardware Included YesManufacturer Warranty 1 YearType Oil PanOE/OEM Part Number 302-2Color Silver
