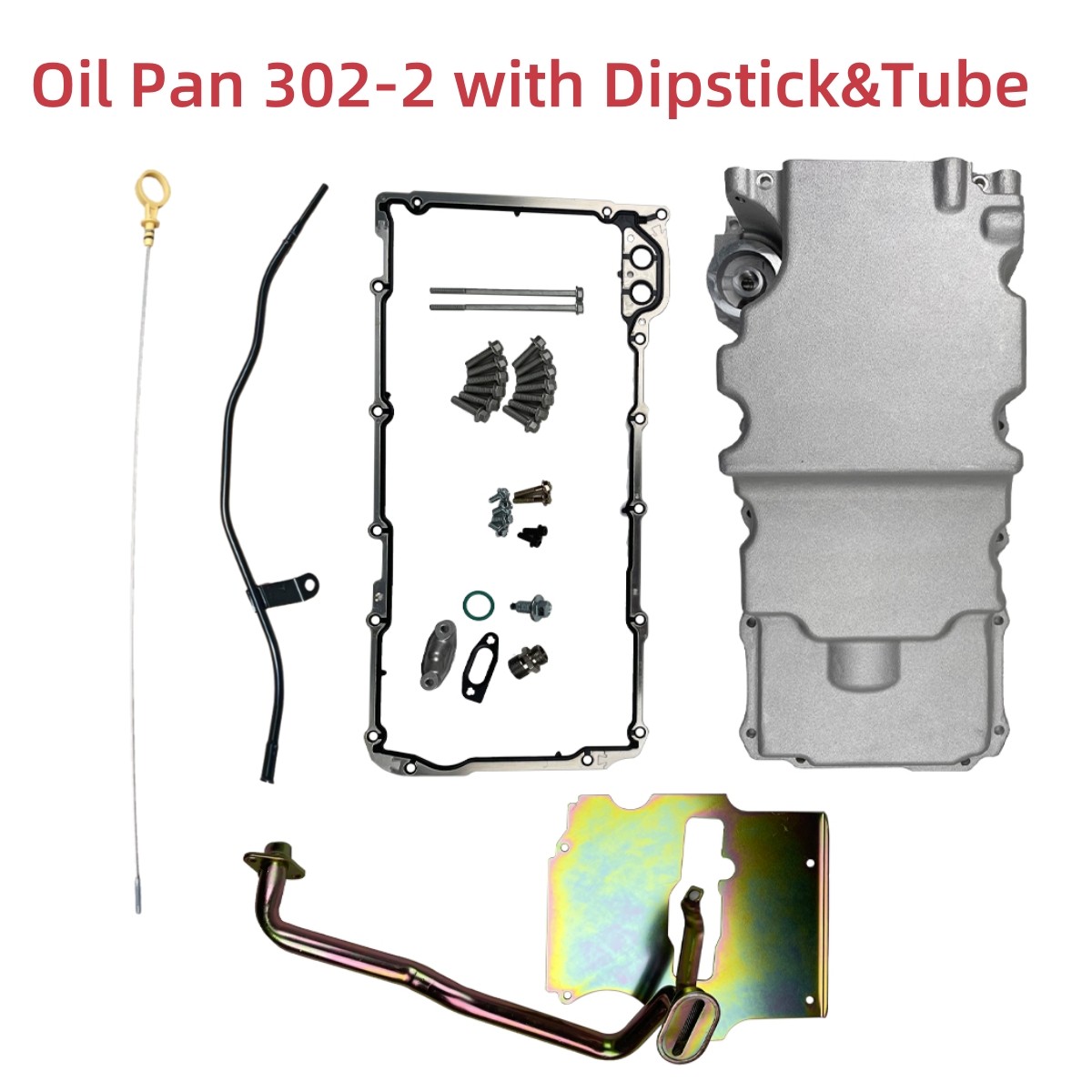

302-2 Engine Oil Pan Kit Low Profile fits LS1 LS2 LS3 4.8L 6.0L 6.2L 5.3L III/IV blocks
Fits for LS1/LS2/LS3 4.8 5.3 5.7 6.0 6.2
Designed for use with GM #12558253 windage tray, which must be altered to add clearance for the pick-up tube
Ideal for Camaro/Firebird ('67-'69), Nova/Apollo/Ventura/Omega ('82-'92), GM A-body ('64-'72), G-body ('78-'87), and F-body ('82-'92) applications
Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application
Fits most LS engines, except LS7 or LS9 dry sump applications
Requires the use of LS3 style dipstick and tube: GM #12669528 and 12625031(INCLUDED), respectively takes AC Delco PF48/PF48E, K&N HP-1017, or equivalent oil filter
oil pan gasket (part #: 12612350 Style: Wet
Sump Location: Rear
Sump Depth: 5.46"
Maximum Stroke: 3.62"
Oil Filter Location: Stock
Sump Oil Capacity: 5.7 Quarts
Total Oil Capacity: 6.2 Quarts with Stock Filter
Baffled: Yes
Windage Tray: Not Included
Package Includes:
Oil Pan Gasket
Oil Pickup Tube
Oil Dipstick
Oil Tube
Drain Plug
Oil Filter Stud
Oil Passage Cover
Mounting Hardware
