Olide Automatic Glass Door for Swing Opening Frameless Glass Door,Touchless Electric Glass Door for Glass Office Swing French Door with 2pcs Wired Metal Touchless Hand Sensor Switch

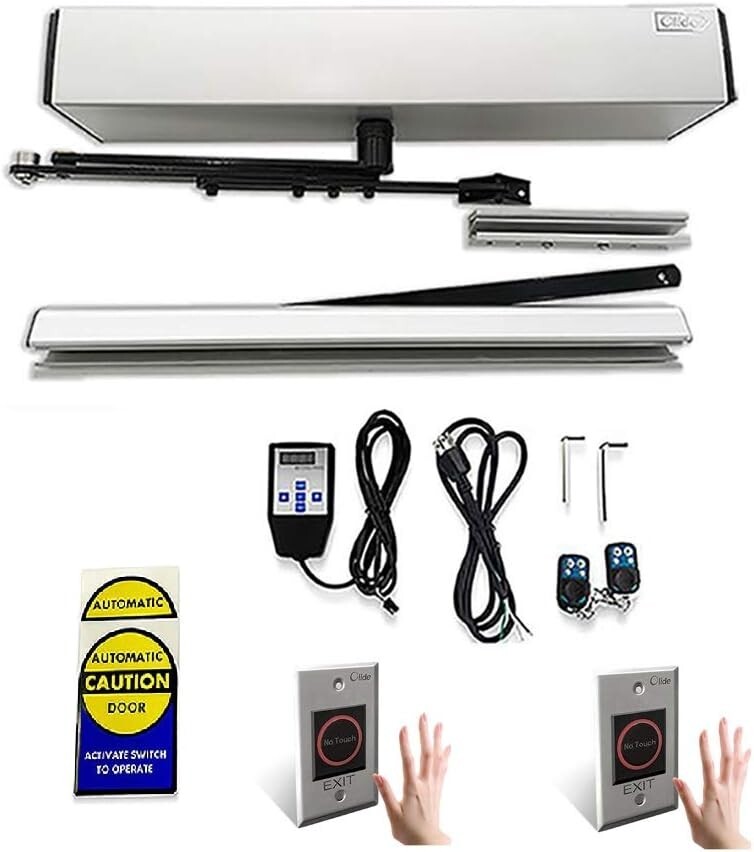

One complete unit automatic glass door opener Includes
- 2 pcs 100% Wireless and not hardwired remotes,working frequency is 433.92MHz
- 2 pcs wired no-touch open metal hand sensor 25A
- 1pcs push arm for outswing glass door and 1pcs push arm glass clamp
- 1pcs pull arm for inswing glass frameless door
- Parameters adjusting hand programmer
- 2 pcs auto door attention stickers
- Screw and screw anchors
- Black and white manual
- US plug and cords
The electric glass door Olide-120B is used for frameless glass swing door,automatic glass door operator that is activated by wired touchless hand sensors.
This glass swing opening auto system operates in both automatic and manual modes,In manual mode, door opens with very little pressure and closes slowly providing easy operation for handicapped or pedestrians
With advanced wide voltage technique,it makes the glass auto door Olide-120B highly adapt to voltage fluctuations between 110-220VAC +/-10%, it can be used in areas almost of the world whether it is a peak in urban power or insufficient power supply in remote areas.More energy saving and durable than ordinary single input voltage.
The Olide-120B is a glass door closer kit for both inswinging and outswinging doors and two touch free hand sensor as exit buttons for automatic doors. This glass door actuator is designed to secure your door and have the capabilities of automatically and manually opening and closing it as well. A simple yet secure system for areas such as offices, hospitals, elderly homes, banks, commercial locations, and much more.
Program can be easily done via handheld programmer,lots of parameters can be adjusted and multi-functions are available via easy program&debugAlways Keeping Door Open Available via adjust parameter\"hold-open time\"to\"--\"Integrated High-Efficiency Working Controller and Wide Voltage, Durable Motor
Technical Parameter
- Swing application: one-way inswing or outswing open, single leaf and double leaf standard doors
- Voltage: 110-220 VAC +/-10%
- Motor: DC 24V brushless motor
- Power Consumption: 50W
- Opening Time: 3-7 sec. @ 90 degrees
- Hold Open Time: 1-30 sec. Adjustable
- Max. Door Frame Depth:200mm / 7.87\"(the data is only applicable to work with push arm)
- Door Width: Max. 1200mm / 47.2\" Min. 660mm / 26\"
- Max. Opening Angle:120 degrees
- Environment Temperature: -20C to 50C -4F to 122F
- Operation noise: Less than 55db
- Opener size: style=\"box-sizing: border-box; list-style: disc; overflow-wrap: break-word; margin: 0px;\">Opener weight:11kg/ 24 LBS
More Details about Accessory
Wireless FOB Keys
- The remotes that come in this kit are wireless and not hardwire
- The remotes working frequency is 315MHz
- You can add up to 15 wireless devices per automatic door opener
Handheld Programmer for Olide-120B
- Please plug into Olide-120B to adjust parameters such as closing force,locking mode,etc
- If shows Err03 on the display,please plug and re-plug the handheld programmer with power on,it will disappear
Hardwired Touch Free Metal Hand Sensor 25A
- Type:Hardwired touchless stainless steel hand sensor switch
- Connection input/output:NO/NC/COM
- Installation:Embedded installation
